Accessories & Consumables
-

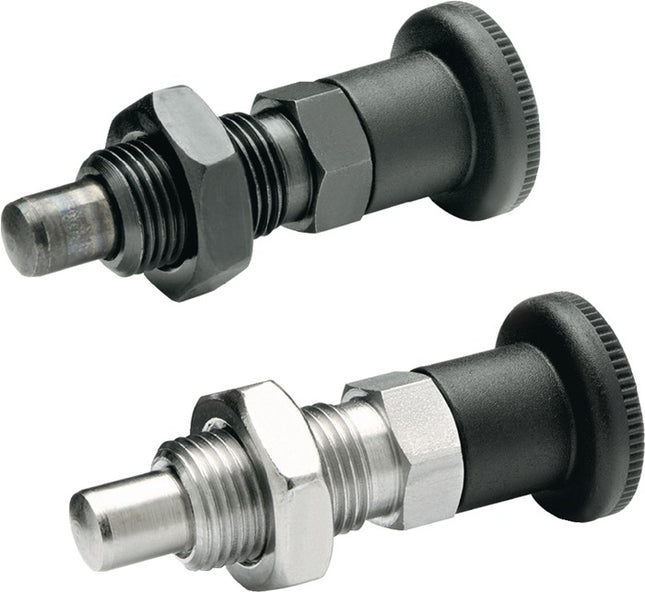

GANTER GANTER indexing plunger GN 817 d1 8 mm d2 M 16 x 1.5 mm l1 12 mm ( 4601001432 )
Mon, 09/29/2025
Scope of Delivery: - Indexing plunger GN 817 d1 8 mm d2 M 16 x 1.5 mm l1 12 mm Product Description: Indexing plungers are used when the indexing pin should not protrude temporarily. For this purpose, the knob is rotated by 90° after the pin has been retracted - the knob is held in this position by a locking notch - knob plastic thermoplastic (polyamide PA) - black, matt - cannot be removed other versions on request Technical Data: - d4: M 6mm - k: 24mm - l4: 8mm - l3: 26mm - l5: 8.5mm - l2: 58mm - l1: 12mm - d1: 8mm - d5: 10mm - d2: M 16 x 1.5mm - d3: 28mm - l6: 4mmFor commercial use, please observe the building regulations!
CHF 106.68
-

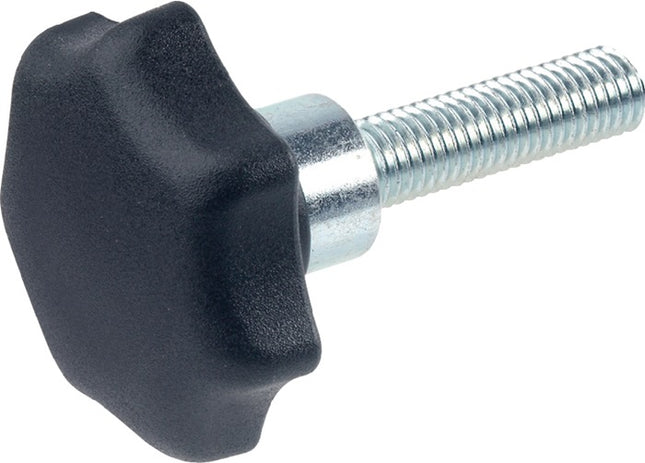

GANTER GANTER star knob GN 6336.4 Star knob screw ( 4601000899 )
Mon, 09/29/2025
Scope of Delivery: - Star knob GN 6336.4 Star knob screw Product Description: if clamping is to take place on the contact surface of the star knob, the TE and SG shapes are preferable - design and dimensions of the star knobs: DIN 6336 KT - plastic (KT) other versions on request Technical Data: - d1: 63mm - d2: M 12mm - l: 50mmFor commercial use, please observe the building regulations!
CHF 40.54
-
GANTER GANTER star knob GN 6336.4 Star knob screw ( 4601000891 )
Mon, 09/29/2025
Scope of Delivery: - Star knob GN 6336.4 Star knob screw Product Description: if clamping is to take place on the contact surface of the star knob, the TE and SG shapes are preferable - design and dimensions of the star knobs: DIN 6336 KT - plastic (KT) other versions on request Technical Data: - d1: 50mm - d2: M 10mm - l: 40mmFor commercial use, please observe the building regulations!
CHF 44.30
-
GANTER GANTER star knob GN 6336.4 Star knob screw ( 4601000881 )
Mon, 09/29/2025
Scope of Delivery: - Star knob GN 6336.4 Star knob screw Product Description: if clamping is to take place on the contact surface of the star knob, the TE and SG shapes are preferable - design and dimensions of the star knobs: DIN 6336 KT - plastic (KT) other versions on request Technical Data: - d1: 40mm - d2: M 8mm - l: 30mmFor commercial use, please observe the building regulations!
CHF 29.00
-
GANTER GANTER star knob GN 6336.4 Star knob screw ( 4601000873 )
Mon, 09/29/2025
Scope of Delivery: - Star knob GN 6336.4 Star knob screw Product Description: if clamping is to take place on the contact surface of the star knob, the TE and SG shapes are preferable - design and dimensions of the star knobs: DIN 6336 KT - plastic (KT) other versions on request Technical Data: - d1: 32mm - d2: M 6mm - l: 25mmFor commercial use, please observe the building regulations!
CHF 22.93
-

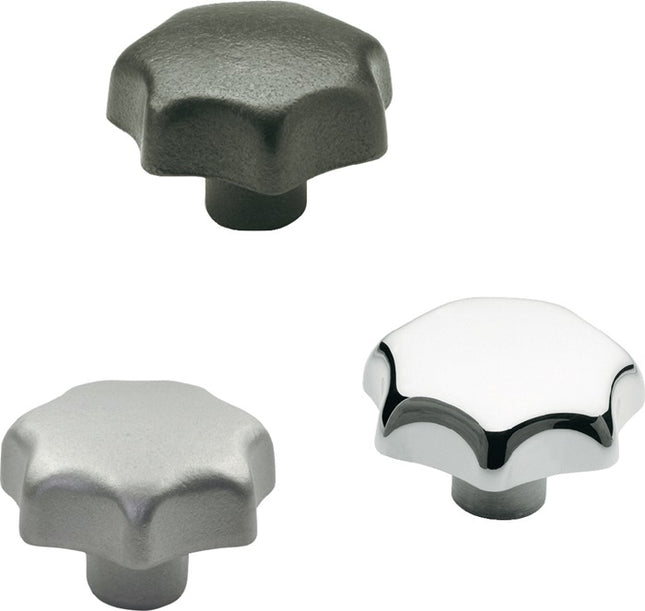

GANTER GANTER star knob DIN 6336 with threaded bush ( 4601000862 )
Mon, 09/29/2025
Scope of Delivery: - Star knob DIN 6336 with threaded bush Product Description: RoHS-compliant Other versions on request Technical Data: - h2: 21mm - t2: 21mm - h3 min.: 21mm - h1: 40mm - d1: 63mm - d2: M 12mm - d3: 26mmFor commercial use, please observe the building regulations!
CHF 33.13
-
GANTER GANTER star knob DIN 6336 with threaded bush ( 4601000859 )
Mon, 09/29/2025
Scope of Delivery: - Star knob DIN 6336 with threaded bush Product Description: RoHS-compliant Other versions on request Technical Data: - h2: 17mm - t2: 17mm - h3 min.: 17mm - h1: 32mm - d1: 50mm - d2: M 10mm - d3: 22mmFor commercial use, please observe the building regulations!
CHF 46.21
-
GANTER GANTER star knob DIN 6336 with threaded bush ( 4601000858 )
Mon, 09/29/2025
Scope of Delivery: - Star knob DIN 6336 with threaded bush Product Description: RoHS-compliant Other versions on request Technical Data: - h2: 13mm - t2: 13mm - h3 min.: 13mm - h1: 25mm - d1: 40mm - d2: M 8mm - d3: 18mmFor commercial use, please observe the building regulations!
CHF 32.83
-
GANTER GANTER star knob DIN 6336 with threaded bush ( 4601000856 )
Mon, 09/29/2025
Scope of Delivery: - Star knob DIN 6336 with threaded bush Product Description: RoHS-compliant Other versions on request Technical Data: - h2: 10mm - t2: 10mm - h3 min.: 10mm - h1: 20mm - d1: 32mm - d2: M 6mm - d3: 14mmFor commercial use, please observe the building regulations!
CHF 28.36
-

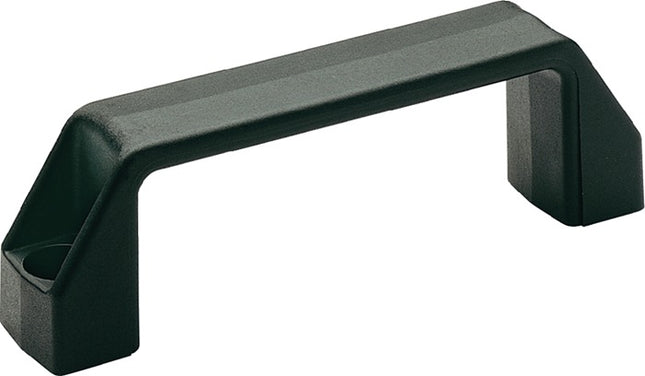

GANTER GANTER bow handle GN 528 l1 117 ±1 mm d1 8.5 mm ( 4601000170 )
Mon, 09/29/2025
Scope of Delivery: - Bow handle GN 528 l1 117 ±1 mm d1 8.5 mm Product Description: PlasticPA thermoplastic (polyamide) - glass fibre reinforced - temperature-resistant up to 150 °C - black, RAL 9005SW other versions on request Technical Data: - h2: 6.5mm - l3: 93mm - b: 26mm - l2: 137mm - l1: 117 ±1mm - h1: 41mm - d1: 8.5mm - s: 7mm - d2: 13.5mm - t: 8.5mmFor commercial use, please observe the building regulations!
CHF 35.26
-

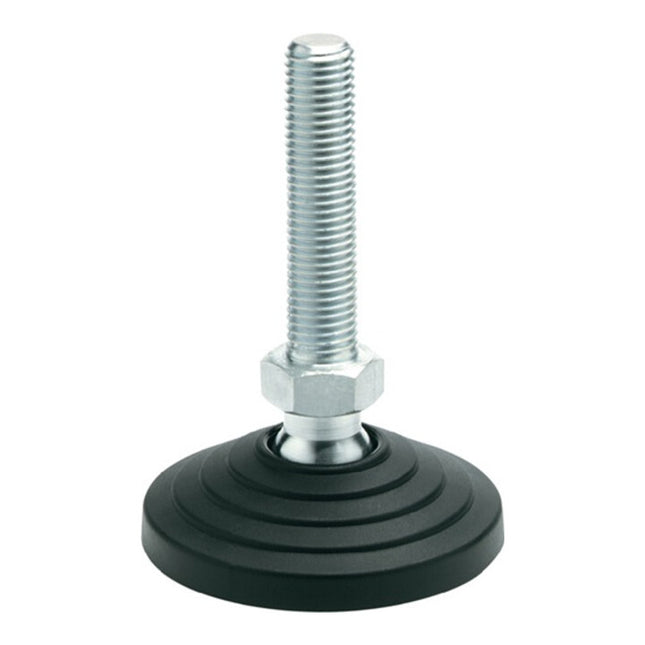

GANTER GANTER plastic articulated foot GN 344 d1 80 mm, d2 M 12 mm l1 98 mm ( 4601002612 )
Mon, 09/29/2025
Scope of Delivery: - Plastic articulated foot GN 344 d1 80 mm, d2 M 12 mm l1 98 mm Product Description: with nut, with rubber pad - The static load capacity values given in the table are guide values; if these are exceeded, permanent deformation or breakage of the plastic disc may occur The values given in the table for static load-bearing capacity are guide values which, if exceeded, can lead to permanent deformation or breakage of the plastic plate - Design: Plastic base Thermoplastic (polyamide PA), glass fibre reinforced, black, matt, temperature-resistant up to 100 °C - Adjusting spindle Galvanised steel, blue passivated - Strength class 5.8 - Hexagon nut ISO 4032: Galvanised steel, blue passivated - Rubber pad (NBR): 70 Shore A, black Other designs on request Technical Data: - l3: 24mm - l2: 33mm - l1: 98mm - d1: 80mm - d2: M 12mmFor commercial use, please observe the building regulations!
CHF 16.72
-
GANTER GANTER plastic articulated foot GN 344 d1 60 mm, d2 M 10 mm l1 98 mm ( 4601002585 )
Mon, 09/29/2025
Scope of Delivery: - Plastic articulated foot GN 344 d1 60 mm, d2 M 10 mm l1 98 mm Product Description: with nut, with rubber pad - The static load capacity values given in the table are guide values; if these are exceeded, permanent deformation or breakage of the plastic disc may occur The values given in the table for static load-bearing capacity are guide values which, if exceeded, can lead to permanent deformation or breakage of the plastic plate - Design: Plastic base Thermoplastic (polyamide PA), glass fibre reinforced, black, matt, temperature-resistant up to 100 °C - Adjusting spindle Galvanised steel, blue passivated - Strength class 5.8 - Hexagon nut ISO 4032: Galvanised steel, blue passivated - Rubber pad (NBR): 70 Shore A, black Other designs on request Technical Data: - l3: 24mm - l2: 33mm - l1: 98mm - d1: 60mm - d2: M 10mmFor commercial use, please observe the building regulations!
CHF 15.64
