Accessories & Consumables
-

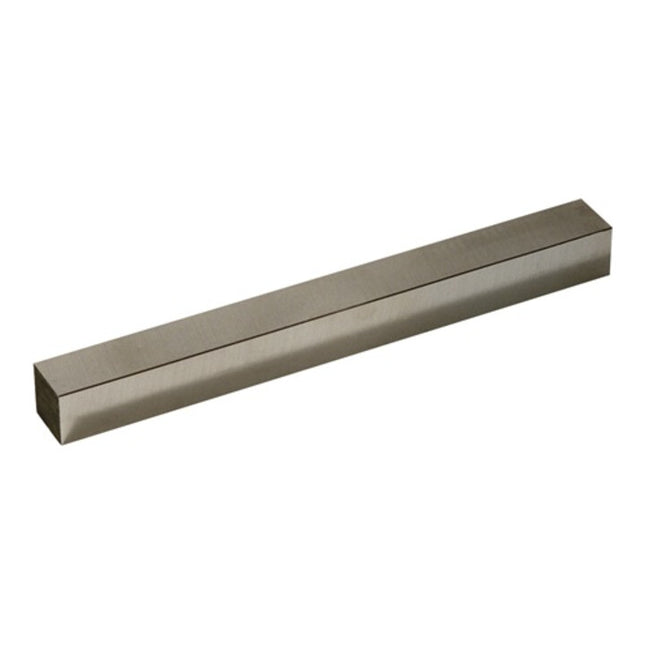

WILKE WILKE rotating ring DIN 4964 form B square width 4 x 4 mm ( 4118415028 )
Scope of Delivery: - Turning ring DIN 4964 form B square width 4 x 4 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 - shape B: square - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - L: 80mm - B: 4 x 4mmFor commercial use, please observe the building regulations!
-
WILKE WILKE rotating ring DIN 4964 form A round Ø 8 mm ( 4118401078 )
Mon, 09/29/2025
Scope of Delivery: - Swivel DIN 4964 Form A round Ø 8 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 shape A: round - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - diameter tolerance: h8 length tolerance: +/- 2 mm Technical Data: - Length L: 100mm - Ø D: 8mmFor commercial use, please observe the building regulations!
CHF 16.95
-
GANTER GANTER indexing plunger GN 817 d1 6 mm d2 M 12 x 1.5 mm l1 6 mm ( 4601001424 )
Mon, 09/29/2025
Scope of Delivery: - Indexing plunger GN 817 d1 6 mm d2 M 12 x 1.5 mm l1 6 mm Product Description: Detent pins are used when the detent pin should not protrude temporarily. For this purpose, the knob is rotated by 90° after the pin has been retracted - the knob is held in this position by a locking notch - knob plastic thermoplastic (polyamide PA) - black, matt - cannot be removed other versions on request Technical Data: - d4: M 5mm - k: 20mm - l4: 6mm - l3: 22mm - l5: 7mm - l2: 48mm - l1: 6mm - d1: 6mm - d5: 9mm - d2: M 12 x 1.5mm - d3: 23mm - l6: 3.5mmFor commercial use, please observe the building regulations!
CHF 83.71
-

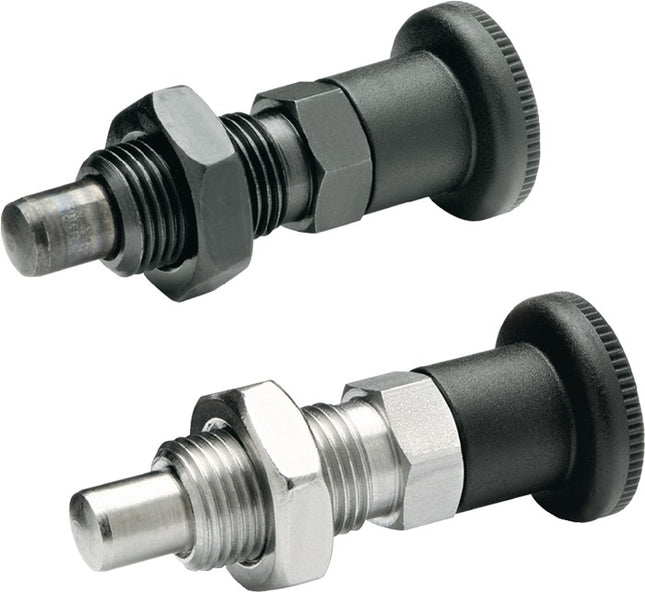

GANTER GANTER indexing plunger GN 817 d1 10 mm d2 M 16 x 1.5 mm l1 12 mm ( 4601001396 )
Mon, 09/29/2025
Scope of Delivery: - Indexing plunger GN 817 d1 10 mm d2 M 16 x 1.5 mm l1 12 mm Product Description: Detent pins are used when the detent pin should not protrude temporarily. For this purpose, the knob is rotated by 90° after the pin has been retracted - the knob is held in this position by a locking notch - knob plastic thermoplastic (polyamide PA) - black, matt - cannot be removed other versions on request Technical Data: - d4: M 6mm - k: 24mm - l4: 8mm - l3: 26mm - l5: 8.5mm - l2: 58mm - l1: 12mm - d1: 10mm - d5: 10mm - d2: M 16 x 1.5mm - d3: 28mm - l6: 4mmFor commercial use, please observe the building regulations!
CHF 59.08
-

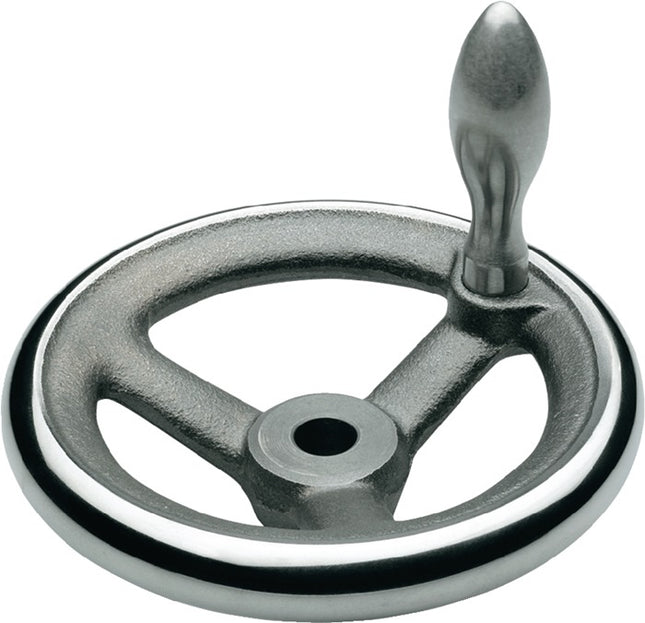

GANTER GANTER handwheel GN 950 b 22 mm d1 200 mm d2 20 mm ( 4601000254 )
Mon, 09/29/2025
Scope of Delivery: - Handwheel GN 950 b 22 mm d1 200 mm d2 20 mm Product Description: Handwheels DIN 950 are provided with steel ball handles in the cast iron version - cast iron GG - hub machined - wheel rim turned and polished - concentricity and axial run-out deviation of the wheel rim other versions on request Technical Data: - d4: M 10mm - b: 22mm - l2: 45mm - l1: 24mm - d1: 200mm - d2: 20mm - d3: 38mmFor commercial use, please observe the building regulations!
CHF 65.00
-
WILKE WILKE rotating ring DIN 4964 form A round Ø 10 mm ( 4118401098 )
Scope of Delivery: - Swivel DIN 4964 Form A round Ø 10 mm Product Description: HSS-EW9Co10 Material 1.3207 - DIN 4964 Form A: round - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - diameter tolerance: h8 length tolerance: +/- 2 mm Technical Data: - Length L: 100mm - Ø D: 10mmFor commercial use, please observe the building regulations!
-

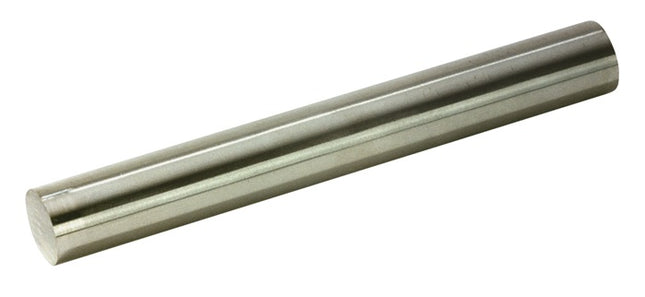

WILKE WILKE rotating ring DIN 4964 form A round Ø 8 mm ( 4118401088 )
Mon, 09/29/2025
Scope of Delivery: - Swivel DIN 4964 Form A round Ø 8 mm Product Description: HSS-EW9Co10 Material 1.3207 - DIN 4964 Form A: round - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - diameter tolerance: h8 length tolerance: +/- 2 mm Technical Data: - Length L: 160mm - Ø D: 8mmFor commercial use, please observe the building regulations!
CHF 22.69
-
GANTER GANTER bow handle GN 565 l 120 ± 0.25 mm t min. 10 mm h 49 mm ( 4601000151 )
Mon, 09/29/2025
Scope of Delivery: - Bow handle GN 565 l 120 ± 0.25 mm t min. 10 mm h 49 mm Product Description: made of drawn aluminium profile - they are characterised by stability and ergonomic design - due to the manufacturing process (bending), special lengths can be supplied in comparatively small quantities further versions on request Technical Data: - a: 13mm - d: M 6mm - r: 13mm - b: 20mm - l: 120 ± 0.25mm - h: 49mmFor commercial use, please observe the building regulations!
CHF 14.41
-
GANTER GANTER handwheel GN 950 b 15 mm d1 100 mm d2 10 mm ( 4601000242 )
Mon, 09/29/2025
Scope of Delivery: - Handwheel GN 950 b 15 mm d1 100 mm d2 10 mm Product Description: Handwheels DIN 950 are provided with steel ball handles in the cast iron version - cast iron GG - hub machined - wheel rim turned and polished - concentricity and axial run-out deviation of the wheel rim other versions on request Technical Data: - d4: M 6mm - b: 15mm - l2: 33mm - l1: 17mm - d1: 100mm - d2: 10mm - d3: 26mmFor commercial use, please observe the building regulations!
CHF 40.59
-

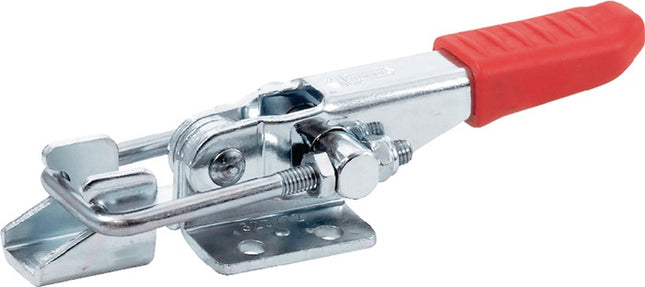

GANTER GANTER GN 851 steel ( 4601001914 ) fastener tensioner
Mon, 09/29/2025
Scope of Delivery: - Closure tensioner GN 851 steel Product Description: the clamping yoke can be adjusted within the adjustment range - in the clamping position, the clamping yoke and clamping arm are parallel to the fastening plane of the locking clamp other versions on request Technical Data: - l2 min.: 23mm - a: 24mm - h2: 36mm - m1: 38mm - r: 74mm - b1: 60mm - m5: 19mm - m3: 41,5mm - l1: 220mm - b2: 54mm - b4: 38mm - h1: 42mm - d1: M 8mm - s: 3.5mm - m4: 9.5mm - d2: 8.5mm - b3: 38mm - m2: 9.5mm - b5: 26mmFor commercial use, please observe the building regulations!
CHF 50.96
-
GANTER GANTER GN 851 steel ( 4601001912 ) fastener tensioner
Mon, 09/29/2025
Scope of Delivery: - Closure tensioner GN 851 steel Product Description: the clamping yoke can be adjusted within the adjustment range - in the clamping position, the clamping yoke and clamping arm are parallel to the fastening plane of the locking clamp other versions on request Technical Data: - l2 min.: 19mm - a: 16mm - h2: 25mm - m1: 32mm - r: 57mm - b1: 40mm - m5: 14mm - m3: 19mm - l1: 152mm - b2: 44mm - b4: 28mm - h1: 30mm - d1: M 6mm - s: 3mm - m4: 7mm - d2: 6.5mm - b3: 32mm - m2: 10.5mm - b5: 22mmFor commercial use, please observe the building regulations!
CHF 34.88
-
GANTER GANTER GN 851 steel ( 4601001910 ) fastener tensioner
Mon, 09/29/2025
Scope of Delivery: - Closure tensioner GN 851 steel Product Description: the clamping yoke can be adjusted within the adjustment range - in the clamping position, the clamping yoke and clamping arm are parallel to the fastening plane of the locking clamp other versions on request Technical Data: - l2 min.: 11mm - a: 12mm - h2: 18mm - m1: 19mm - r: 37mm - b1: 26mm - m5: 10mm - m3: 16mm - l1: 98mm - b2: 28mm - b4: 20mm - h1: 26mm - d1: M 4mm - s: 2mm - m4: 5mm - d2: 4.3mm - b3: 21mm - m2: 5mm - b5: 14mmFor commercial use, please observe the building regulations!
CHF 26.12
