Accessories & Consumables
-

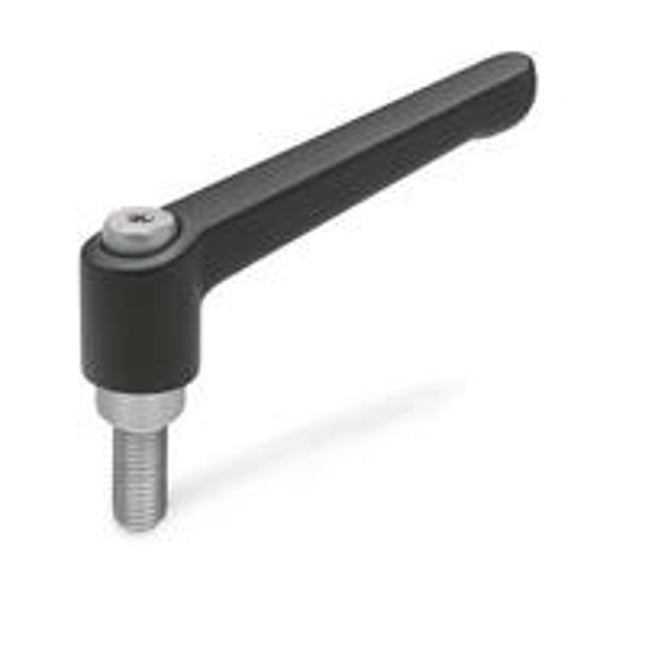

GANTER GANTER Adjustable clamping lever GN 300.1 d1 M 8 mm ( 4601000448 )
Mon, 09/29/2025
Scope of Delivery: - Adjustable clamping lever GN 300.1 d1 M 8 mm Product Description: adjustable clamping levers GN 300.1 are preferably used when the clamping range is limited or a specific clamping position is required - the threaded insert is detachably connected to the handle by a serration - by lifting (pulling) the handle, the serration is released and the clamping lever can be swivelled into the most favourable clamping position - when released, the handle engages again automatically - handle body - die-cast zinc - threaded bush and retaining screw : stainless steel, 1.4305 other dimensions and colours available on request Technical Data: - d4: 17.5mm - h2: 6.5mm - h4: 4mm - l2: 50mm - l1: 63mm - h1: 31mm - d1: M 8mm - d3: 13,5mm - h3: 45mmFor commercial use, please observe the building regulations!
CHF 16.79
-
GANTER GANTER Adjustable clamping lever GN 300.1 d1 M 8 mm ( 4601000443 )
Mon, 09/29/2025
Scope of Delivery: - Adjustable clamping lever GN 300.1 d1 M 8 mm Product Description: adjustable clamping levers GN 300.1 are preferably used when the clamping range is limited or a specific clamping position is required - the threaded insert is detachably connected to the handle by a serration - by lifting (pulling) the handle, the serration is released and the clamping lever can be swivelled into the most favourable clamping position - when released, the handle engages again automatically - handle body - die-cast zinc - threaded bush and retaining screw : stainless steel, 1.4305 other dimensions and colours available on request Technical Data: - d4: 17.5mm - h2: 6.5mm - h4: 4mm - l2: 16mm - l1: 63mm - h1: 31mm - d1: M 8mm - d3: 13,5mm - h3: 45mmFor commercial use, please observe the building regulations!
CHF 15.27
-

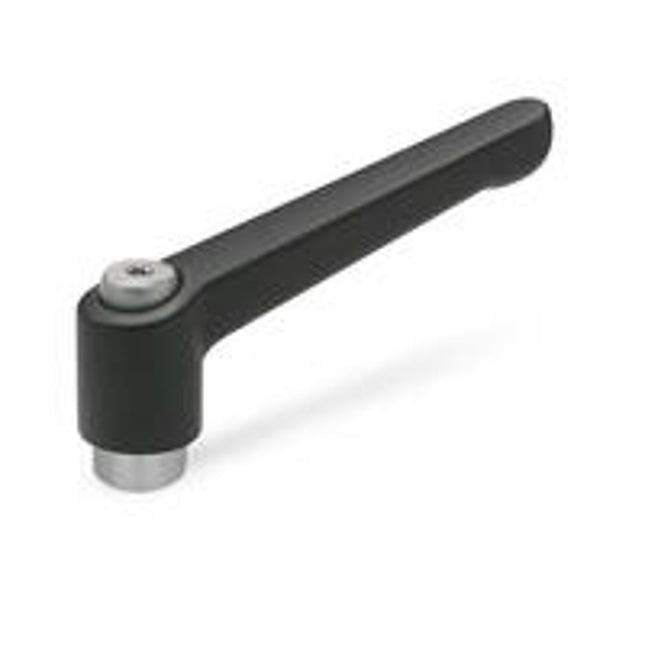

GANTER GANTER Verstellbarer Klemmhebel GN 300.1 d1 M 6 mm ( 4601000442 )
Lieferumfang:Verstellbarer Klemmhebel GN 300.1 d1 M 6 mmProduktbeschreibung:verstellbare Klemmhebel GN 300.1 sind vorzugsweise dann einzusetzen, wenn der Spannbereich begrenzt oder eine bestimmte Spannstellung erwünscht ist · der Gewindeeinsatz ist durch eine Kerbverzahnung mit dem Griff lösbar verbunden · durch Anheben (Ziehen) des Griffes wird die Kerbverzahnung frei und der Klemmhebel kann in die günstigste Spannposition geschwenkt werden · beim ,,Loslassen’’ rastet der Griff selbsttätig wieder ein · Griffkörper · Zink-Druckguss · Gewindebuchse und Halteschraube : Edelstahl nichtrostend, 1.4305 weitere Abmessungen und Farbvarianten auf Anfrage lieferbarTechnische Daten: d4: 17,5mm h2: 6,5mm h4: 4mm l2: -mm l1: 63mm h1: 31mm d1: M 6mm d3: 13,5mm h3: 45mm
-
GANTER GANTER Verstellbarer Klemmhebel GN 300.1 d1 M 6 mm ( 4601000434 )
Lieferumfang:Verstellbarer Klemmhebel GN 300.1 d1 M 6 mmProduktbeschreibung:verstellbare Klemmhebel GN 300.1 sind vorzugsweise dann einzusetzen, wenn der Spannbereich begrenzt oder eine bestimmte Spannstellung erwünscht ist · der Gewindeeinsatz ist durch eine Kerbverzahnung mit dem Griff lösbar verbunden · durch Anheben (Ziehen) des Griffes wird die Kerbverzahnung frei und der Klemmhebel kann in die günstigste Spannposition geschwenkt werden · beim ,,Loslassen’’ rastet der Griff selbsttätig wieder ein · Griffkörper · Zink-Druckguss · Gewindebuchse und Halteschraube : Edelstahl nichtrostend, 1.4305 weitere Abmessungen und Farbvarianten auf Anfrage lieferbarTechnische Daten: d4: 13mm h2: 4mm h4: 3,5mm l2: -mm l1: 45mm h1: 24,5mm d1: M 6mm d3: 10mm h3: 34mm
-
GANTER GANTER Verstellbarer Klemmhebel GN 300.1 d1 M 6 mm ( 4601000431 )
Lieferumfang:Verstellbarer Klemmhebel GN 300.1 d1 M 6 mmProduktbeschreibung:verstellbare Klemmhebel GN 300.1 sind vorzugsweise dann einzusetzen, wenn der Spannbereich begrenzt oder eine bestimmte Spannstellung erwünscht ist · der Gewindeeinsatz ist durch eine Kerbverzahnung mit dem Griff lösbar verbunden · durch Anheben (Ziehen) des Griffes wird die Kerbverzahnung frei und der Klemmhebel kann in die günstigste Spannposition geschwenkt werden · beim ,,Loslassen’’ rastet der Griff selbsttätig wieder ein · Griffkörper · Zink-Druckguss · Gewindebuchse und Halteschraube : Edelstahl nichtrostend, 1.4305 weitere Abmessungen und Farbvarianten auf Anfrage lieferbarTechnische Daten: d4: 13mm h2: 4mm h4: 3,5mm l2: 32mm l1: 45mm h1: 24,5mm d1: M 6mm d3: 10mm h3: 34mm
-
GANTER GANTER Adjustable clamping lever GN 300.1 d1 M 16 mm ( 4601000379 )
Mon, 09/29/2025
Scope of Delivery: - Adjustable clamping lever GN 300.1 d1 M 16 mm Product Description: adjustable clamping levers GN 300.1 are preferably used when the clamping range is limited or a specific clamping position is required - the threaded insert is detachably connected to the handle by a serration - by lifting (pulling) the handle, the serration is released and the clamping lever can be swivelled into the most favourable clamping position - when released, the handle engages again automatically - handle body - die-cast zinc - threaded bush and retaining screw : stainless steel, 1.4305 other dimensions and colours available on request Technical Data: - d4: 30mm - h2: 12mm - h4: 5mm - l2: 32mm - l1: 108mm - h1: 50.5mm - d1: M 16mm - d3: 23mm - h3: 75mmFor commercial use, please observe the building regulations!
CHF 27.18
-
WILKE WILKE rotating ring DIN 4964 shape D rectangular width 20 mm x height 5 mm ( 4118420133 )
Scope of Delivery: - Turning ring DIN 4964 shape D rectangular width 20 mm x height 5 mm Product Description: HSS-EW9Co10 - DIN 4964 - shape D: rectangular - hardened, tempered and finish ground - ends straight and unsharpened - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - L: 200mm - W: 20mm - H: 5mmFor commercial use, please observe the building regulations!
-

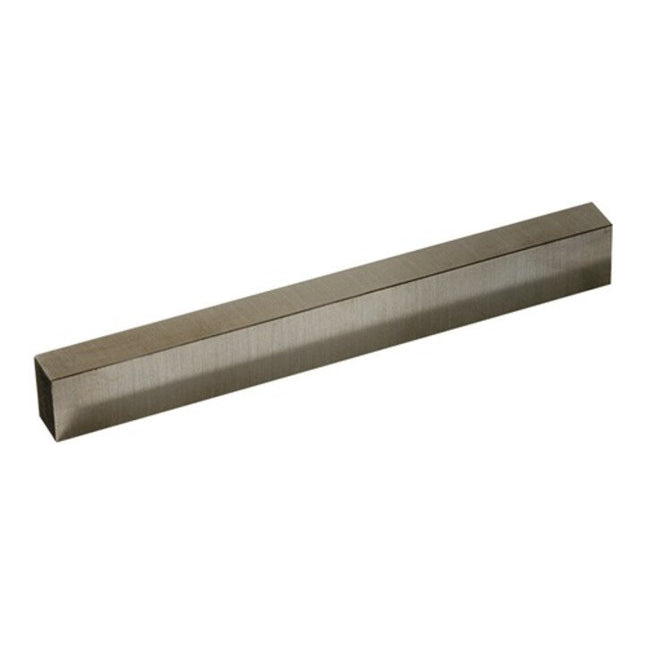

WILKE WILKE rotating ring DIN 4964 shape D rectangular width 16 mm x height 10 mm ( 4118420130 )
Scope of Delivery: - Turning ring DIN 4964 shape D rectangular width 16 mm x height 10 mm Product Description: HSS-EW9Co10 - DIN 4964 - shape D: rectangular - hardened, tempered and finish ground - ends straight and unsharpened - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - L: 200mm - W: 16mm - H: 10mmFor commercial use, please observe the building regulations!
-

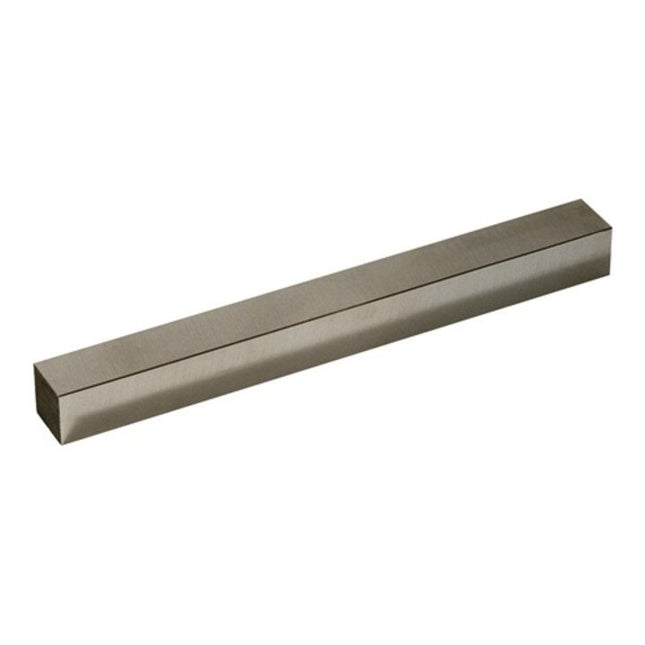

WILKE WILKE rotating ring DIN 4964 form B square width 14 x 14 mm ( 4118415144 )
Scope of Delivery: - Turning ring DIN 4964 form B square width 14 x 14 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 - shape B: square - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - L: 200mm - B: 14 x 14mmFor commercial use, please observe the building regulations!
-
WILKE WILKE rotating ring DIN 4964 form B square width 12 x 12 mm ( 4118415130 )
Mon, 09/29/2025
Scope of Delivery: - Turning ring DIN 4964 form B square width 12 x 12 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 - shape B: square - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - Length L: 200mm - B: 12 x 12mmFor commercial use, please observe the building regulations!
CHF 45.17
-
WILKE WILKE rotating ring DIN 4964 form B square width 10 x 10 mm ( 4118415098 )
Mon, 09/29/2025
Scope of Delivery: - Turning ring DIN 4964 form B square width 10 x 10 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 - shape B: square - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - Length L: 100mm - B: 10 x 10mmFor commercial use, please observe the building regulations!
CHF 22.31
-
WILKE WILKE rotating ring DIN 4964 form B square width 8 x 8 mm ( 4118415090 )
Scope of Delivery: - Turning ring DIN 4964 form B square width 8 x 8 mm Product Description: HSS-EW9Co10 material 1.3207 - DIN 4964 - shape B: square - hardened, tempered and finish ground - ends straight and unground - hardness 65-69 HRC - cross-section tolerance: h13 length tolerance: +/- 2 mm Technical Data: - L: 200mm - B: 8 x 8mmFor commercial use, please observe the building regulations!
