Scope of Delivery:
- 1x REMS Mini-Press ACC 22 V ( 578002R22 )
- 1x REMS Li-Ion battery with 21.6 V and 2.5 Ah ( 571571R22 )
- 1x REMS quick charger for Li-Ion batteries 230 V, 50 - 60 Hz, 70 W ( 571575R220 )
- 1x REMS L-Boxx 136 with matching system insert
- 1x operating instructions
- without crimping pliers
Product Description:
This cordless radial press from REMS is a universal, extremely handy power tool with forced drainage for producing press connections for all common pressfitting systems. The tool is suitable for press connections with a diameter of 10 to 40 mm. It is light, handy and fast. It presses in under 4 seconds. Thanks to its compact design, this radial press can be used anywhere: freehand, overhead and even in particularly tight spaces. The optimised weight distribution ensures that it can also be operated with one hand. The drive unit with crimping pliers (not included) can be placed on the battery within easy reach. The housing is ergonomically designed and has a soft grip. The crimping tool holder can be rotated through 360°. The automatic locking mechanism ensures that the crimping pliers are always secure. The crimping process takes place with ACC. The machine also has a thrust and pressing force of 22 kN and a thrust force of 22 kN. The electro-hydraulic drive is powerful with a high-torque battery motor with a power of 21.6 V/380 W. It also has a robust planetary gearbox and an eccentric piston pump.
Technical Data:
- Voltage: 22V
- Case dimensions (length x width x height): 440 x 370 x 140 mm
- Weight: 6260 g
- Country of origin: Germany
- Press connections: Ø 10 - 40 mm, Ø ⅜ - 1 ¼"
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Package contents:
- 1x Rothenberger Press Jaw Standard TH26 for pressing machine ROMAX 4000 ( 015326X )
Product description:
These press jaws from Rothenberger, whose high quality materials and workmanship have proven their worth, are suitable for pressing metal or plastic fitting systems. The use of a special hardening process, DURA LAZR TEC technology, and a partial laser hardening process allow precise and safe crimping with increased durability. This minimizes wear and tear and increases the number of pressure cycles by 100% compared to the previous model. Moreover, long-term corrosion protection increases the service life of the press jaws. Thanks to the use of high-strength special steel, these press jaws are suitable for all pressing machines with an axial thrust of 32 to 34 kN.
DURA LAZR TEC process - Partial laser hardening ensures maximum hardening in highly loaded areas. This reduces wear and tear and ensures high contour accuracy. When combined with forged, high-strength and flexible special steel, this new generation of press jaws guarantees a 100% longer service life than the previous generation. Its 3-bolt synchronization mechanism allows the pressing machine to be opened with just one finger. The precisely manufactured contour ensures optimal and secure crimping.
Technical specifications:
Product diameter: 26 mm
Product weight: 2.1 kg
Product height: 3.9 cm
Product length: 15.5 cm
Product width: 10.7 cm
Product country of origin: DE
Scope of Delivery:
- 1x ROTHENBERGER battery press machine 19 kN 15 - 28 mm
Product Description:
The ROMAX COMPACT III electro-hydraulic, radial pressing machine is ideal for system-compliant pressing of fittings up to 35 mm (metal) or 40 mm (plastic), even in constrained positions. 40 mm (plastic), even in constrained positions - it presses fittings with a piston force of 19 kN and a pressing cycle of 3 seconds - constant pressing force over the entire pressing cycle is guaranteed by Constant Force Technology (CFT) - real-time data acquisition of relevant machine parameters and convenient creation of pressing logs directly on site using the ROTHENBERGER app with CONNECTIVITY - the optimised compact design and perfectly balanced weight make installation work over longer stages a breeze
Technical Data:
- Width: 400mm
- Length: 400mm
- Weight: 9,620kg
- Working range: 15 - 28mm
- Battery voltage: 18 V
- Battery capacity: 2 Ah
- Version: Press jaws SET M, 1X2Ah, EU, 15-22-28 mm
- Height: 145 mm
- Axial thrust: 19 kN
- Brand: ROTHENBERGERFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x ROTHENBERGER battery-powered pressing machine 19 kN 16 - 26 mm
Product Description:
The ROMAX COMPACT III electro-hydraulic, radial pressing machine is ideal for system-compliant pressing of fittings up to 35 mm (metal) or 40 mm (plastic), even in constrained positions. 40 mm (plastic), even in constrained positions - it presses fittings with a piston force of 19 kN and a pressing cycle of 3 seconds - constant pressing force over the entire pressing cycle is guaranteed by Constant Force Technology (CFT) - real-time data acquisition of relevant machine parameters and convenient creation of pressing logs directly on site using the ROTHENBERGER app with CONNECTIVITY - the optimised compact design and perfectly balanced weight make installation work over longer stages a breeze
Technical Data:
- Width: 400mm
- Length: 400mm
- Weight: 9,620kg
- Working range: 16 - 26mm
- Battery voltage: 18 V
- Battery capacity: 2 Ah
- Version: Press jaws SET TH, 1X2Ah, EU, 16-20-26 mm
- Height: 145 mm
- Axial thrust: 19 kN
- Brand: ROTHENBERGERFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x ROTHENBERGER battery press machine 19 kN 15 - 28 mm
Product Description:
The ROMAX COMPACT III electro-hydraulic, radial pressing machine is ideal for system-compliant pressing of fittings up to 35 mm (metal) or 40 mm (plastic), even in constrained positions. 40 mm (plastic), even in constrained positions - it presses fittings with a piston force of 19 kN and a pressing cycle of 3 seconds - constant pressing force over the entire pressing cycle is guaranteed by Constant Force Technology (CFT) - real-time data acquisition of relevant machine parameters and convenient creation of pressing logs directly on site using the ROTHENBERGER app with CONNECTIVITY - the optimised compact design and perfectly balanced weight make installation work over longer stages a breeze
Technical Data:
- Width: 400mm
- Length: 400mm
- Weight: 9,620kg
- Working range: 15 - 28mm
- Battery voltage: 18 V
- Battery capacity: 2 Ah
- Version: Press jaws SET M, 1X2Ah, EU, 15-22-28 mm
- Height: 145 mm
- Axial thrust: 19 kN
- Brand: ROTHENBERGERFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x ROTHENBERGER battery press machine 19 kN 15 - 35 mm
Product Description:
The ROMAX COMPACT III electro-hydraulic, radial pressing machine is ideal for system-compliant pressing of fittings up to 35 mm (metal) or 40 mm (plastic), even in constrained positions. 40 mm (plastic), even in constrained positions - it presses fittings with a piston force of 19 kN and a pressing cycle of 3 seconds - constant pressing force over the entire pressing cycle is guaranteed by Constant Force Technology (CFT) - real-time data acquisition of relevant machine parameters and convenient creation of pressing logs directly on site using the ROTHENBERGER app with CONNECTIVITY - the optimised compact design and perfectly balanced weight make installation work over longer stages a breeze
Technical Data:
- Width: 400mm
- Length: 400mm
- Weight: 6,330kg
- Working range: 15 - 35mm
- Battery voltage: 18 V
- Battery capacity: 2 Ah
- Version: BASIC SET2, 2X2Ah, EU, without pressing jaws
- Height: 145 mm
- Axial thrust: 19 kN
- Brand: ROTHENBERGERFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x ROTHENBERGER battery-powered press machine 19 kN 15 - 35 mm
Product Description:
The ROMAX COMPACT III electro-hydraulic radial press machine is ideal for system-compliant pressing of fittings up to 35 mm (metal) or 40 mm (plastic), even in difficult positions · It presses fittings with a piston force of 19 kN and a pressing cycle of 3 seconds · Constant pressing force throughout the entire pressing cycle is guaranteed by Constant Force Technology (CFT) · Real-time data acquisition of relevant machine parameters and convenient creation of pressing logs directly on site using the ROTHENBERGER app via CONNECTIVITY · Thanks to the optimised compact design and perfectly balanced weight, installation work over longer periods is a breeze
Technical Data:
- Width: 400 mm
- Length: 400 mm
- Weight: 6.330 kg
- Working range: 15 - 35 mm
- Battery voltage: 18 V
- Battery capacity: 2 Ah
- Version: BASIC SET2, 2X2Ah, EU, without press jaws
- Height: 145 mm
- Axial thrust: 19 kN
- Brand: ROTHENBERGER For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x ROTHENBERGER battery press 32 - 34 kN 12 - 110 mm,4 + 2 Ah
Product Description:
electro-hydraulic battery-powered pressing machine - constant axial pressing force of 32 - 34 kN - for pressing metal and plastic fittings Ø 12-110 mm - fast and powerful work: Presses in less than 5 seconds - Low weight of 3.6 kg - Increased power capacity thanks to improved battery technology - Increased service interval after 40,000 pressings / 2 years - In a ROCASE clickable plastic case
Technical Data:
- Width: 14.5cm
- Length: 59.5cm
- Weight: 3.6kg without pressing jaws
- Working range: 12 - 110mm
- subject to inspection: yes
- Battery voltage: 18 V
- Battery capacity: 4 + 2 Ah
- Version: with battery and charger
- Height: 40.5 cm
- Axial thrust: 32 - 34 kN
- Brand: ROTHENBERGERPlease observe the building regulations for commercial use!For commercial use, please observe the building regulations!
Scope of Delivery:
- Push rod clamp no. 6845 size 3
Product Description:
Pressure clamp - (push rod and hand lever counter-rotating) - with long push rod guide - base body made of malleable cast iron, painted - lever parts and push rod made of tempered steel, galvanised and passivated - rivets made of stainless steel running in case-hardened bearing bushes - bearing points greased - ergonomic, oil-resistant handle with large hand rest and soft component - Advantage: - Low overall height in clamping position
Technical Data:
- F1: 4kN
- Property: Compression clampFor commercial use, please observe the building regulations!

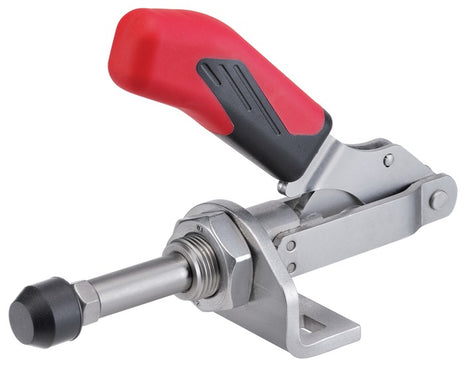

Scope of Delivery:
- Push rod clamp no. 6841 size 2
- Supplied with hardened and tempered, galvanised tightening screw no. 6880
Product Description:
with small angled foot - push and pull clamp - with long push rod guide - the clamp can be attached to sheet metal walls without an angled foot or screwed into fixture bodies with a thread on the end face
Technical Data:
- A: 10mm
- D: 5.6mm
- M max.: 36mm
- M min.: 31.8mm
- L2: 19mm
- M2: M16x1.5mm
- L1: 114mm
- H1: 85.5mm
- F1: 2kN
- Total height: 95mm
- B max: 58.5mm
- Bore Ø: 5.6 mm
- F2: 2kN
- B min.: 32.5mm
- P: 34mm
- K: 12.5mm
- E: 20mm
- H: 20mm
- N: 50mm
- Total length: 114mmFor commercial use, please observe the building regulations!
Lieferumfang:Schubstangenspanner Größe 251 x STC-IHH25 + 1 x STC-SET-T20Produktbeschreibung:zum Einsatz auf Multifunktionstischen wie z.B. Festool MFT und Sortimo WorkMo mit Lochdurchmesser 20 mm und Plattenstärke von min. 19 mm bis max. 25 mm Technische Daten:Ausstattung: 1 x STC-IHH25 + 1 x STC-SET-T20
Scope of Delivery:
- Vertical clamp size 50
- 1 x STC-VH50 + 1 x STC-SET-T20
Product Description:
for use on multifunction tables such as Festool MFT and Sortimo WorkMo with hole diameter 20 mm and plate thickness from min. 19 mm to max. 25 mm
Technical Data:
- F1: 2.5kN
- Span: 40mmFor commercial use, please observe the building regulations!
