Bessey BESSEY push bar clamp size 25 ( 4123716102 )
Fri, 09/19/2025
Scope of Delivery: - Push rod clamp size 25 Product Description: Automatic stepless adjustment of the clamping width up to 13 mm - with almost constant clamping force - without manual change of the pressure screw position - clamping force can be adjusted to requirements by simply turning the adjusting screw in the joint of the clamp - removable protective cap on the pressure plate - hole pattern of the base plate suitable for mm and inch - 2-component plastic handle with soft material insert Technical Data: - Width: 60mm - Length: 233mm - F1: 2.5kN - Height: 46mmFor commercial use, please observe the building regulations!
CHF 33.74
-
AMF AMF Locking clamp no. 6848H size 4 ( 4123682400 )
Fri, 09/19/2025
Scope of Delivery: - Locking clamp no. 6848H size 4 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 111mm - C: 32mm - D: 8.5mm - E max: 123mm - L1: 209-273mm - E min: 59mm - H1: 94.5mm - H2: 171.5mm - Arm length: 111mm - B max.: 130mm - Bore Ø: 8.5mm - F: 19mm - B min: 66mm - P: 53.5mm - K: 9.5mm - M: 35.0-46.0mm - H: 26mm - N: 64.3mm - D1: 8mmFor commercial use, please observe the building regulations!
CHF 73.85
-
AMF AMF Locking clamp no. 6848H size 2 ( 4123682200 )
Fri, 09/19/2025
Scope of Delivery: - Locking clamp no. 6848H size 2 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 69mm - C: 13mm - D: 5.2mm - E max: 72mm - L1: 125-159mm - E min: 38mm - H1: 47mm - H2: 99mm - Arm length: 69mm - B max.: 76mm - Bore Ø: 5.2mm - F: 11mm - B min.: 42mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 12mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
CHF 32.26
-

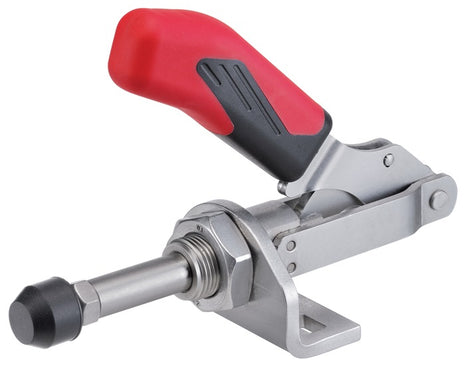

AMF AMF push rod clamp no. 6842 size 3 ( 4123680130 )
Fri, 09/19/2025
Scope of Delivery: - Push rod clamp no. 6842 size 3 Product Description: heavy - push and pull clamp - with long push rod guide - base body made of malleable cast iron, painted - lever parts and push rod made of tempered steel, galvanised and passivated - rivets made of stainless steel, which run in case-hardened bearing bushes for size 3 - bearing points greased - handle made of red, oil-resistant plastic - for sizes 3 and 5: ergonomic, oil-resistant handle with large hand rest and soft component - complete with tempered, galvanised pressure screw Technical Data: - A: 12mm - C: 41mm - D: 6.5mm - M max: 44mm - M min: 36mm - L1: 139mm - H1: 116mm - F1: 4kN - Total height: 115mm - B max: 72mm - Bore Ø: 6.5 mm - F2: 4kN - B min.: 40mm - P: 95mm - Feature: heavy, push/pull clamp - K: 28mm - E: 30mm - H: 30mm - N: 60mm - Total length: 140mmFor commercial use, please observe the building regulations!
CHF 58.69
-
Bessey BESSEY WSM metal angle clamp through width 60 mm ( 4000831563 )
Scope of Delivery: - Metal angle clamp WSM Clearance width 60 mm Product Description: Universal clamping tool for fixing components at right angles to each other, even of different thicknesses - Jaws and base body made of high-quality cast iron - Copper-plated spindle, therefore also particularly suitable for welding work - Easy to attach to welding tables and machine tables thanks to the elongated holes on the sides - Angle range: 5° - 180° Technical Data: - Jaw length: 110mm - Jaw height: 35mmFor commercial use, please observe the building regulations!
-
Bessey BESSEY push bar clamp size 15 ( 4000831138 )
Fri, 09/19/2025
Scope of Delivery: - Push rod clamp size 15 Product Description: Automatic stepless adjustment of the clamping width up to 13 mm - with almost constant clamping force - without manual change of the pressure screw position - clamping force can be adjusted to requirements by simply turning the adjusting screw in the joint of the clamp - removable protective cap on the pressure plate - hole pattern of the base plate suitable for mm and inch - 2-component plastic handle with soft material insert Technical Data: - Width: 42mm - Length: 181mm - F1: 1.1kN - Height: 32mmFor commercial use, please observe the building regulations!
CHF 30.86
-
AMF AMF push rod clamp no. 6840 size 3 ( 4000604394 )
Scope of Delivery: - Push rod clamp no. 6840 size 3 - Supplied with hardened and tempered, galvanised tightening screw no. 6880 Product Description: without angled foot - push and pull clamp - (push rod and hand lever synchronised) - long push rod guide with fastening thread and nut Technical Data: - A: 12mm - L2: 22mm - M2: M20x1.5mm - HW min.: 22mm - L1: 140mm - HW max.: 35mm - H1: 82.5mm - F1: 2.5kN - B max.: 56mm - F2: 2.5kN - B min.: 24mm - L3: 127mm - E: 30mm - N: 27mmFor commercial use, please observe the building regulations!
-
AMF AMF push rod clamp no. 6840 size 2 ( 4000604393 )
Fri, 09/19/2025
Scope of Delivery: - Push rod clamp no. 6840 size 2 - Supplied with hardened and tempered, galvanised tightening screw no. 6880 Product Description: without angled foot - push and pull clamp - (push rod and hand lever synchronised) - long push rod guide with fastening thread and nut Technical Data: - A: 10mm - L2: 19mm - M2: M16x1.5mm - HW min.: 17mm - L1: 114mm - HW max.: 25mm - H1: 66mm - F1: 2kN - B max.: 46mm - F2: 2kN - B min.: 20mm - L3: 105mm - E: 20mm - N: 22mmFor commercial use, please observe the building regulations!
CHF 40.11
-
AMF AMF Locking clamp no. 6848H size 3 ( 4123682300 )
Fri, 09/19/2025
Scope of Delivery: - Locking clamp no. 6848H size 3 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 93mm - C: 19mm - D: 6.5mm - E max: 96mm - L1: 169-216mm - E min: 48.6mm - H1: 70mm - H2: 135.5mm - Arm length: 93mm - B max.: 101mm - Bore Ø: 6.5mm - F: 14mm - B min.: 53.5mm - P: 35mm - K: 8.0mm - M: 24.5-32.0mm - H: 19mm - N: 48mm - D1: 6mmFor commercial use, please observe the building regulations!
CHF 45.10
-
AMF AMF horizontal clamp no. 6832 size 1 ( 4123572110 )
Scope of Delivery: - Horizontal clamp no. 6832 size 1 Product Description: with vertical base Technical Data: - C: 13-14.5mm - D: 5.2mm - Pressure screw: M5 x 30 - HW min.: 8mm - L1: 120mm - F1: 0.8kN - Total height: 42mm - L: -mm - O: 5mm - a*: 90° - Type: vertical foot - F: 8mm - P: 34mm - K: 5.5mm - A: 5mm - HW max.: 15mm - H1: 43mm - H2: 49mm - M1: 24.5mm - I: 10mm - F2: 1.1kN - B: 42mm - E: 18.5mm - M: 23.5-25.5mm - H: 31.5mm - N: 18mm - Total length: 119mm - D1: -mmFor commercial use, please observe the building regulations!
-
BERG & SCHMID BERG & SCHMID HK 500 manual toggle press Compressive force 5 kN Stroke 40 mm ( 4000830966 )
Fri, 09/19/2025
Scope of Delivery: - Toggle hand press HK 500 Compressive force 5 kN Stroke 40 mm Product Description: Power transmission via toggle lever transmission - Spindle hardened and ground - Long spindle guide for optimum pressure performance - Working height adjustable by simply loosening the clamping screws on the stand - Hand lever return via spring - With 15 mm Ø table bore in the T-slot - Important! With the toggle lever transmission, the maximum pressure output is only achieved when the toggle lever is extended, i.e. shortly before the end of the stroke. Technical Data: - Width: 175mm - Length: 115mm - Table length: 115mm - Spindle bore: 10 H 7mm - Weight: 11kg - Base width: 175mm - Projection: 73mm - Base length: 115mm - Spindle guide: 50mm - Stand height: 290mm - Table width: 70mm - Slot width: (DIN 650) 10mmFor commercial use, please observe the building regulations!
CHF 345.08
-
AMF AMF push rod clamp no. 6844 size 5 ( 4123665500 )
Fri, 09/19/2025
Scope of Delivery: - Push rod clamp no. 6844 size 5 - Supplied with hardened and tempered, galvanised tightening screw no. 6880 Product Description: short design - push and pull clamp - with long push rod guide - the clamp can be attached to sheet metal walls or screwed into fixture bodies with threads on the face - stainless steel version available on request. Detailed CAD dimensions available on data carriers on request. Technical Data: - A: 16mm - L2: 24mm - M2: M24x1.5mm - HW min.: 30mm - L1: 175mm - HW max.: 50mm - H1: 149mm - F1: 4kN - Total height: 148mm - F2: 4kN - B: 92mm - L3: 139mm - E: 45mm - M: M12mm - N: 49mmFor commercial use, please observe the building regulations!
CHF 68.42
