Package contents:
- 1x Rothenberger ROMAX 4000 Electro-hydraulic Press machine 18 V Li-Ion for fittings

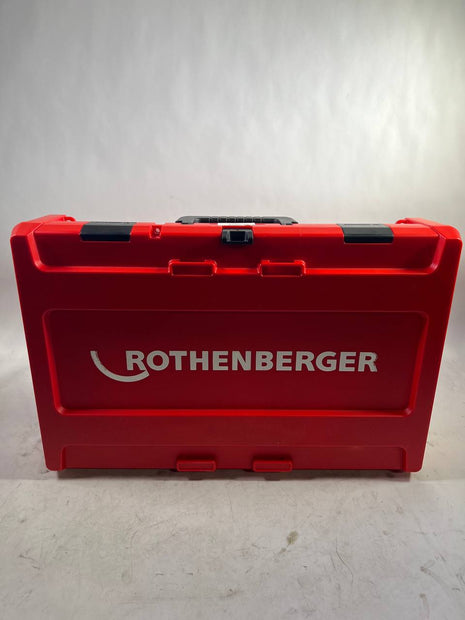

- 1x Carry case with insert
- 1x Battery 18 V 4.0 Ah Li-Ion
- 1x Charger Li-Power Air Cooled 14.4 - 36 V
Product description:
This new product from ROMAX® is an electro-hydraulic cordless press machine for crimping fittings up to 110 mm in diameter and from 32 to 34 kN depending on the system. Thanks to the more powerful battery technology, it is possible to produce more compression per charge. Its low weight of 3.6 kg and balanced weight distribution reduce fatigue and allow ergonomic and energy-saving work over a long period of time. The CFT® technology ensures the required compression force during compression. The improved maintenance interval of 40,000 press cycles / 2 years ensures high productivity.
Technical specifications:
Voltage: 18V
Dimensions: 59 x 38.4 x 14.3 cm
Weight: 7.51 kg
UN Number: UN3481
REACH compliant: Yes
RoHS compliant: Yes
Country of origin: Germany
Gross weight: 7.2 kg
Working range Diameter at (MM): 110 mm
Working area diameter (mm): 12 mm
Scope of Delivery:
- 1x BERG & SCHMID toggle lever hand press Compressive force 8 kN Stroke 40 mm
Product Description:
Power transmission via toggle lever transmission - Spindle hardened and ground - Long spindle guide for optimum pressure performance - Working height adjustable by simply loosening the clamping screws on the stand - Hand lever return via spring - With 15 mm Ø table bore in the T-slot
Technical Data:
- Width: 230mm
- Length: 160mm
- Table length: 120mm
- Spindle bore: 10 H 7mm
- Weight: 22kg
- Base width: 230mm
- Projection: 90mm
- Base length: 160mm
- Spindle guide: 75mm
- Stand height: 410mm
- Table width: 160mm
- Slot width: (DIN 650) 12mm
- Model: HK 800
- Compressive force: 8 kN
- Stroke: 40 mm
- Working height: 50-200 mm
- Spindle Ø: 24 mm
- Brand: BERG & SCHMIDFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x Rems VRX 25 pressing jaw pressing pliers ( 571754R )
Product Description:
The REMS VRX 25 crimping pliers are the perfect choice for professional craftsmen who need a reliable and efficient crimping pliers. With its 2 swivelling monoblock pressing jaws, it is easy to use and versatile. The REMS VRX 25 is the best-selling standard version and impresses with its high-quality workmanship and durability. Thanks to its ergonomic design, it sits comfortably in the hand and enables precise and effortless operation.
Technical Data:
- Manufacturer: Rems
- Manufacturer's description: VRX 25
- Manufacturer number: 571754R
- Contour: VRX
- Size: 25
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x Rems Mini V 35 pressing jaw pressing pliers size 35 ( 578604R )
Product Description:
The REMS Mini V 35 press jaw is the ideal tool for all standard pressfitting systems. With 2 swivelling monoblock press jaws, it enables efficient working. The recessed indentations ensure that the connecting lugs are guided securely, guaranteeing offset-free pressing. Please follow the installation & assembly instructions of the respective system provider/manufacturer to achieve optimum results.
Technical Data:
- Manufacturer: Rems
- Manufacturer's description: Mini V 35
- Manufacturer number: 578604R
- Contour: V
- Size: 35
- suitable for: Rems Mini-Press
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x Rems Mini UP 25 pressing jaw pressing pliers size 25 ( 578584R )
Product Description:
The REMS pressing tongs Mini are equipped with 2 swivelling monobloc pressing jaws and impress with their particularly compact design and low weight. Thanks to the special arrangement of the pressing jaw connection (patent EP 1 952 948), it is easy to handle and ideal for professional use. The recesses in the pressing jaws ensure secure guidance of the connecting tabs and enable offset-free pressing (patent EP 2 347 862).
Technical Data:
- Manufacturer: Rems
- Manufacturer's description: Mini UP 25
- Manufacturer number: 578584R
- Contour: UP
- Size: 25
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Package contents:
- 1x Rothenberger Press Jaw Standard TH32 for pressing machine ROMAX 4000 ( 015327X )
Product description:
These press jaws from Rothenberger, whose high quality materials and workmanship have proven their worth, are suitable for pressing metal or plastic fitting systems. The use of a special hardening process, DURA LAZR TEC technology, and a partial laser hardening process allow precise and safe crimping with increased durability. This minimizes wear and tear and increases the number of pressure cycles by 100% compared to the previous model. Moreover, long-term corrosion protection increases the service life of the press jaws. Thanks to the use of high-strength special steel, these press jaws are suitable for all pressing machines with an axial thrust of 32 to 34 kN.
DURA LAZR TEC process - Partial laser hardening ensures maximum hardening in highly loaded areas. This reduces wear and tear and ensures high contour accuracy. When combined with forged, high-strength and flexible special steel, this new generation of press jaws guarantees a 100% longer service life than the previous generation. Its 3-bolt synchronization mechanism allows the pressing machine to be opened with just one finger. The precisely manufactured contour ensures optimal and secure crimping.
Technical specifications:
Product diameter: 32 mm
Product weight: 2.6 kg
Product height: 4.8 cm
Product length: 15.9 cm
Product width: 11.5 cm
Product country of origin: DE
Package contents:
- 1x REMS Pressing Tong Standard TH20 ( 570470 )
Product description:
The Standard TH20 pressing tongs from REMS are made of special forged and hardened stainless steel. The pressing contours of these REMS pressing tongs are system-specific and correspond to the pressing contours of the respective press machines, thus ensuring perfect, system-conform and safe pressing. These pressing tongs have a high-precision, accurately shaped and rounded pressing contour and therefore significantly lower manufacturing tolerances than the contours of cast tongs.
Technical specifications:
Diameter: 20 mm
Product weight : 1820 g
Product height : 45 mm
Product length : 145 mm
Product width: 95 mm
Country of origin: Germany
Package contents:
- 1x REMS Pressing Tong Standard TH26 for ACC Cordless Press Machine( 570475 )
Product description:
The Standard TH26 pressing tongs from REMS are made of special forged and hardened stainless steel. The pressing contours of these REMS pressing tongs are system-specific and correspond to the pressing contours of the respective press machines, thus ensuring perfect, system-conform and safe pressing. These pressing tongs have a high-precision, accurately shaped and rounded pressing contour and therefore significantly lower manufacturing tolerances than the contours of cast tongs.
Technical specifications:
Diameter: 26 mm
Product weight : 2140 g
Product height : 40 mm
Product length : 145 mm
Product width: 155 mm
Country of origin: Germany

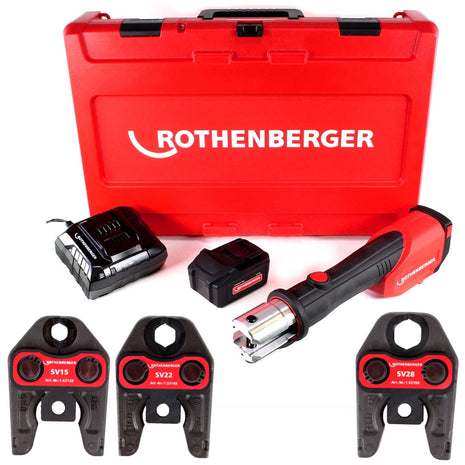

Package contents:
- 1x Rothenberger ROMAX 4000 Electro-hydraulic Press Machine 18V Li-Ion
- 1x Battery 4.0 Ah 18V Li-Ion - CAS Cordless Alliance System
- 1x Charger 18V - CAS Cordless Alliance System
- 1x Press jaw Rothenberger standard M15 for press machines ROMAX (015102X)
- 1x Press jaw Rothenberger standard M22 for press machines ROMAX (015104X)
- 1x Press jaw Rothenberger standard M28 for press machines ROMAX 4000 (015105X)
- 1x Case with matching insert
Product description:
Rothenberger presents ROMAX® 4000, an electro-hydraulic battery powered press machine for system dependent pressing of up to 110 mm diameter with 32-34 Kn. It uses an improved and more powerful battery technology which allows an increase in pressings per single charge. Its low weight of only 3.6 kg and its balanced weight distribution reduce fatigue and enable a more ergonomic and effort-saving work even during continuous use. This tool features a CFT technology which guarantees a constant thrust during each press cycle. It allows service interval of 40.000 pressings/ 2 years down time to be reduced and increases productivity. The ROTHENBERGER battery technology revolutionises the ROTHENBERGER battery range owing to its technology and its intelligent management. Between the battery and the device, batteries have unprecedented endurance reserves. They are equipped with LED lights which ensure a clear checking of the charging status. The press jaws are specially designed for the manufacturer Viga.
Technical specifications:
Rothenberger ROMAX 4000 Electro-hydraulic Press Machine 18V Li-Ion
Voltage: 18V
Dimensions unit: 59 x 38,4 x 14,3 cm
Weight incl. case: 6,73 kg
REACH conform: Yes
RoHS conform: Yes
Country of origin: Germany
Gross weight: 7.2 kg
Working range diameter up to (MM): 110 mm
Working range diameter from (MM): 12 mm

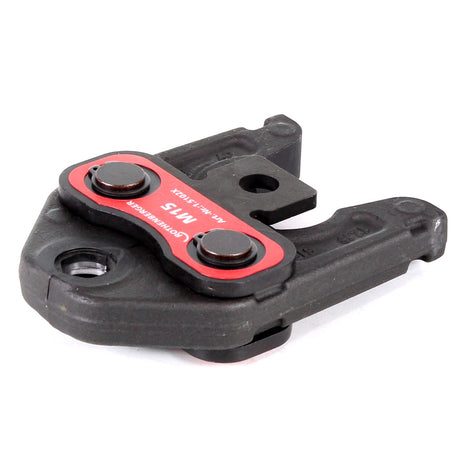

Rothenberger Press Jaw Standard M15
Product weight 2,04 kg
Product height: 3.9 cm
Product length: 14.5 cm
Product width: 10,5 cm
Country of origin: DE
Rothenberger Press Jaw Standard M22
Diameter: 22 mm
Product weight: 2.12 kg
Product height: 3.9 cm
Product length: 15 cm
Product width: 10,5 cm
Country of origin: DE
Rothenberger Press Jaw Standard M28
Diameter: 28 mm
Product weight: 1,95 kg
Product height: 3.9 cm
Product length: 14 cm
Product width: 10,5 cm
Country of origin: DE
Package contents:
- 1x Rothenberger ROMAX 4000 Electro-hydraulic Press Machine 18V Li-Ion
- 1x Battery 4.0 Ah 18V Li-Ion - CAS Cordless Alliance System
- 1x Charger 18V - CAS Cordless Alliance System
- 1x Press jaw Rothenberger standard TH16 for press machines ROMAX (015322X)
- 1x Press jaw Rothenberger standard TH20 for press machines ROMAX (015324X)
- 1x Press jaw Rothenberger standard TH26 for press machines ROMAX 4000 (015326X)
- 1x Case with matching insert
Product description:
Rothenberger presents ROMAX® 4000, an electro-hydraulic battery powered press machine for system dependent pressing of up to 110 mm diameter with 32-34 Kn. It uses an improved and more powerful battery technology which allows an increase in pressings per single charge. Its low weight of only 3.6 kg and its balanced weight distribution reduce fatigue and enable a more ergonomic and effort-saving work even during continuous use. This tool features a CFT technology which guarantees a constant thrust during each press cycle. It allows service interval of 40.000 pressings/ 2 years down time to be reduced and increases productivity. The ROTHENBERGER battery technology revolutionises the ROTHENBERGER battery range owing to its technology and its intelligent management. Between the battery and the device, batteries have unprecedented endurance reserves. They are equipped with LED lights which ensure a clear checking of the charging status. The press jaws are specially designed for the manufacturer Viga.
Technical specifications:
Rothenberger ROMAX 4000 Electro-hydraulic Press Machine 18V Li-Ion
Voltage: 18V
Dimensions unit: 59 x 38,4 x 14,3 cm
Weight incl. case: 6,73 kg
REACH conform: Yes
RoHS conform: Yes
Country of origin: Germany
Gross weight: 7.2 kg
Working range diameter up to (MM): 110 mm
Working range diameter from (MM): 12 mm
Rothenberger Press Jaw Standard TH16
Diameter: 16 mm
Product weight 2,0 kg
Product height: 3.9 cm
Product length: 14.2 cm
Product width: 10,5 cm
Country of origin: DE
Rothenberger Press Jaw Standard TH20
Diameter: 20 mm
Product weight: 2.0 kg
Product height: 3.8 cm
Product length: 14.5 cm
Product width: 10.7 cm
Country of origin: DE
Rothenberger Press Jaw Standard TH26
Diameter: 26 mm
Product weight: 2.1 kg
Product height: 3.9 cm
Product length: 15.5 cm
Product width: 10.7 cm
Country of origin: DE
Contents of the package:
- 1x Rothenberger ROMAX 4000 Cordless Press Machine Li-Ion 18V
- 2x Batteries Metabo LiHD 8.0 Ah 18V Li-Ion - CAS system (625369000)
- 1x Charger Metabo ASC 55 AIR COOLED 12-36V - successor of ASC 30-36 (627044000)
- 1x Case with insert
Product description:
Rothenberger presents ROMAX® 4000, a battery powered press machine for system dependent pressing of up to 110 mm diameter with 32-34 Kn. It uses an improved and more powerful battery technology which allows an increase in pressings per single charge. Its low weight of only 3.6 kg and its balanced weight distribution reduce fatigue and enable a more ergonomic and effort-saving work even during continuous use. This tool features a CFT technology which guarantees a constant thrust during each press cycle. It allows service interval of 40.000 pressings/ 2 years down time to be reduced and increases productivity. The new Li-HD technology makes its batteries more powerful and more compact: denser cells reduce their weight and make these batteries slimmer while maintaining the same performance. As part of the Cordless Alliance System (CAS), the 8.0 Ah 18V battery of this ROMAX® 4000 can be used with more than 110 machines from different manufacturers, namely nine that use the same battery technology. This battery ensures a long service life owing to its protection against dirt. Its external rubber protection also makes it very robust, its capacity display allows control of the charging state and it can therefore be stored for a long time without quick discharge.
Technical specifications:
Rothenberger ROMAX 4000 Electro-hydraulic crimper Li-Ion 18V
Voltage: 18V
Dimensions: 59 x 38.4 x 14.3 cm
Weight incl. case: 6.73 kg
REACH compliant: Yes
RoHS compliant : Yes
Country of origin : Germany
Gross weight: 7.2 kg
Working area diameter from (MM): 12 mm
Working area diameter up to (MM): 110 mm
Scope of Delivery:
- 1x Rothenberger ROMAX 4000 18 V Li-Ion battery-powered electro-hydraulic crimping machine
- 1x transport case with matching insert
- 1x Metabo LiHD battery pack 18 V 8.0 Ah Li-Ion battery ( 625369000 ) CAS system
Product Description:
The ROMAX® 4000 is an electro-hydraulic battery-powered crimping machine for system-dependent crimping of fittings up to Ø 110 mm with 32 - 34 kN. The use of more powerful battery technology enables more crimps per charge. A low weight of 3.6 kg and balanced weight distribution reduce fatigue and enable ergonomic and energy-saving work, even over longer periods of time. The CFT® technology used guarantees the required pressing force during pressing. The improved service interval of 40,000 crimping cycles / 2 years ensures high productivity. The new Li-HD technology makes batteries strong and compact: Densely packed cells ensure less weight and slimmer batteries with the same performance. As part of the Cordless Alliance System (CAS), the 8.0 Ah 18 V battery can be used on more than 110 machines from different manufacturers: CAS connects nine tool manufacturers that use the same battery technology. The battery has a long service life thanks to optimum protection against soiling. The external rubber coating also makes it very robust. The capacity indicator is used to permanently monitor the charge level. It can be stored for a long time as there is virtually no self-discharge.
Technical Data:
- Rothenberger ROMAX 4000 18 V Li-Ion battery-powered electro-hydraulic crimping machine
- Voltage: 18 V
- Device dimensions: 59 x 38.4 x 14.3 cm
- Weight incl. case: 6.73 kg
- REACH-compliant: Yes
- RoHS compliant: Yes
- Country of origin: Germany
- Gross weight: 7.2 kg
- Working range diameter up to (MM): 110 mm
- Working range diameter from (MM): 12 mm
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
