Muttern
-

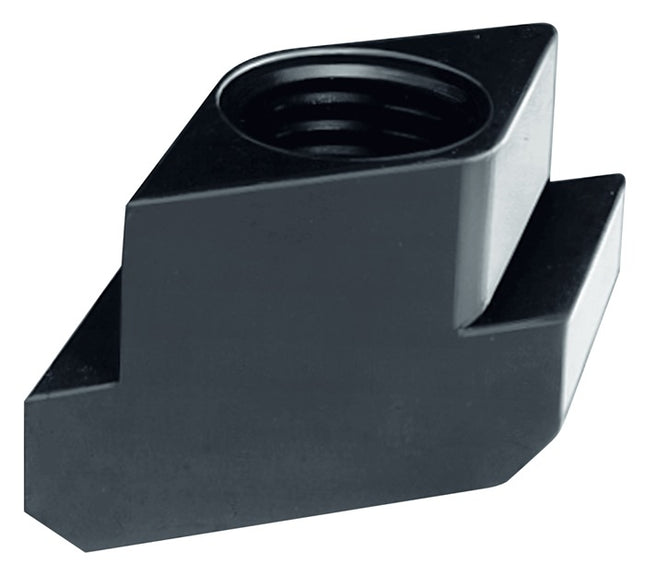

AMF AMF T-slot nut no. 510 T-slot 22 mm M16 ( 4000603185 )
Thu, 09/18/2025
Scope of Delivery: - T-slot nut no. 510 T-slot 22 mm M16 Product Description: rhombic - hardened and tempered - due to the reduced contact surface in the T-slot, the load capacity is lower than with the comparable DIN 508 sizes - Special product advantages: Rhombus T-nuts can be inserted into the T-slot from above. Particularly useful for long T-slots or if the machine table layout does not allow clamping screws or T-nuts to be inserted from the side Technical Data: - A: 21.7mm - D: M16 - K: 14mm - E: 35mm - H: 28mmFor commercial use, please observe the building regulations!
CHF 23.79
-

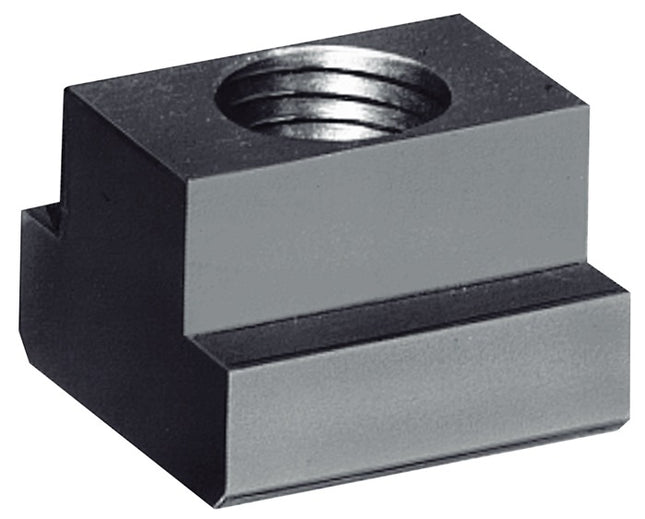

AMF AMF T-slot nut (DIN 508) Factory standard T-slot 22 mm M16 ( 4000603169 )
Thu, 09/18/2025
Scope of Delivery: - T-slot nut (DIN 508) Factory standard T-slot 22 mm M16 Product Description: hardened and tempered - strength class 10 - full load capacity of the nut for T-slot can only be achieved if the screw connection is made over the entire thread length Technical Data: - A: 21.7mm - D: M16 - K: 14mm - E: 35mm - H: 28mmFor commercial use, please observe the building regulations!
CHF 16.74
-
AMF AMF T-slot nut (DIN 508) Factory standard T-slot 14 mm M8 ( 4000603161 )
Thu, 09/18/2025
Scope of Delivery: - T-slot nut (DIN 508) Factory standard T-slot 14 mm M8 Product Description: hardened and tempered - strength class 10 - full load capacity of the nut for T-slot can only be achieved if the screw connection is made over the entire thread length Technical Data: - A: 13.7mm - D: M8 - K: 8mm - E: 22mm - H: 16mmFor commercial use, please observe the building regulations!
CHF 10.72
-
AMF AMF T-slot nut (DIN 508) Factory standard T-slot 12 mm M8 ( 4000603160 )
Thu, 09/18/2025
Scope of Delivery: - T-slot nut (DIN 508) Factory standard T-slot 12 mm M8 Product Description: hardened and tempered - strength class 10 - full load capacity of the nut for T-slot can only be achieved if the screw connection is made over the entire thread length Technical Data: - A: 11.7mm - D: M8 - K: 7mm - E: 18mm - H: 14mmFor commercial use, please observe the building regulations!
CHF 10.39
-

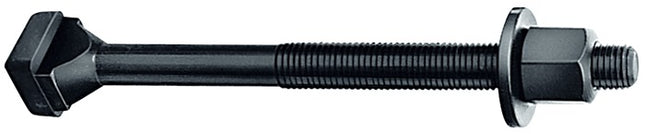

AMF AMF T-slot screw DIN 787 T-slot 14 mm M12 Length 63 mm ( 4000833317 )
Thu, 09/18/2025
Scope of Delivery: - T-slot screw DIN 787 T-slot 14 mm M12 Length 63 mm Product Description: complete with hexagon nut DIN 6330B and washer DIN 6340 - forged - T-slot guide milled - rolled thread - M6 to M12 hardened and tempered to strength class 10.9 Technical Data: - A: 13.7mm - D: M12 - Quality: Grade 10.9 - L: 63mm - B: 45mm - K: 8mm - E: 22mmFor commercial use, please observe the building regulations!
CHF 17.45
-
AMF AMF T-slot screw DIN 787 T-slot 12 mm M12 Length 63 mm ( 4000833310 )
Thu, 09/18/2025
Scope of Delivery: - T-slot screw DIN 787 T-slot 12 mm M12 Length 63 mm Product Description: complete with hexagon nut DIN 6330B and washer DIN 6340 - forged - T-slot guide milled - rolled thread - M6 to M12 hardened and tempered to strength class 10.9 Technical Data: - A: 11.7mm - D: M12 - Quality: Grade 10.9 - L: 63mm - B: 40mm - K: 7mm - E: 18mmFor commercial use, please observe the building regulations!
CHF 17.35
-
AMF AMF T-slot screw DIN 787 T-slot 14 mm M12 Length 100 mm ( 4000833319 )
Scope of Delivery: - T-slot screw DIN 787 T-slot 14 mm M12 Length 100 mm Product Description: complete with hexagon nut DIN 6330B and washer DIN 6340 - forged - T-slot guide milled - rolled thread - M6 to M12 hardened and tempered to strength class 10.9 Technical Data: - A: 13.7mm - D: M12 - Quality: Grade 10.9 - L: 100mm - B: 65mm - K: 8mm - E: 22mmFor commercial use, please observe the building regulations!
-

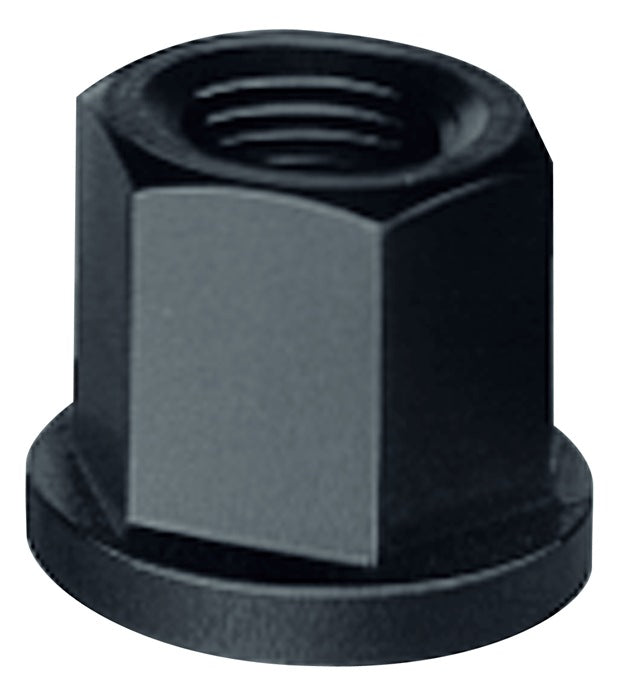

AMF AMF Hexagon nut DIN 6331 M24 Width across flats 36 mm ( 4000833418 )
Thu, 09/18/2025
Scope of Delivery: - Hexagon nut DIN 6331 M24 Width across flats 36 mm Product Description: with collar - hardened and tempered - strength class 10 - turned and milled Technical Data: - Width across flats: 36mmFor commercial use, please observe the building regulations!
CHF 18.43
-
AMF AMF Hexagon nut DIN 6331 M20 Width across flats 30 mm ( 4000833415 )
Thu, 09/18/2025
Scope of Delivery: - Hexagon nut DIN 6331 M20 Width across flats 30 mm Product Description: with collar - hardened and tempered - strength class 10 - turned and milled Technical Data: - Width across flats: 30mmFor commercial use, please observe the building regulations!
CHF 13.83
-
AMF AMF Hexagon nut DIN 6331 M16 Width across flats 24 mm ( 4000833413 )
Thu, 09/18/2025
Scope of Delivery: - Hexagon nut DIN 6331 M16 Width across flats 24 mm Product Description: with collar - hardened and tempered - strength class 10 - turned and milled Technical Data: - Width across flats: 24mmFor commercial use, please observe the building regulations!
CHF 11.91
-

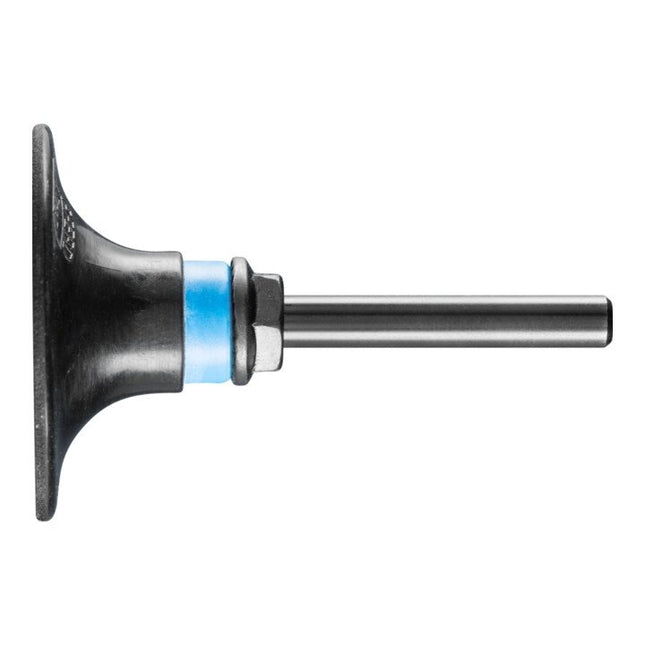

PFERD PFERD backing pad COMBIDISC SBH Ø 50 mm ( 4000844506 )
Thu, 09/18/2025
Scope of Delivery: - Backing pad COMBIDISC SBH Ø 50 mm Product Description: suitable holder for COMBIDISC grinding tools - shank Ø 6 mm Technical Data: - nanFor commercial use, please observe the building regulations!
CHF 30.33
-

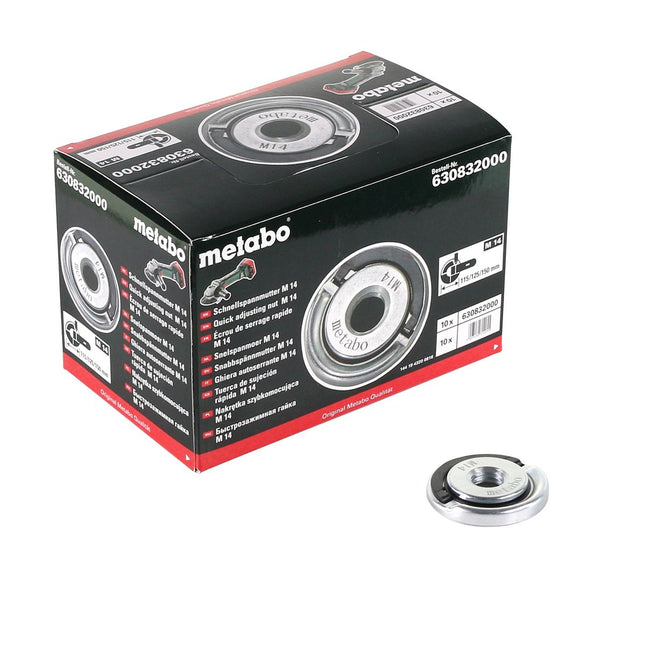

Metabo Metabo Schnellspannmutter M14 10 Stk. ( 630832000 ) für Winkelschleifer bis Ø 150mm
Lieferumfang:- 10x Metabo Schnellspannmutter M14Produktbeschreibung:Die Metabo Schnellspannmutter mit dem Gewindeanschluss M14 ist für Winkelschleifer bis Ø 150 mm geeignet. Dank der Schnellspannmutter ist ein werkzeugloser Scheibenwechsel am Winkelschleifer in Sekunden problemlos möglich. Durch das attraktive Thekendisplay wird das Design aufgehübscht. Die Verarbeitung verspricht eine lange Lebensdauer und eine hohe Wiederstandsfähigkeit.Technische Daten:Hersteller: MetaboHerstellernummer: 630832000Gewindeanschluss: M14Kompatibel: Winkelschleifer bis Ø 150mmBei gewerblicher Nutzung beachten Sie bitte die Bauvorschriften!
