ASSA ABLOY Assa Abloy detent locking unit A158 ( 3000255025 ) for slide channel G-CO
Wed, 09/24/2025
Scope of Delivery: - 1x ASSA ABLOY detent locking unit for slide channel G-CO Product Description: for installation on the G-CO slide channel model - hold-open point can be travelled over, no limit to the opening angle - hold-open point adjustable within a range of approx. 80-130° - infinitely variable holding force - not suitable for fire and smoke protection doors - mechanical hold-open device for doors that need to be held open temporarily Technical Data: - Strength: adjustable - Design: mechanical - Opening angle max.: 130 ° - Suitable for: Slide channel G-CO - Brand: ASSA ABLOYPlease observe the building regulations for commercial use!For commercial use, please observe the building regulations!
CHF 45.02
-

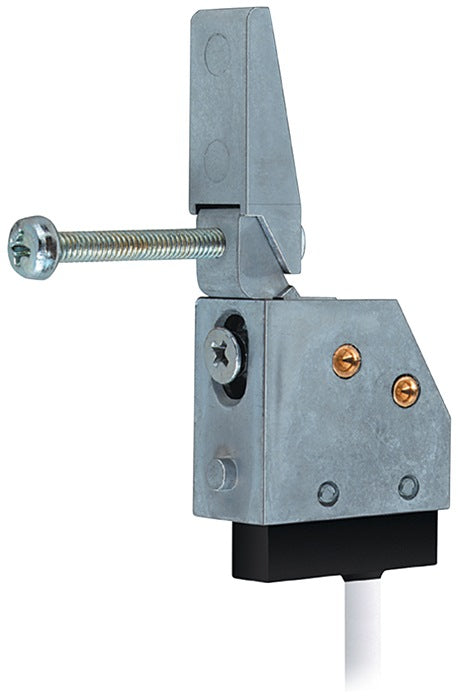

ASSA ABLOY ASSA ABLOY bolt switch contact 878 without striking plate ( 3000251812 )
Wed, 09/24/2025
Scope of Delivery: - Bolt switch contact 878 without striking plate Product Description: without striking plate - for electric strikes - for monitoring the locking of doors - messages can be evaluated or displayed on alarm systems, building monitoring systems, control panels, visual and acoustic signalling devices - protection class IP54 - operating voltage 25 V AC/DC - 4 m connection cable - potential-free changeover contact Technical Data: - Protection class: IP54 - Version: without striking plate - Operating voltage: 25V AC/DCFor commercial use, please observe the building regulations!
CHF 58.35
-

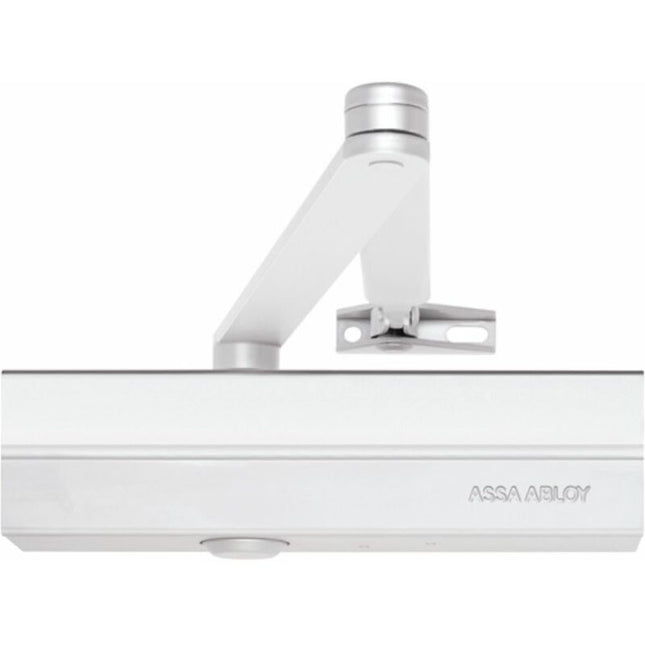

ASSA ABLOY ASSA ABLOY scissor door closer DC 200 silver EN 2-4 ( 3000255168 )
Wed, 09/24/2025
Scope of Delivery: - Scissor door closer DC 200 silver EN 2-4 Product Description: tested to DIN EN 1154 - can be used with integrated mounting plate for fire and smoke protection doors - max. height adjustment infinitely variable 14 mm - closing force infinitely variable - closing speed, latching action and opening damping infinitely variable from the front - can be used DIN left and DIN right - supplied without link arm - please order separately Technical Data: - nanFor commercial use, please observe the building regulations!
CHF 55.95
-

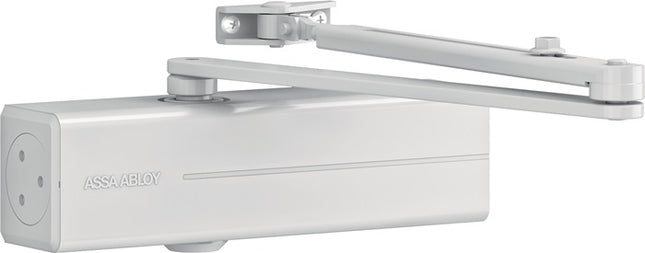

ASSA ABLOY ASSA ABLOY scissor door closer DC 200 white EN 2-4 ( 3000255169 )
Wed, 09/24/2025
Scope of Delivery: - Scissor door closer DC 200 white EN 2-4 Product Description: tested to DIN EN 1154 - can be used with integrated mounting plate for fire and smoke protection doors - max. height adjustment infinitely variable 14 mm - closing force infinitely variable - closing speed, latching action and opening damping infinitely variable from the front - can be used DIN left and DIN right - supplied without link arm - please order separately Technical Data: - nanFor commercial use, please observe the building regulations!
CHF 55.96
-

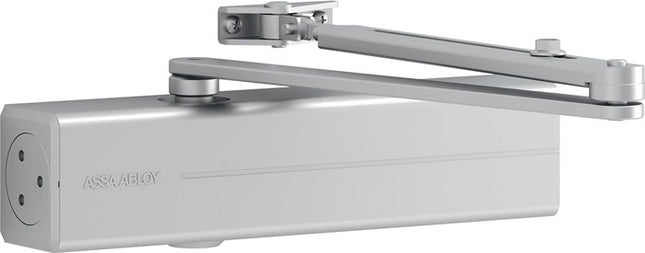

ASSA ABLOY ASSA ABLOY DC 300 scissor door closer silver EN 3-6 ( 3000255170 )
Wed, 09/24/2025
Scope of Delivery: - Scissor door closer DC 300 silver EN 3-6 Product Description: tested to DIN EN 1154 - can be used for fire and smoke protection doors with integrated mounting plate - max. height adjustment steplessly 14 mm - closing force steplessly adjustable closing speed - latching action and opening damping steplessly adjustable from the front - can be used DIN left and DIN right - dimensions: (W x H x D) 260 x 60 x 47 mm - supplied without rods - please order separately Technical Data: - nanFor commercial use, please observe the building regulations!
CHF 98.85
-
ASSA ABLOY ASSA ABLOY DC700G-FT standard installation hinge side safety slide channel door closer ( 3000255010 )
Scope of Delivery: - DC700G-FT standard installation hinge side safety slide channel door closer Product Description: Door closer with extended mounting plate and integrated latch bolt, slide channel with integrated escape door strike complete with cover for door closer and slide channel - suitable for retrofitting on fire doors with slide channel door closer and fixing in accordance with drilling pattern DIN EN 1154 Supplement 1:2003-11 consisting of: Overhead door closer with Cam-Motion® technology - tested in accordance with DIN EN 1154 - fulfils the requirements of DIN SPEC 1104 due to sharply decreasing opening torque - max. height compensation infinitely variable 14 mm. Height compensation infinitely variable 14 mm - Closing force infinitely variable - Closing speed, latching action and opening damping infinitely variable from the front Extended mounting plate for fire and smoke protection doors, fixing in accordance with DIN EN 1154 supplement 1 - To accommodate the Assa Abloy DC700 door closer - Latch bolt lock 807-10 mounted on mounting plate - Latch bolt exclusion adjustable: vertical + 5 mm - Mounting bracket latch bolt lock adjustable: horizontal (-3 mm/+6 mm) - vertical in 4 mm steps (-4/ 0/ +4/ +8) - mounting plate complete with end caps and cover anodised aluminium Extended slide channel with integrated effeff-escape door strike 332 - complete with anodised aluminium cover - escape door strike adjustable via FaFix® 2 mm - with 4 m connection cable for connection to effeff escape door control units - system approval in accordance with EltVTR with effeff escape door control units - rated voltage 24V DC +/- 10% - rated current 95 mA DIN left and DIN right can be used - recommended door width: min. 850 mm - max. 1200 mm Technical Data: - nanFor commercial use, please observe the building regulations!
-

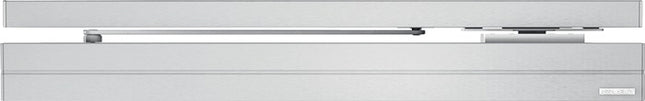

ASSA ABLOY ASSA ABLOY DC700G-FT-BGS standard installation opposite hinge side ( 3000255710 )
Scope of Delivery: - Safety slide channel door closer DC700G-FT-BGS Standard installation opposite hinge side Product Description: Door closer with extended mounting plate and integrated latch bolt, slide channel with integrated escape door strike complete with cover for door closer and slide channel - suitable for retrofitting to fire doors with slide channel door closer and fixing in accordance with drilling pattern DIN EN 1154 Supplement 1:2003-11 consisting of: Overhead door closer with Cam-Motion® technology - tested in accordance with DIN EN 1154 - fulfils the requirements of DIN SPEC 1104 due to sharply decreasing opening torque - max. height compensation infinitely variable 14 mm. Height compensation infinitely variable 14 mm - Closing force infinitely variable - Closing speed, latching action and opening damping infinitely variable from the front Extended mounting plate for fire and smoke protection doors, fixing in accordance with DIN EN 1154 supplement 1 - To accommodate the Assa Abloy DC700 door closer - Latch bolt lock 807-10 mounted on mounting plate - Latch bolt exclusion adjustable: vertical + 5 mm - Mounting bracket latch bolt lock adjustable: horizontal (-3 mm/+6 mm) - vertical in 4 mm steps (-4/ 0/ +4/ +8) - mounting plate complete with end caps and cover anodised aluminium Extended slide channel with integrated effeff-escape door strike 332 - complete with anodised aluminium cover - escape door strike adjustable via FaFix® 2 mm - with 4 m connection cable for connection to effeff escape door control units - system approval according to EltVTR with effeff escape door control units - rated voltage 24V DC +/- 10% - rated current 95 mA can be used DIN left and DIN right - recommended door width: min. 850 mm - max. 1200 mm Technical Data: - nanFor commercial use, please observe the building regulations!
-

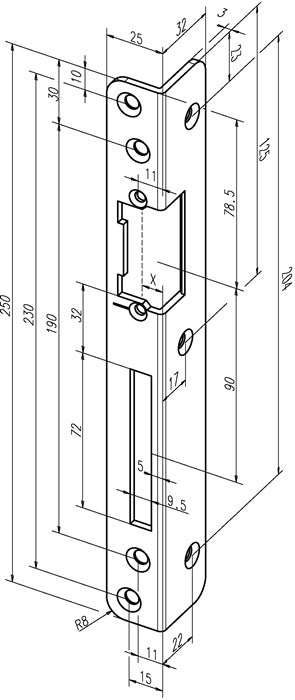

ASSA ABLOY Assa Abloy security angle striking plate 069 ( 3324034074 ) thickness 3 mm DIN right
Wed, 09/24/2025
Scope of Delivery: - 1x ASSA ABLOY safety angle striking plate, thickness 3 mm Product Description: with latch and deadbolt cut-out - metre markings - 3 mm material thickness - with additional fixing hole - for common eff-eff standard door opener models except ProFix® variants Technical Data: - Striking plate design: Angled striking plate - suitable for: E-opener - Stop direction: DIN right - Material: steel - Surface: white - Shank width: 25 / 32 mm - Thickness: 3 mm - Brand: ASSA ABLOYPlease observe the building regulations for commercial use!For commercial use, please observe the building regulations!
CHF 20.76
-
ASSA ABLOY Assa Abloy security angle striking plate 069 ( 3324034075 ) thickness 3 mm DIN left
Scope of Delivery: - 1x ASSA ABLOY safety angle striking plate, thickness 3 mm Product Description: with latch and deadbolt cut-out - metre markings - 3 mm material thickness - with additional fixing hole - for common eff-eff standard door opener models except ProFix® variants Technical Data: - Striking plate design: Angled striking plate - suitable for: E-opener - Stop direction: DIN left - Material: steel - Surface: ducat gold - Shank width: 25 / 32 mm - Thickness: 3 mm - Brand: ASSA ABLOYPlease observe the building regulations for commercial use!For commercial use, please observe the building regulations!
-
ASSA ABLOY ASSA ABLOY security angle striking plate 069 Thickness 3 mm ( 3324034025 )
Wed, 09/24/2025
Scope of Delivery: - Security angle striking plate 069 Thickness 3 mm Product Description: with latch and deadbolt cut-out - metre markings - 3 mm material thickness - with additional fixing hole - for common eff-eff standard door opener models except ProFix® variants Technical Data: - Striking plate design: Angled striking plate - suitable for: E-openerFor commercial use, please observe the building regulations!
CHF 22.79
-

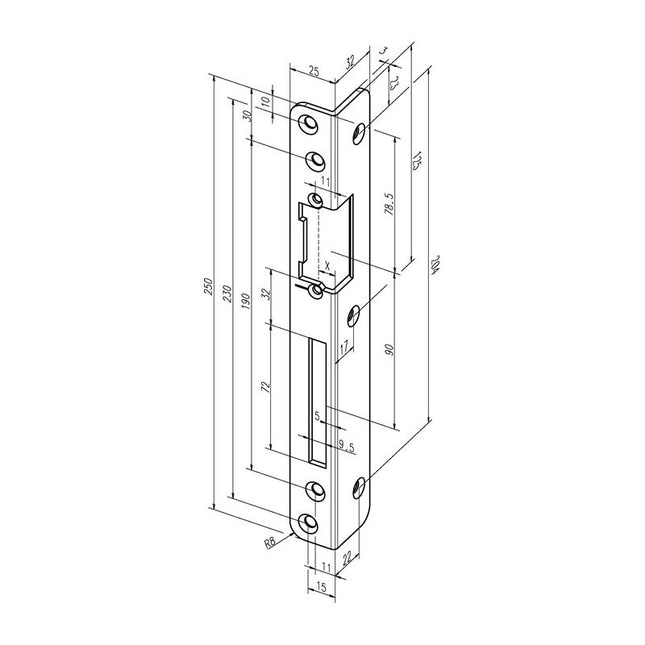

ASSA ABLOY ASSA ABLOY security angle striking plate 069 Thickness 3 mm ( 3324034072 )
Wed, 09/24/2025
Scope of Delivery: - Security angle striking plate 069 Thickness 3 mm Product Description: with latch and deadbolt cut-out - metre markings - 3 mm material thickness - with additional fixing hole - for common eff-eff standard door opener models except ProFix® variants Technical Data: - Striking plate design: Angled striking plate - suitable for: E-openerFor commercial use, please observe the building regulations!
CHF 22.79
-
ASSA ABLOY ASSA ABLOY security angle striking plate 069 Thickness 3 mm ( 3324034073 )
Wed, 09/24/2025
Scope of Delivery: - Security angle striking plate 069 Thickness 3 mm Product Description: with latch and deadbolt cut-out - metre markings - 3 mm material thickness - with additional fixing hole - for common eff-eff standard door opener models except ProFix® variants Technical Data: - Striking plate design: Angled striking plate - suitable for: E-openerFor commercial use, please observe the building regulations!
CHF 20.76
