Description

SKU: 76453
EAN: 4042203690158

Scope of Delivery:

- DC700G-FT standard installation hinge side safety slide channel door closer

Product Description:

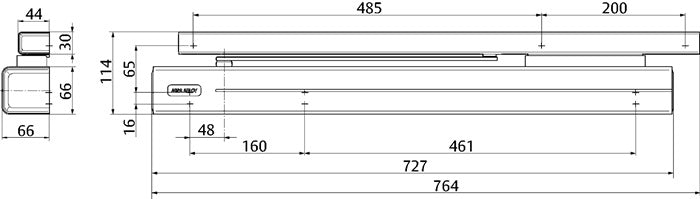

Door closer with extended mounting plate and integrated latch bolt, slide channel with integrated escape door strike complete with cover for door closer and slide channel - suitable for retrofitting on fire doors with slide channel door closer and fixing in accordance with drilling pattern DIN EN 1154 Supplement 1:2003-11 consisting of: Overhead door closer with Cam-Motion® technology - tested in accordance with DIN EN 1154 - fulfils the requirements of DIN SPEC 1104 due to sharply decreasing opening torque - max. height compensation infinitely variable 14 mm. Height compensation infinitely variable 14 mm - Closing force infinitely variable - Closing speed, latching action and opening damping infinitely variable from the front Extended mounting plate for fire and smoke protection doors, fixing in accordance with DIN EN 1154 supplement 1 - To accommodate the Assa Abloy DC700 door closer - Latch bolt lock 807-10 mounted on mounting plate - Latch bolt exclusion adjustable: vertical + 5 mm - Mounting bracket latch bolt lock adjustable: horizontal (-3 mm/+6 mm) - vertical in 4 mm steps (-4/ 0/ +4/ +8) - mounting plate complete with end caps and cover anodised aluminium Extended slide channel with integrated effeff-escape door strike 332 - complete with anodised aluminium cover - escape door strike adjustable via FaFix® 2 mm - with 4 m connection cable for connection to effeff escape door control units - system approval in accordance with EltVTR with effeff escape door control units - rated voltage 24V DC +/- 10% - rated current 95 mA DIN left and DIN right can be used - recommended door width: min. 850 mm - max. 1200 mm

Technical Data:

- nan

For commercial use, please observe the building regulations!

Read more

Product form

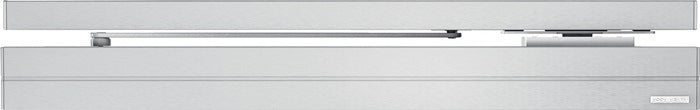

ASSA ABLOY DC700G-FT standard installation hinge side safety slide channel door closer ( 3000255010 )

  • Vendor ASSA ABLOY
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure

Information on importing to Switzerland! 🇨🇭🇱🇮 We take care of customs clearance. You will receive your package as normal within the delivery time and you don't have to worry about anything. Your invoice includes Swiss VAT. Placing an order with us feels like a normal domestic order for you. The same goes for returns!

CHF 1,059.99
incl. VAT, plus shipping
