AMF AMF Locking clamp no. 6848H size 3 ( 4123682300 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 3 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 93mm - C: 19mm - D: 6.5mm - E max: 96mm - L1: 169-216mm - E min: 48.6mm - H1: 70mm - H2: 135.5mm - Arm length: 93mm - B max.: 101mm - Bore Ø: 6.5mm - F: 14mm - B min.: 53.5mm - P: 35mm - K: 8.0mm - M: 24.5-32.0mm - H: 19mm - N: 48mm - D1: 6mmFor commercial use, please observe the building regulations!
CHF 45.08
-
AMF AMF Locking clamp no. 6848H size 4 ( 4123682400 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 4 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 111mm - C: 32mm - D: 8.5mm - E max: 123mm - L1: 209-273mm - E min: 59mm - H1: 94.5mm - H2: 171.5mm - Arm length: 111mm - B max.: 130mm - Bore Ø: 8.5mm - F: 19mm - B min: 66mm - P: 53.5mm - K: 9.5mm - M: 35.0-46.0mm - H: 26mm - N: 64.3mm - D1: 8mmFor commercial use, please observe the building regulations!
CHF 73.82
-
AMF AMF Locking clamp no. 6848V size 2 ( 4123683200 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848V size 2 - Delivery incl. counterholder Product Description: Vertical Technical Data: - C: 13mm - D: 5.2mm - E max: 30mm - G: 19mm - L1: 91mm - E min: 5mm - H1: 47mm - H2: 99mm - Arm length: 91 mm - B max.: 49mm - Bore Ø: 5.2mm - F: 11mm - B min.: 24mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 4.5mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
CHF 32.25
-
AMF AMF Locking clamp no. 6848V size 3 ( 4123683300 )
Scope of Delivery: - Locking clamp no. 6848V size 3 - Delivery incl. counterholder Product Description: Vertical Technical Data: - C: 19mm - D: 6.5mm - E max: 36mm - G: 25mm - L1: 125mm - E min: 7mm - H1: 70mm - H2: 136mm - Arm length: 125 mm - B max.: 64mm - Bore Ø: 6.5mm - F: 14mm - B min.: 34.5mm - P: 35mm - K: 8mm - M: 24.5-32.0mm - H: 6mm - N: 48mm - D1: 6mmFor commercial use, please observe the building regulations!
-
AMF AMF Verschlussspanner Nr. 6848V Größe 4 ( 4123683400 )
Lieferumfang:Verschlussspanner Nr. 6848V Größe 4Lieferung inkl. GegenhalterProduktbeschreibung:vertikal Technische Daten: C: 32mm D: 8,5mm E max.: 47mm G: 36mm L1: 151mm E min.: 9mm H1: 94,5mm H2: 168mm Armlänge: 151 mm B max.: 81mm Bohrungs-Ø: 8,5mm F: 19mm B min.: 43mm P: 53,5mm K: 9,5mm M: 35,0-46,0mm H: 8mm N: 64,5mm D1: 8mm
-
AMF AMF Locking clamp no. 6849PH ( 4000604390 ) Size 5 heavy
Sat, 09/20/2025
Scope of Delivery: - 1x AMF Locking clamp size 5 - Delivery incl. counterholder Product Description: heavy - for high holding forces - hardened and ground bolts, permanently greased, mounted in bearing bushes with retaining rings - the clamping bolt is centred with retaining rings - base, lever arm and counterholder are made of cast steel, burnished - clamping bracket, clamping bolt and nuts are hardened and tempered and galvanised Technical Data: - S: 47mm - C: 57mm - D: 12mm - G: 10,5mm - L1: 164mm - H1: 146mm - Arm length: 164mm - L: 86mm - Bore Ø: 10.5mm - F: 35mm - B: 49-114mm - Feature: heavy - K: 12.5mm - E: 28-93mm - M: 57mm - H: 32mm - N: 82mm - Size: 5 - Tensile force: 27 kN - Adjustment travel: 65 mm - Bore distance inside: 28-93 mm - Counterholder height: 32 mm - Brand: AMF - Material: Burnished cast steel - Design: horizontal - Span: 49-114 mmFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
CHF 134.07
-
AMF AMF Locking clamp no. 6849PH size 4 ( 4000604389 )
Scope of Delivery: - Locking clamp no. 6849PH size 4 - Delivery incl. counterholder Product Description: heavy - for high holding forces - hardened and ground bolts, permanently greased, mounted in bearing bushes with retaining rings - the clamping bolt is centred with retaining rings - base, lever arm and counterholder are made of cast steel, burnished - clamping bracket, clamping bolt and nuts are hardened and tempered and galvanised Technical Data: - S: 44mm - C: 45mm - D: 10mm - G: 8,5mm - L1: 130mm - H1: 122mm - Arm length: 130mm - L: 68mm - Bore Ø: 8.5mm - F: 28mm - B: 42-107mm - Feature: heavy - K: 12mm - E: 24-90mm - M: 45mm - H: 26mm - N: 64mmFor commercial use, please observe the building regulations!
-
AMF AMF Adjustable face spanner 758 ( 4000824811 ) for hole spacing 11 - 60 mm
Scope of Delivery: - 1x AMF Adjustable face spanner for hole spacing 11 - 60 mm Product Description: for two-hole nuts - special steel - burnished - adjustable - with electrically welded studs Technical Data: - Weight: 140g - Material: special steel - for drill holes Ø: 4 mm - Pin Ø: 3.9 mm - Total length: 160 mm - for hole spacing: 11 - 60 mm - Brand: AMFFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
-
AMF AMF Adjustable face spanner 758 for hole spacing 11 - 60 mm ( 4000824810 )
Sat, 09/20/2025
Scope of Delivery: - Adjustable face spanner 758 for hole spacing 11 - 60 mm Product Description: for two-hole nuts - special steel - burnished - adjustable - with electrically welded studs Technical Data: - Weight: 140g - Material: special steelFor commercial use, please observe the building regulations!
CHF 17.16
-

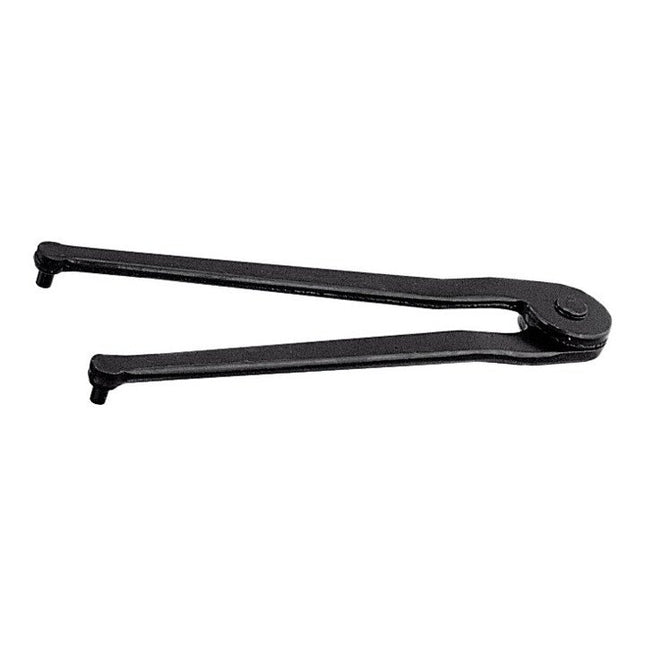

AMF AMF Adjustable face spanner 758 for hole spacing 11 - 60 mm ( 4000824812 )
Sat, 09/20/2025
Scope of Delivery: - Adjustable face spanner 758 for hole spacing 11 - 60 mm Product Description: for two-hole nuts - special steel - burnished - adjustable - with electrically welded studs Technical Data: - Weight: 140g - Material: special steelFor commercial use, please observe the building regulations!
CHF 17.29
-
AMF AMF Adjustable face spanner 758 for hole spacing 14 - 100 mm ( 4000824813 )
Sat, 09/20/2025
Scope of Delivery: - Adjustable face spanner 758 for hole spacing 14 - 100 mm Product Description: for two-hole nuts - special steel - burnished - adjustable - with electrically welded studs Technical Data: - Weight: 300g - Material: special steelFor commercial use, please observe the building regulations!
CHF 21.66
-
AMF AMF Adjustable face spanner 758 for hole spacing 14 - 100 mm ( 4000824814 )
Sat, 09/20/2025
Scope of Delivery: - Adjustable face spanner 758 for hole spacing 14 - 100 mm Product Description: for two-hole nuts - special steel - burnished - adjustable - with electrically welded studs Technical Data: - Weight: 300g - Material: special steelFor commercial use, please observe the building regulations!
CHF 21.72
