AMF AMF washer DIN 6340 ( 4000833442 ) for M20 screws
Sat, 09/20/2025
Scope of Delivery: - 1x AMF washer for M20 screws Product Description: tempered (350 + 80 HV30) - dimensions according to DIN, but punched and pressed flat Technical Data: - S: 6mm - D2: 50mm - D1: 21mm - for screws: M20 - Brand: AMF - Bore Ø: 21 mmFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
CHF 9.26
-
AMF AMF washer DIN 6340 ( 4000833444 ) for screws M24
Sat, 09/20/2025
Scope of Delivery: - 1x AMF washer for M24 screws Product Description: tempered (350 + 80 HV30) - dimensions according to DIN, but punched and pressed flat Technical Data: - S: 8mm - D2: 60mm - D1: 25mm - for screws: M24 - Brand: AMF - Bore Ø: 25 mmFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
CHF 10.39
-
AMF AMF extension nut no. 6334 M10 width across flats 16 mm ( 4000833422 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M10 width across flats 16 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 16mmFor commercial use, please observe the building regulations!
CHF 9.23
-
AMF AMF extension nut no. 6334 M10 width across flats 17 mm ( 4000833423 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M10 width across flats 17 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter For this article, the spanner width is according to the old DIN standard Technical Data: - Width across flats: 17mmFor commercial use, please observe the building regulations!
CHF 9.23
-
AMF AMF extension nut no. 6334 M12 width across flats 18 mm ( 4000833424 )
Scope of Delivery: - Extension nut no. 6334 M12 width across flats 18 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 18mmFor commercial use, please observe the building regulations!
-
AMF AMF extension nut no. 6334 M12 width across flats 19 mm ( 4000833425 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M12 width across flats 19 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter For this article, the spanner width is according to the old DIN standard Technical Data: - Width across flats: 19mmFor commercial use, please observe the building regulations!
CHF 9.40
-
AMF AMF extension nut no. 6334 M16 spanner width 24 mm ( 4000833428 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M16 Width across flats 24 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 24mmFor commercial use, please observe the building regulations!
CHF 11.10
-
AMF AMF extension nut no. 6334 M20 width across flats 30 mm ( 4000833430 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M20 Width across flats 30 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 30mmFor commercial use, please observe the building regulations!
CHF 14.49
-
AMF AMF extension nut no. 6334 M24 spanner width 36 mm ( 4000833433 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M24 Width across flats 36 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 36mmFor commercial use, please observe the building regulations!
CHF 19.31
-
AMF AMF Locking clamp no. 6847 ( 4000833522 ) size 5
Scope of Delivery: - 1x AMF Locking clamp size 5 Product Description: galvanised - passivated Technical Data: - S: 147mm - B1: 26-40mm - C: 29mm - B2: 57-71mm - E2: 58-73mm - D: 10,75mm - E1: 27-42mm - G: 11.2mm - L1: 189.5mm - H1: 69mm - H2: 282mm - Arm length: 189.5mm - L: 55mm - Bore Ø: 11.2mm - K: 13mm - R: 8mm - M: 55.5-63mm - H: 49mm - N: 85mm - Size: 5 - Tensile force: 5 kN - Adjustment range: 14 mm - Bore distance inside: 27-42 / 58-73 mm - Height clamped: 69 mm - Height open: 282 mm - Counterholder height: 49 mm - Brand: AMF - Material: galvanised - Design: horizontal - Span: 26-40 / 57-71 mmFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
-

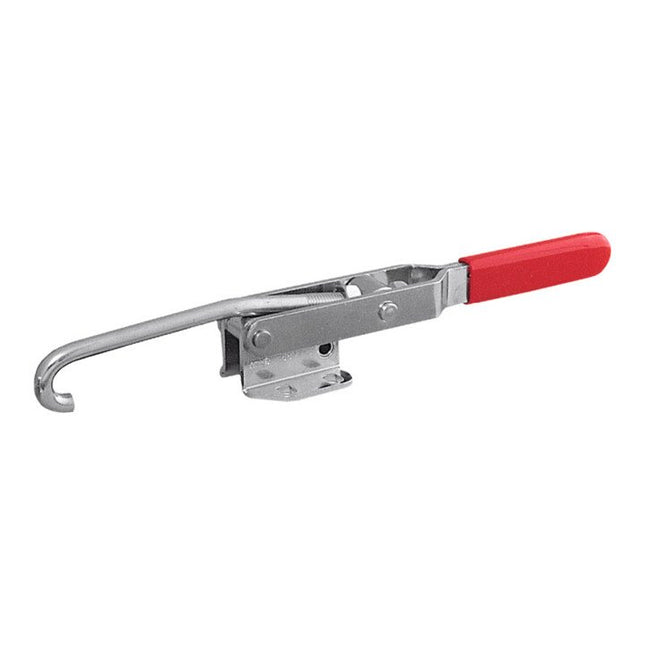

AMF AMF Locking clamp no. 6847 size 3 ( 4000833521 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6847 size 3 Product Description: galvanised - passivated Technical Data: - S: 98mm - B1: 32-44mm - C: 19mm - B2: 65-77mm - E2: 72-84mm - D: 7.1mm - E1: 39-51mm - G: 5.5mm - L1: 123.5mm - H1: 36mm - H2: 181mm - Arm length: 123.5mm - L: 40mm - Bore Ø: 5.5mm - K: 13mm - R: 5.5mm - M: 31.5-35.5mm - H: 22.7mm - N: 45mmFor commercial use, please observe the building regulations!
CHF 41.81
-
AMF AMF Locking clamp no. 6848H size 2 ( 4123682200 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 2 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 69mm - C: 13mm - D: 5.2mm - E max: 72mm - L1: 125-159mm - E min: 38mm - H1: 47mm - H2: 99mm - Arm length: 69mm - B max.: 76mm - Bore Ø: 5.2mm - F: 11mm - B min.: 42mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 12mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
CHF 32.24
