Scope of Delivery:
- 1x TESTBOY voltage/continuity tester 12-690 V AC/DC
- Batteries ( 2 x type AAA) Spare batteries see art. no. 4000 901 810
Product Description:

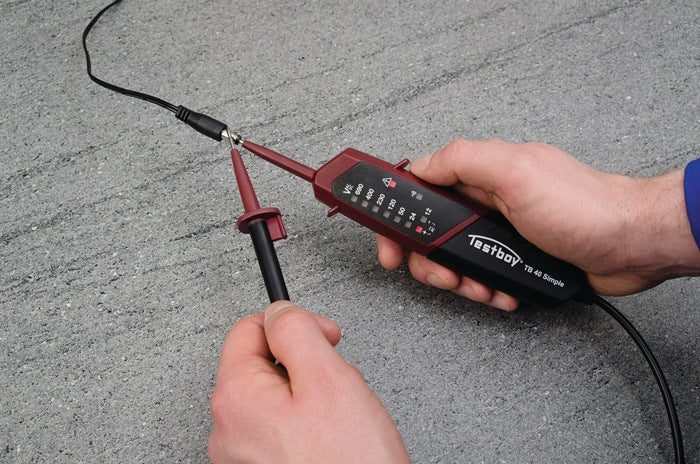

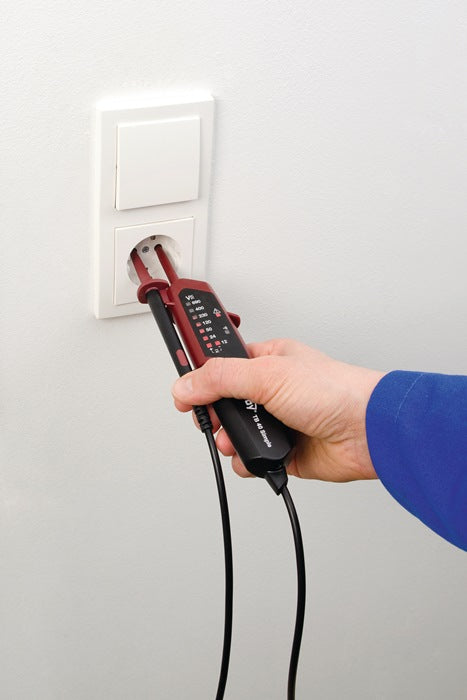

2-pole voltage tester with LED display Display: 10 LEDs for voltage, polarity, continuity and ELV - Nominal voltage range: 12 - 690 V AC/DC - Frequency range 40/70 Hz - Phase test: >100 V AC Continuity test: up to 650 kOhm (acoustic) Operating temperature: -15 °C to +45 °C Protection class: IP 54 Indication: 0.85 Un Overvoltage category: CAT IV 300 V / CAT III 600V / CAT II 690V
Technical Data:
- Continuity test: acoustic up to 650 kOhm
- Nominal voltage range: 12-690 V AC/DC
- Measurement category: CAT IV 300 V / CAT III 600 V
- Brand: TESTBOYNote on the disposal of batteries and rechargeable batteries Since we sell batteries and rechargeable batteries or devices containing batteries and rechargeable batteries, we are obliged under the Battery Act (BattG) to draw your attention to the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercuryFor commercial use, please observe the building regulations!
For commercial use, please observe the building regulations!
