Description

SKU: 17223
EAN: 4251297301462

Scope of Delivery:

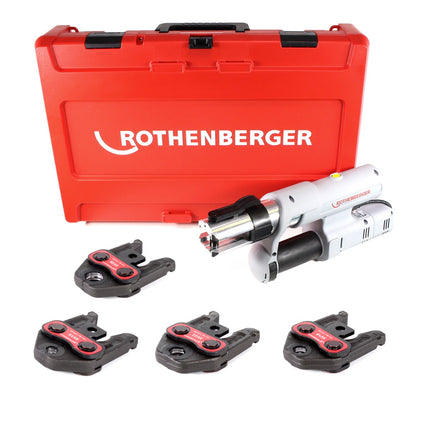

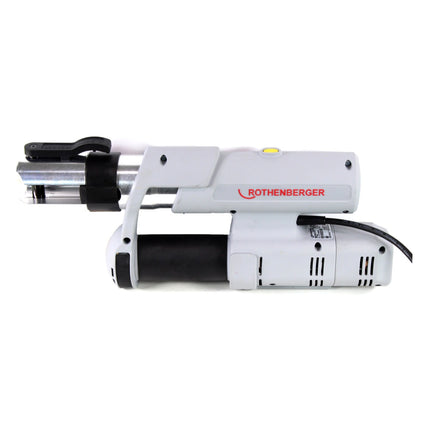

- 1x Rothenberger ROMAX AC ECO Basic 230 V pressing machine type C for mains operation ( 15705 )

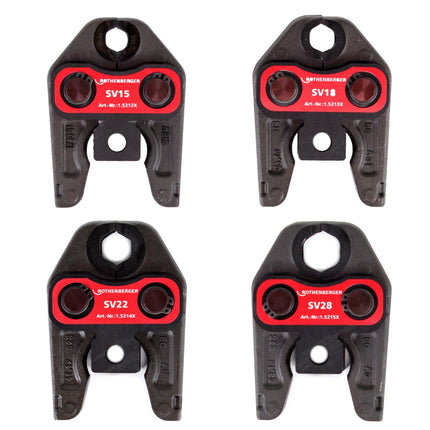

- 1x Rothenberger pressing jaw Standard SV15 for pressing machines ( 015212X )
- 1x Rothenberger pressing jaw Standard SV18 ( 015213X )
- 1x Rothenberger pressing jaw Standard SV22 ( 015214X )
- 1x Rothenberger pressing jaw Standard SV28 ( 015215X )

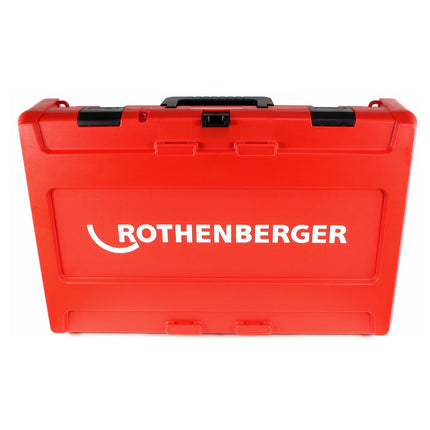

- 1x transport case with matching insert
- 1x operating manual
- 1x cloth

Product Description:

This pressing machine from Rothenberger provides constant thrust thanks to Constant Force Technology. It is electro-hydraulic with 32-34 kN piston force for mains operation for system-dependent crimping of fittings with a diameter of 12 to 110 mm. The 270° rotatable Standard pressing jaw holder is compatible with many other manufacturers. It weighs approx. 4.5 kg and is therefore light and easy to handle and suitable for series crimping of fitting connections on site. Pressing and holding the start switch starts the force-guided crimping process (force-controlled forced sequence, analogue to the specifications of leading system manufacturers). The two-switch system ( start / manual return ) ensures fatigue-free working. The device is also ergonomic thanks to the rubberised handle and balanced weight distribution. The working radius is also very wide thanks to the power cable length of 5 metres. With the pressing jaws included in the scope of delivery, the ROMAX AC ECO is ready for immediate use.

Technical Data:

- Voltage: 230 V
- Rated input power: 280 W
- Motor speed: 14000 min-1
- Piston force: 32 kN
- Pressing time (depending on nominal width): approx. 6-8 s
- Dimensions (LxWxH): 410 x 810 x 170 mm
- ROMAX weight: approx. 5 kg
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Read more

Product form

Rothenberger ROMAX AC ECO Basic 230 V pressing machine type C set "V" in transport case with pressing jaws SV 15-18-22-28

  • Vendor Rothenberger
  • Official Rothenberger retailer
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure

Information on importing to Switzerland! 🇨🇭🇱🇮 We take care of customs clearance. You will receive your package as normal within the delivery time and you don't have to worry about anything. Your invoice includes Swiss VAT. Placing an order with us feels like a normal domestic order for you. The same goes for returns!

CHF 920.81
incl. VAT, plus shipping
