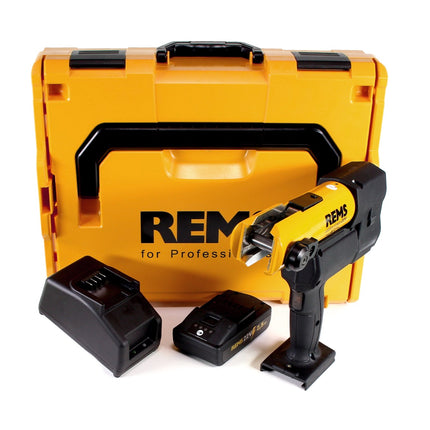

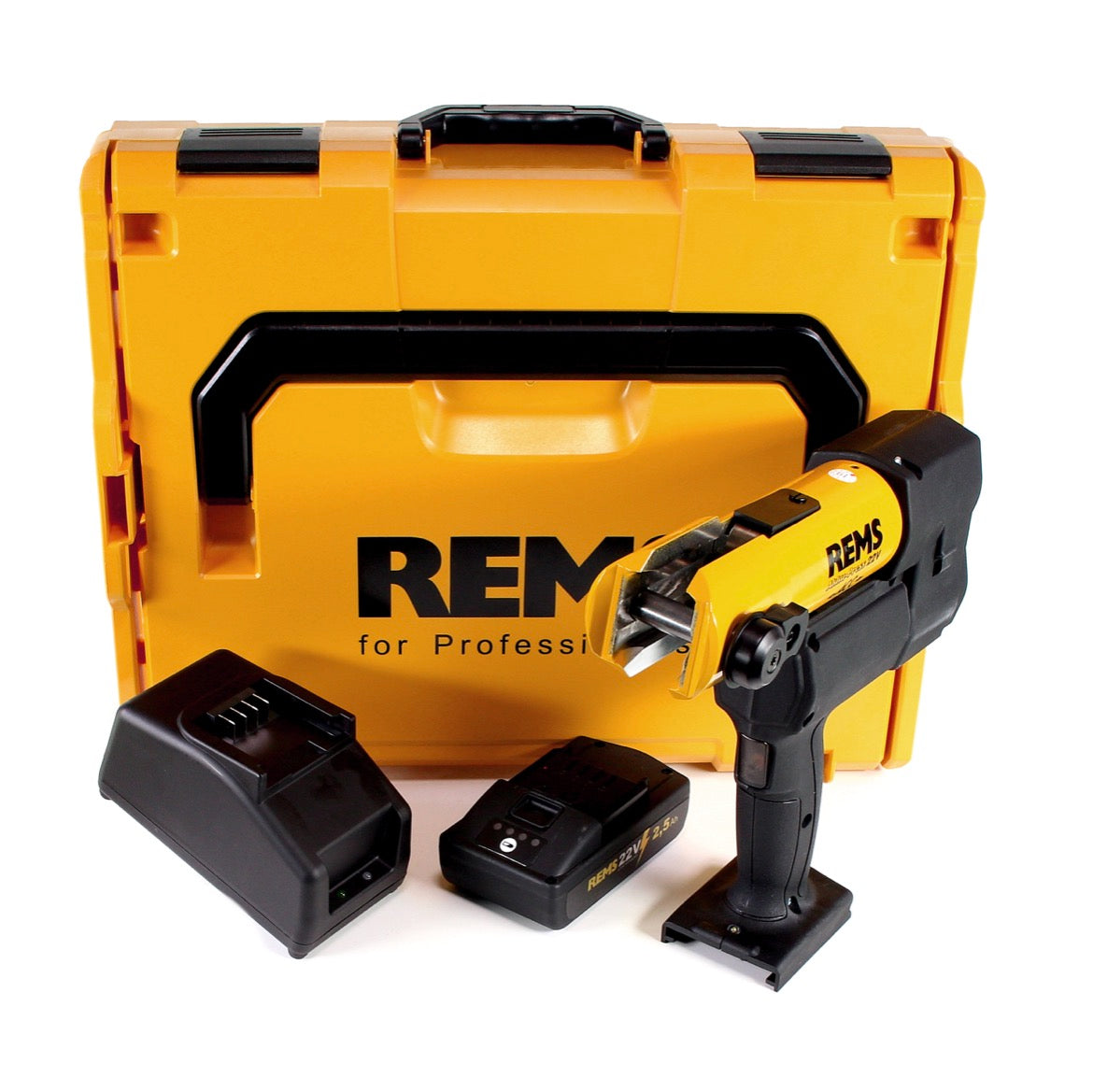

Scope of Delivery:

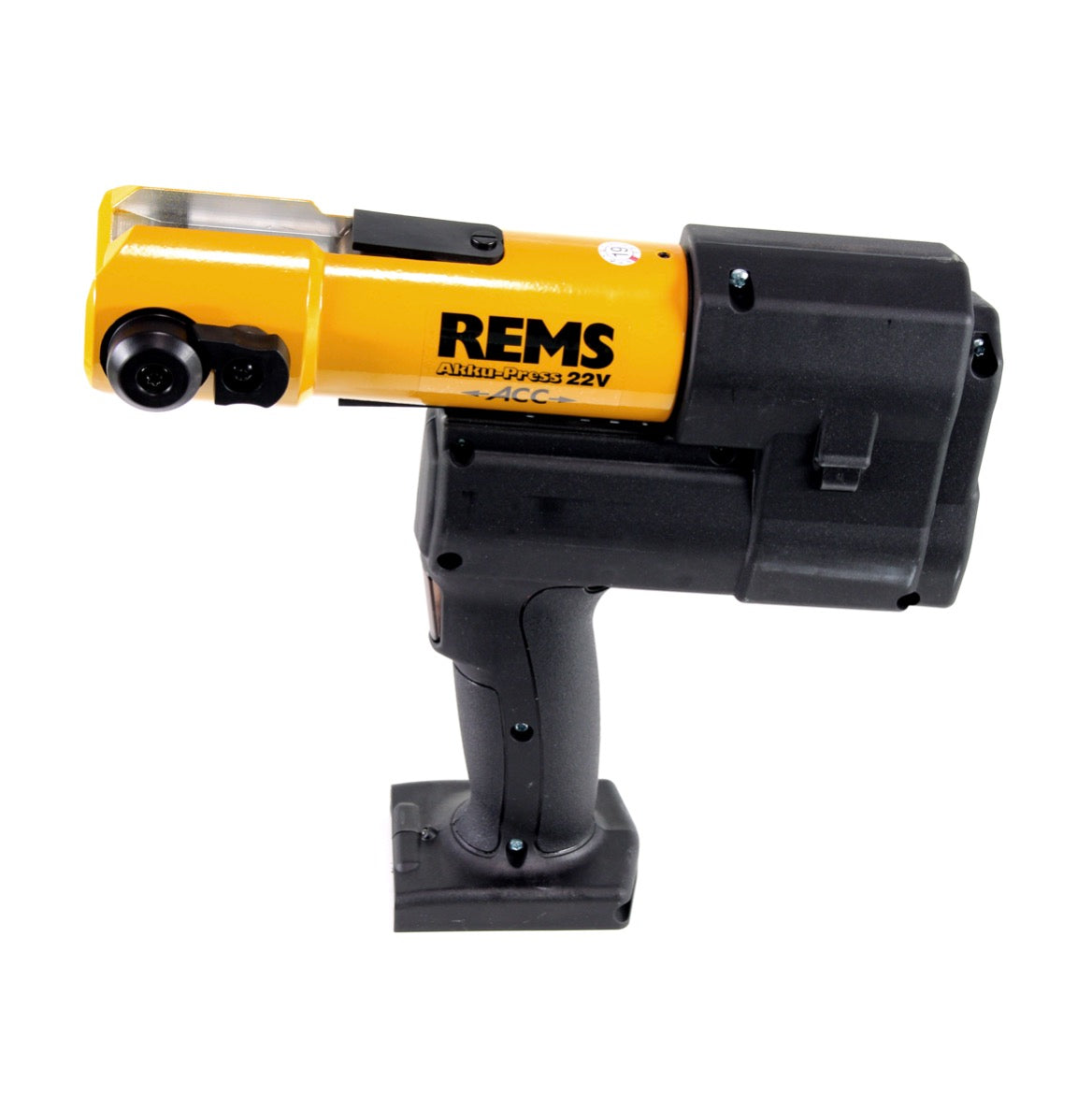

- 1x REMS Akku-Press 22V ACC drive unit ( 576000 R22 )

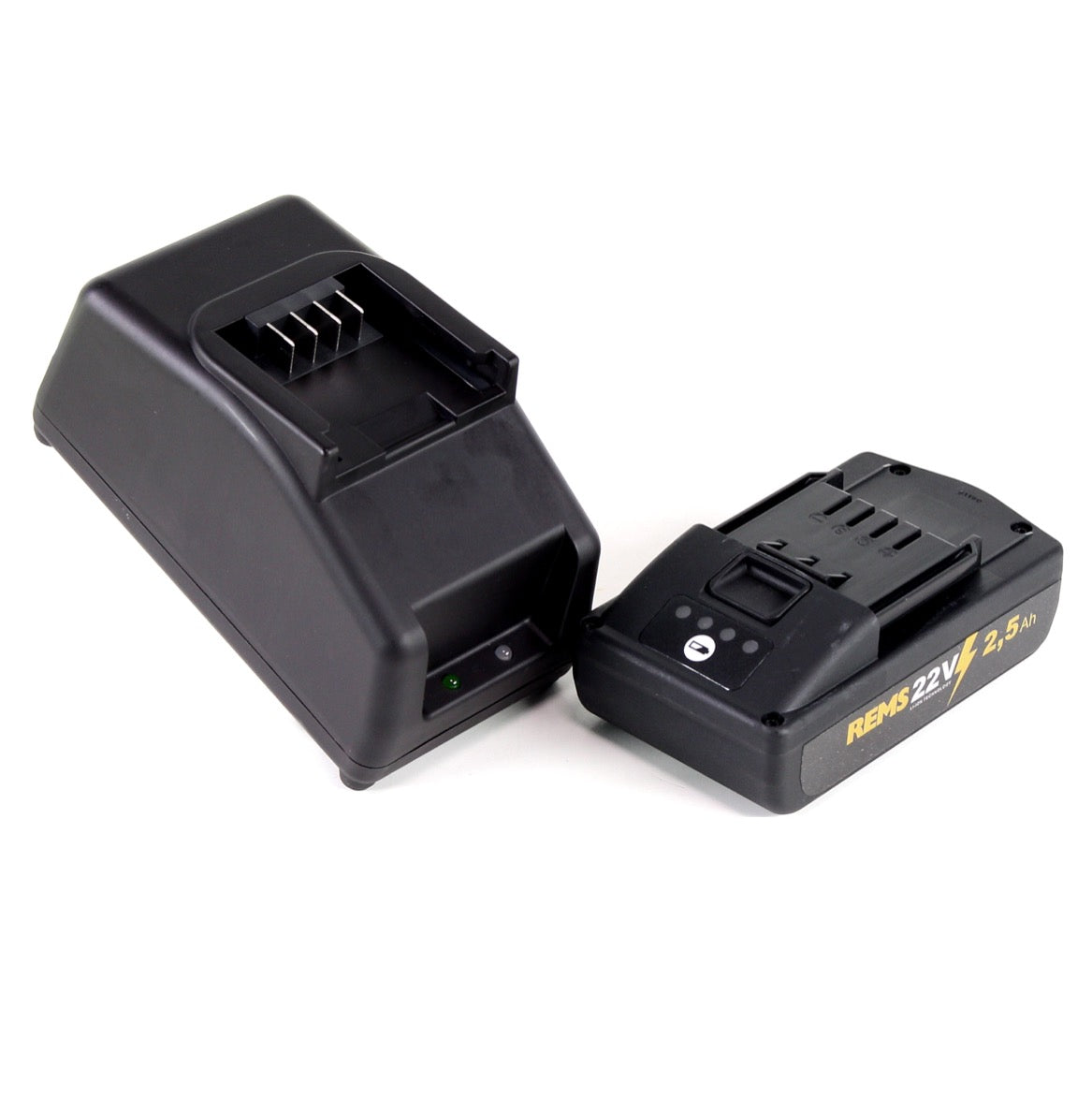

- 1x REMS 2,5Ah battery ( 571571 R22 )
- 1x REMS quick charger ( 571575 R220 )

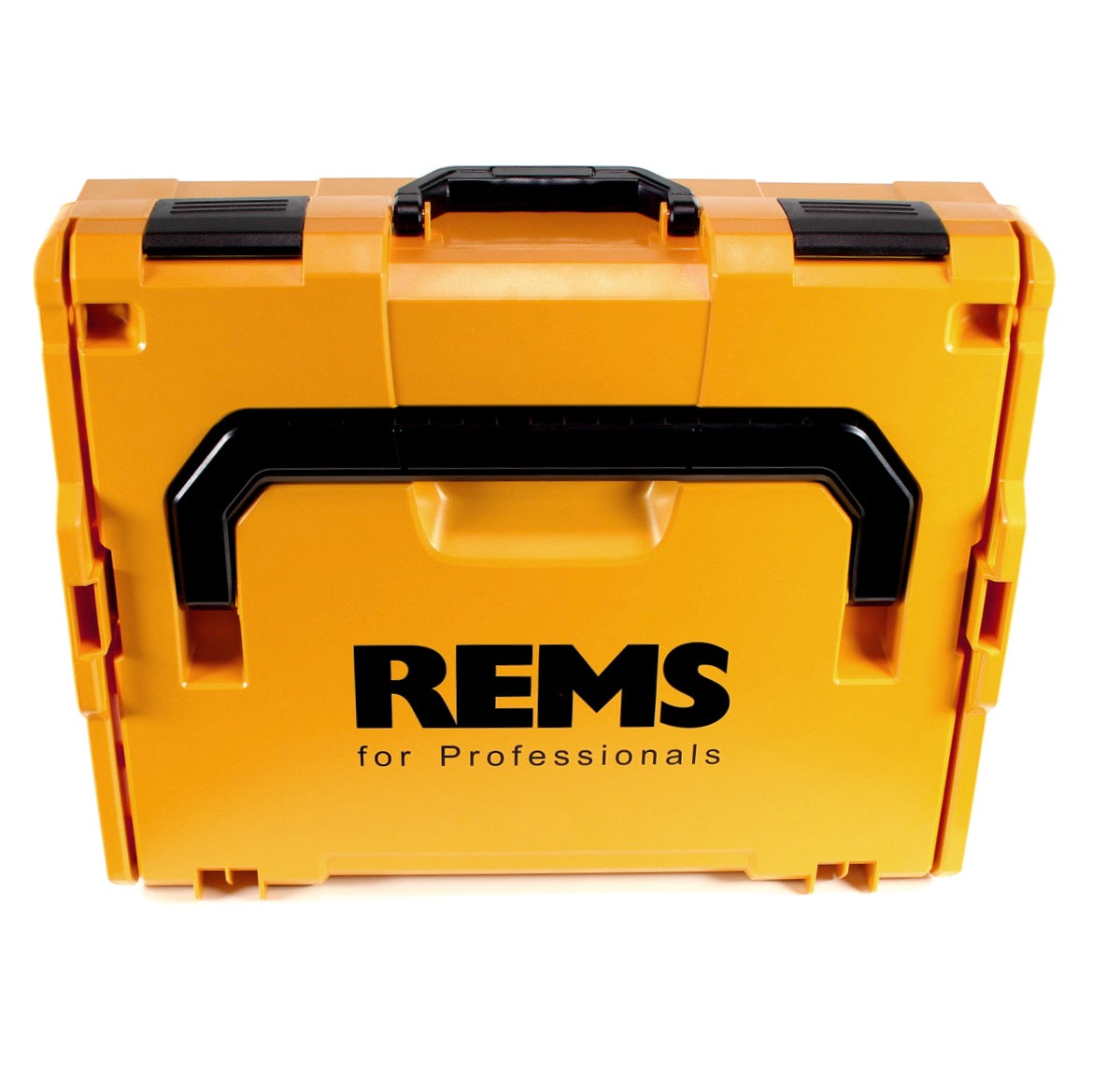

- 1x L-Boxx system case with insert ( 571283 R )
Product Description:
The Power-Press is designed for producing press connections for all common press-fitting systems on steel pipes, stainless steel, copper, plastic and composite pipes. The press tongs/press rings are made of forged and tough, specially hardened special steel and are highly resilient. This enables a thrust and pressing force of several tonnes for flawless pressing in seconds. The automatic locking of the pressing tongs and the automatic return after completion of the pressing process (forced run-off) provide the user with additional safety. The radial press impresses with its powerful electro-hydraulic drive with high-torque 21.6V battery motor, 380W output, robust planetary gearbox, eccentric piston pump and compact high-performance hydraulic system. The REMS Li-Ion 22V Technology sets standards in terms of economy and user-friendliness. It allows the user super-fast pressing in 4.5s and 50% more energy than 14.4V batteries. The anti-vibration system enables low-vibration, fatigue-free pressing. Thanks to its compact and handy design, the Power-Press can be used anywhere, freehand, overhead, even in particularly tight spaces. According to the manufacturer, the 2.5 Ah battery included in the scope of delivery is sufficient for approx. 200 Viega Profipress DN 15 pressings per battery charge. The matching quick charger ensures short charging times for the 10.8-21.6 V devices.
Technical Data:
- Press connections: Ø 10-108 (110) mm, Ø ⅜ -4"
- Thrust force: 32 kilonewtons
- Dimensions (LxWxH): 285x290x81 mm
- Weight (incl. battery): 3.2 kg
- Sound pressure level: 74 dB(A)
- Sound power level: 85 dB(A)
- Uncertainty (K): 3 dB(A)
- Vibration emission: For commercial use, please observe the building regulations!
