Scope of Delivery:

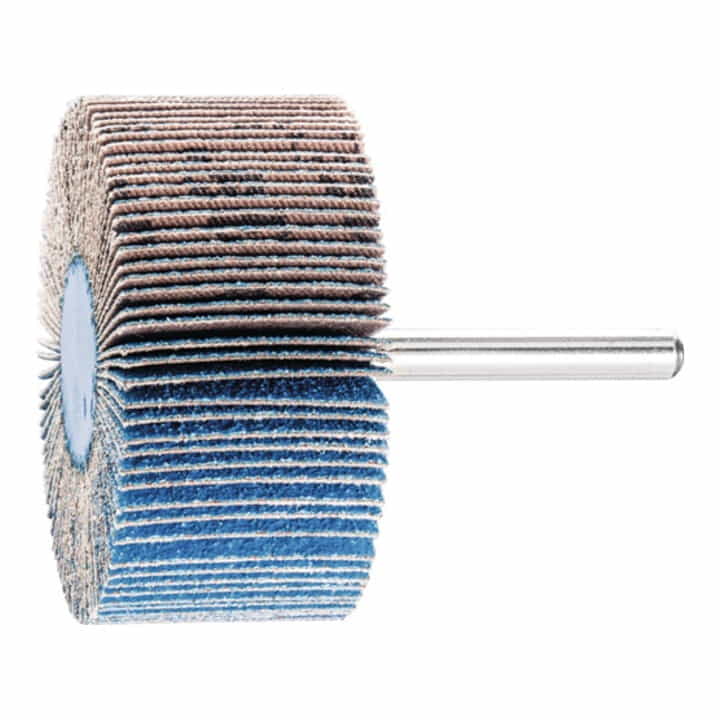

- Fan sander Z-COOL Ø40xH20mm grit size 80
Product Description:
zirconium aluminium oxide - for machining stainless steels and high-temperature alloys - high grinding performance - no clogging of the flaps - for coarse grinding tasks with high cutting performance and cool grinding - abrasive additives in the coating achieve a significantly higher stock removal rate, prevent clogging and result in cooler grinding - shank Ø 6 mm
Technical Data:
- Shank Ø: 6mm
- Drive type: Straight grinder, flexible shaft drive
- Application recommendation: Use grinding oil suitable for the material to significantly increase the service life and grinding performance of the tools. For best performance, use at a recommended cutting speed of 15-20 m/s. This achieves an ideal compromise between stock removal rate, surface finish, temperature load on the workpiece and tool wear. Increasing the cutting speed results in a slightly finer surface finish. Increasing the contact pressure results in a slightly coarser surface. The softer the material to be machined, the coarser the surface (when using , Reducing the contact pressure and the peripheral speed and adding grinding oil reduce tool wear and the temperature load on the workpiece. An increase in the stock removal rate should be achieved by using a coarser grit size and not by increasing the contact pressure in order to prevent unnecessary tool wear and thermal stress on the workpiece.
- Machinable materials: Copper, malleable cast iron, brass, bronze, cobalt-based alloys, grey/spheroidal cast iron (GG/GJL, GGG/GJS), hardened, tempered steels over 1,200 N/mm² ( 54 HRC, steels up to 1,200 N/mm² (< 38 HRC), titanium, cast steel
- Machining tasks: Structuring (matting, line matting and satin finishing), surface processing, deburring, levelling, fine grinding in stages, weld seam processing
- Width: 20mm
- Note: PFERDERGONOMICS recommends flap discs in order to sustainably reduce the vibration and noise generated during use and to improve working comfort.
- Length, shaft: 40mm
- RPM, opt.: 9600RPM
- Safety instructions: For safety reasons, the specified maximum permissible speed must never be exceeded. The contact pressure must be significantly reduced if the specified optimum speed is exceeded. Safety is only guaranteed if the clamping length is at least 15 mm and the specified maximum speed is not exceeded with open shank lengths.
- Advantages: Optimum contour adaptation due to high flexibility. Consistently high material removal rate over the entire service life, as new, aggressive abrasive is constantly released. Can be used very close to edges and at angles thanks to the flat cast core design.
For commercial use, please observe the building regulations!
