Scope of Delivery:
- 1x PFERD brush Ø 20 mm shaft wire thickness 0.2 mm
Product Description:

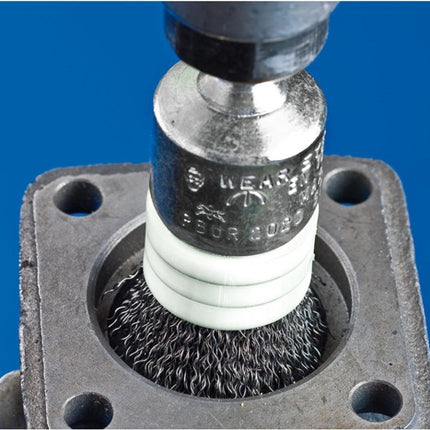

for light brushing work such as deburring, cleaning and derusting - steel wire has a high tensile and flexural fatigue strength and ensures optimum wear of the wire as well as a long service life, even in extreme brushing applications. Steel wire can withstand temperatures up to 300 °C. Shank Ø 6 mm
Technical Data:
- Drive type: Flexible shaft drive, straight grinder, drilling machine
- Application recommendation: Please observe the recommended speeds. For best performance, use a tool drive with at least 300 watts. For particularly flexible use, for a large expansion diameter or to reach hard-to-reach areas, remove the support ring at the start of work. Remove the support ring as soon as the trimming has been processed up to the support ring. This allows the remaining trim to be released and used up completely.
- Machinable materials: Thermoplastics, wood, cast iron, thermosets, elastomers, steel, cast steel
- Machining tasks: Cleaning, deburring, roughening, paint stripping, removing oxide layers, derusting
- Filament material: Steel wire (ST)

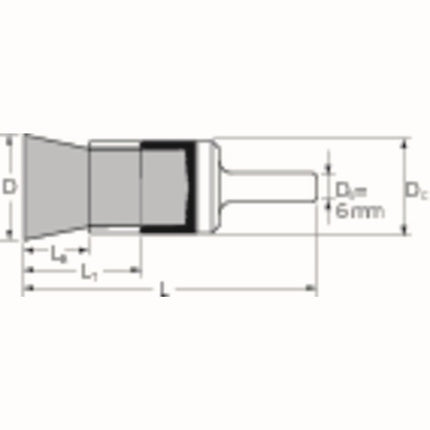

- Length, tipping to ring: 13mm
- Ø shaft: 6mm
- Ø cup: 22mm
- RPM, opt., up to: 9400RPM
- RPM, opt., from: 6300RPM
- Safety instructions: When clamping the brush, ensure that the shaft is clamped as far as possible into the holder. This applies in particular to use in the high speed range. The minimum clamping length is 10 mm.
- Advantages: Once the fill has been worked down to the support ring, it can be removed for further use without changing the brushing behaviour. The support ring prevents the wires from moving sideways. Spreading and flexibility of the brush fill can be precisely adjusted using the support ring. Optimum access to hard-to-reach areas such as recesses and drill holes. Long service life thanks to the use of PFERD special wire. Produces fine surfaces.
- Ø: 20 mm
- Fill width: 0.2 mm
- Filament length: 25 mm
- Wire thickness: 0.2 mm
- Total length: 70 mm
- Max. speed: 12500 min-¹
- Content: 10 pcs.
- Holder: Shank
- Material suitability cast iron: very suitable
- Material suitability steel: very suitable
- Brand: PFERD
- Material: Steel
- Shank Ø: 6 mm
- Material suitability wood: very suitablePlease observe the building regulations for commercial use!
For commercial use, please observe the building regulations!
