Scope of Delivery:
- 1x PFERD sanding sleeve D45xW30mm30 mm grit size 80
Product Description:
for coarse grinding tasks with high stock removal rates and long service life - GSB = bulk pack of abrasive sleeves - supplied without rubber backing
Technical Data:
- Drive type: Flexible shaft drive, straight grinder
- Application recommendation: Use grinding oil suitable for the material to significantly increase the service life and grinding performance of the tools. To change the sanding sleeves easily, turn them slightly clockwise to mount and remove them. Keep the abrasive sleeve holder clamped in the tool drive. For a secure fit of the abrasive sleeve, maintain the minimum speed of the abrasive sleeve carrier. For best performance, use at a recommended cutting speed of 20-30 m/s.
- Machinable materials: Titanium, hardened, tempered steels over 1,200 N/mm² ( 54 HRC

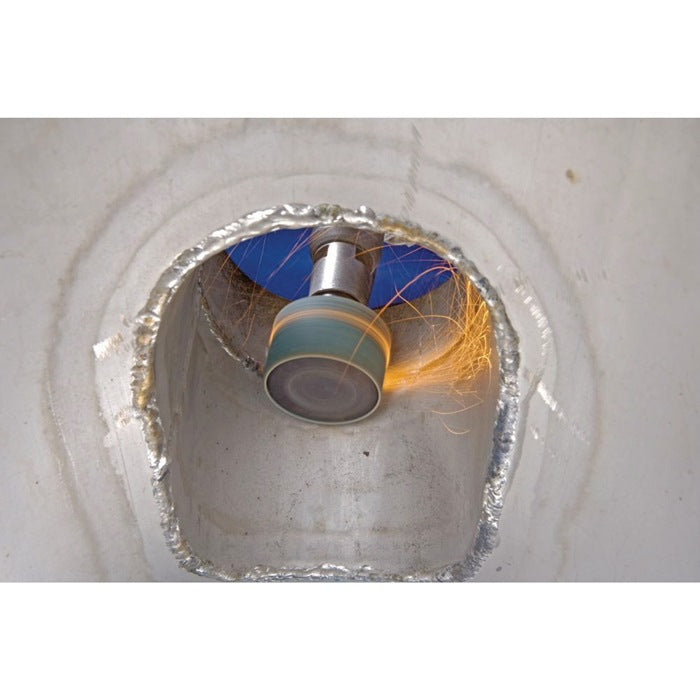

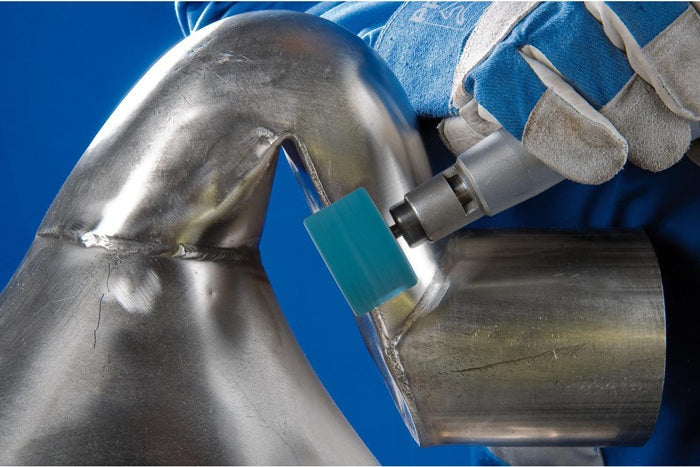

- Machining tasks: Gradual fine grinding, edge processing, weld seam processing, surface processing, sharpening, deburring, levelling, roughening
- Ordering information: Please order abrasive sleeve holder separately.
- Ø inside: 45mm
- RPM, opt., up to: 12700RPM
- RPM, opt., from: 8500RPM
- Safety instructions: The maximum permissible peripheral speed is 30 m/s. For safety reasons, the specified maximum permissible speed must never be exceeded. Do not allow the abrasive sleeves to protrude beyond the abrasive sleeve holder.
- Advantages: Secure fit of the abrasive sleeve on the abrasive sleeve carrier due to expansion of the carrier during use. Outstanding service life thanks to special manufacturing process - even under the toughest operating conditions. Maximum efficiency thanks to particularly high material removal and high abrasive aggressiveness.
- Grit size: 80
- Max. speed: 12700 min-¹
- Width: 30 mm
- Material suitability INOX: very suitable
- Material suitability steel: very suitable
- Brand: PFERD
- Material: Zirconium aluminium oxide Z
- Ø: 45 mmFor commercial use, please observe the building regulations!
