Scope of Delivery:

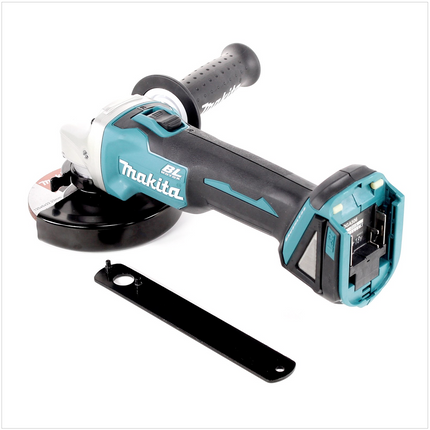

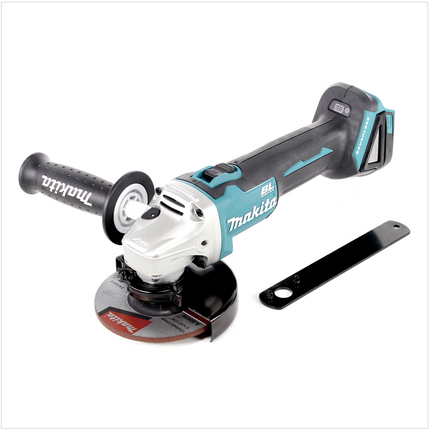

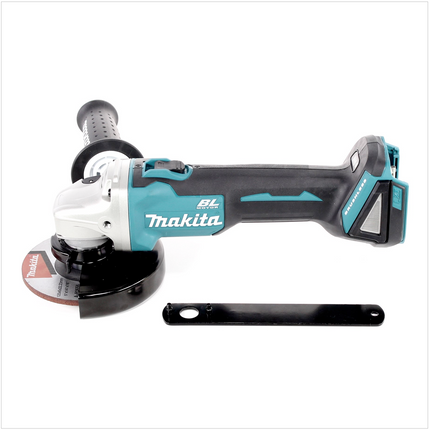

- 1x Makita DGA 506 cordless angle grinder
- 1x Makita grinding disc 125 mm
- 1x assembly tool
- 1x additional handle
- without battery, without charger
Product Description:

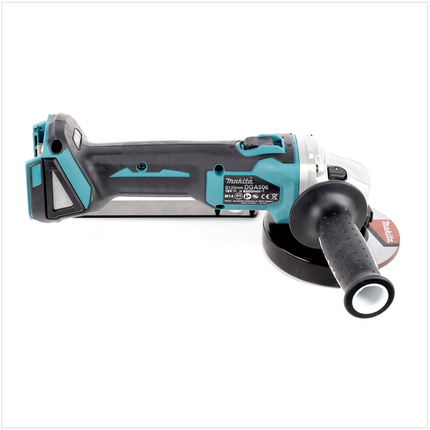

The Makita DGA 506 brushless cordless angle grinder is a very handy, 18 volt, Li-Ion battery-powered angle grinder for cutting discs up to 125 mm in diameter. The Automatic Speed Control automatically regulates high speeds for cutting work or high torque for grinding work, depending on requirements. The brushless motor from Makita's Brushless Technology ensures greater endurance, a longer service life and a more compact housing. The motor is also protected by overload protection and the DGA 506 also has a juice start. The electronic current limiter with warning light enables constant use while the motor load is controlled. The integrated start interlock prevents the motor from starting when the battery is inserted and switches on when the capacity is undercut. The eXtreme Protection Technology protects the important components of the machine from dust and splash water. The motor housing is also equipped with an inlaid non-slip rubber pad. Makita is a leading power tool manufacturer characterised by quality, tradition and the world's largest eco system.
Technical Data:
- Manufacturer: Makita
- Manufacturer's designation: DGA 506
- Battery voltage: 18 V
- Battery system: LXT
- Battery type: Li-ion
- Brushless motor: Yes
- Idle speed: 8500 min-¹
- Spindle thread: M14
- Bore: 22.23 mm
- Max. Disc Ø: 125 mm
- Restart protection: Yes
- Motor brake: Yes
- Vibration values, surface grinding: ≤ 2.5 m/s²
- Vibration uncertainty factor (K value), surface grinding: 1.5 m/s²
- Vibration values, surface grinding (roughing): 6.5 m/s²
- Vibration uncertainty factor (K value), surface grinding (roughing): 1.5 m/s²
- Sound power level (LWA): 90 dB(A)
- Sound pressure level (LpA): 82 dB(A)
- K-value noise: 3 dB(A)
- Product dimensions (L x W x H): 362 x 140 x 145 mm
- Weight incl. battery: 2.3 - 2.6 kg
- Max. Cutting depth: 29 mm
