Scope of Delivery:

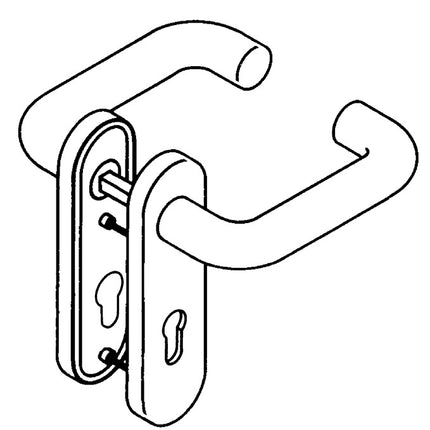

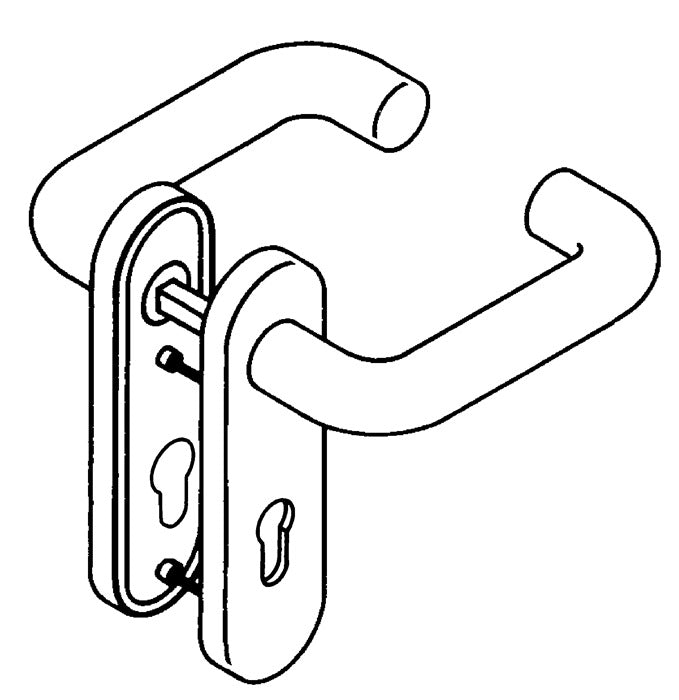

- 1x HEWI short escutcheon set plastic 97
Product Description:

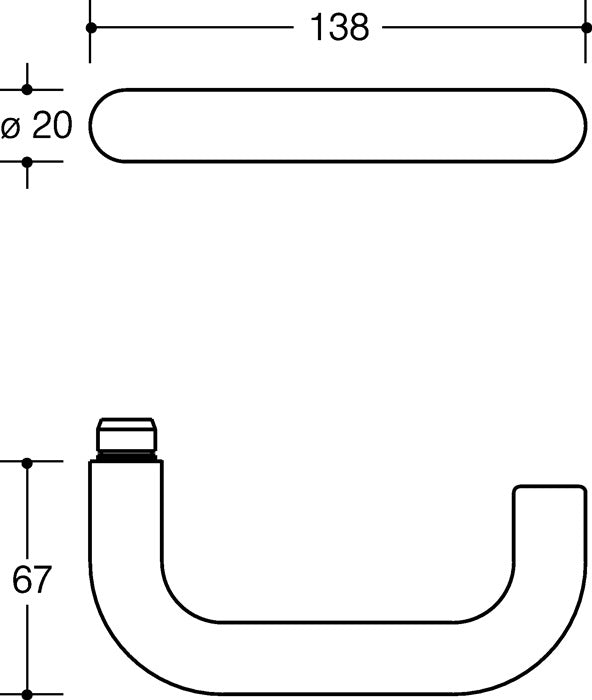

in R technology with backplates to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss surface, consisting of: U-shaped lever handle made of polyamide with continuous steel core right through to the end of the handle, coloured throughout, diameter 20 mm, with lug guide and latching groove, installation by simply snapping the lever handle into the base parts pre-assembled on the door. The latching mechanism can be released again using a disassembly spanner. The lever handle fulfils the requirements of DIN EN 179 and DIN 18040. Escutcheon substructure in plastic/stainless steel composite construction, can be used DIN left and DIN right. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as maintenance-free plain bearing with elastic compensation area and second bearing point in the lever handle neck. Concealed, anti-loosening screw fitting with M4 screw and sleeve screw combination and support pin. Escutcheon cover cap made of polyamide, coloured throughout, 46 x 180 mm, 13 mm high, curved, 1.5 mm wall thickness. Designed and tested for the contract sector, usage category in accordance with DIN EN 1906 - Class 4 fitting with square spindle 8 mm - lever handle length 138 mm - lever handle fitting - distance 72 mm
Technical Data:
- Mounting type: R-technology
- Distance: 72mm
- Square: 8mm
- Version: Lever handle set
- Material: Plastic
- Surface: 97 light grey
- Perforation: PZ
- Direction of attack: DIN left / right
- Cover: rounded
- Colour: 97
- Width: 46 mm
- Length: 168 mm
- Utilisation category: 4
- Plate thickness: 11 mm
- Standard: DIN 1906
- Model: 111R01.110 97
- for door thickness: 38.1-48.0 mm
- Brand: HEWIf used commercially, please observe the building regulations!
For commercial use, please observe the building regulations!
