Description

SKU: 74230
EAN: 4014885308362

Scope of Delivery:
- Fire protection set 111R11.230 Plastic 90 D/D

Product Description:

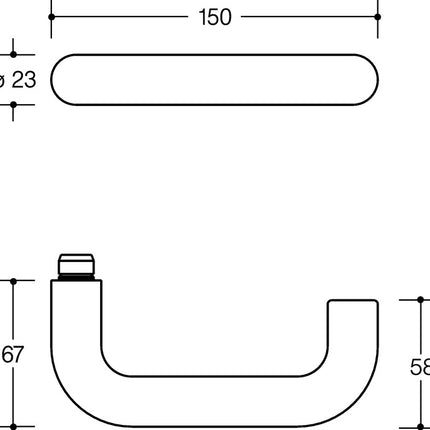

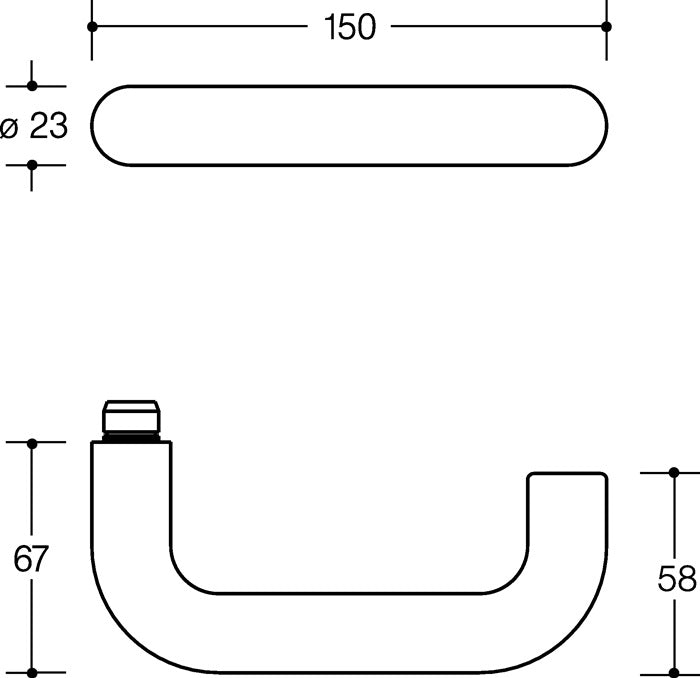

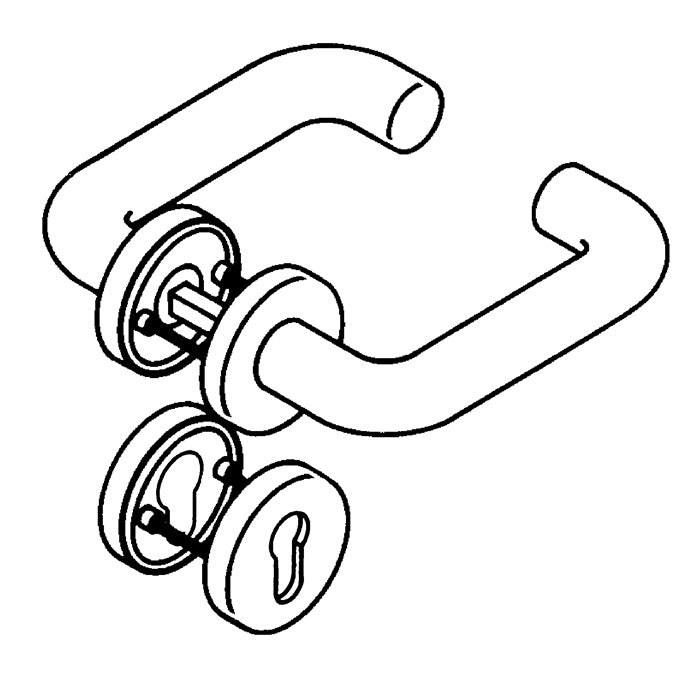

in R technology with roses to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss surface, consisting of: U-shaped lever handle made of polyamide with continuous steel core right through to the lever handle end, coloured throughout, diameter 23 mm, with lug guide and latching groove, installation by simply snapping the lever handle into the bottom parts pre-mounted on the door. The latching mechanism can be released again using a disassembly spanner. The lever handle fulfils the requirements of DIN EN 179 and DIN 18040. Rose substructure in plastic/stainless steel composite construction, can be used DIN left and DIN right. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as maintenance-free plain bearing with elastic compensation area and second bearing point in the lever handle neck. Concealed, anti-loosening screw fitting with M4 screw and sleeve screw combination and support pin. Rose cover cap, round, made of polyamide, coloured throughout, diameter 55 mm, 13 mm high, curved, 1.5 mm wall thickness. Perforation PZ Designed and tested for the contract sector, user category in accordance with DIN EN 1906 - Class 4 Fire protection set with square spindle 9 mm, in accordance with DIN 18273 - Lever handle set - Lever handle length 150 mm

Technical Data:
- Supplement: D/D
- Bearing: fixed-rotatable-bearing
- Square: 9mm

For commercial use, please observe the building regulations!

Read more

Product form

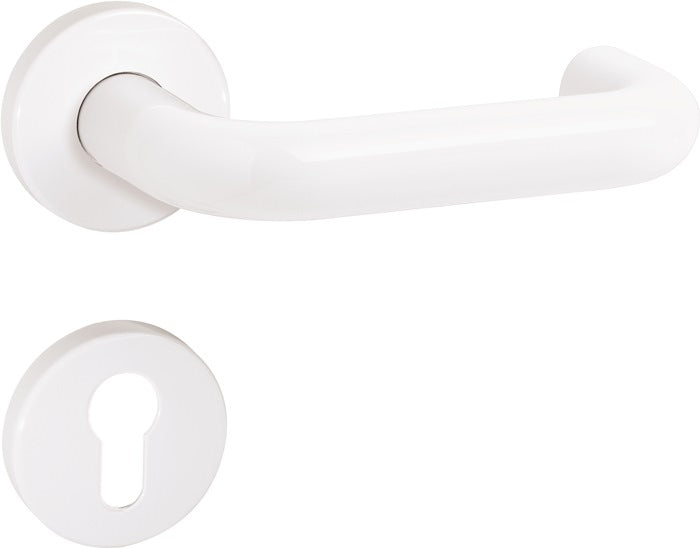

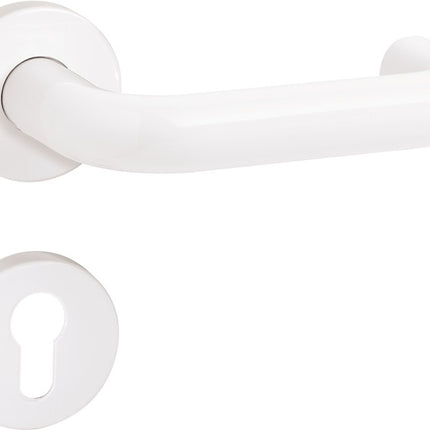

HEWI Fire protection set 111R11.230 Plastic 90 D/D ( 3000204648 )

  • Vendor HEWI
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure

    Information on importing to Switzerland! 🇨🇭🇱🇮 We take care of customs clearance. You will receive your package as normal within the delivery time and you don't have to worry about anything. Your invoice includes Swiss VAT. Placing an order with us feels like a normal domestic order for you. The same goes for returns!

    CHF 116.78
    incl. VAT, plus shipping

    in stock delivery expected in  Tue, 11/04/2025

      • American Express
      • Apple Pay
      • Google Pay
      • PayPal
      • Klarna
      • Mastercard
      • +12 weitere

      +780.000 BROs folgen uns auf



      Smarte Produktberatung

      Rechnung, Versand & GPSR

      Versand & Rechnung durch: Dinotech e.K.

      Responsible Person for the EU (GPSR) EU-based economic operator that ensures the product complies with the necessary regulations.
      • info@hewi.de
      • +495691820
      • Germany
      • 34454 Bad Arolsen
      • Prof.-Bier-Str. 1-5
      • HEWI Heinrich Wilke GmbH

      Description

      SKU: 74230
      EAN: 4014885308362

      Scope of Delivery:
      - Fire protection set 111R11.230 Plastic 90 D/D

      Product Description:
      in R technology with roses to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss surface, consisting of: U-shaped lever handle made of polyamide with continuous steel core right through to the lever handle end, coloured throughout, diameter 23 mm, with lug guide and latching groove, installation by simply snapping the lever handle into the bottom parts pre-mounted on the door. The latching mechanism can be released again using a disassembly spanner. The lever handle fulfils the requirements of DIN EN 179 and DIN 18040. Rose substructure in plastic/stainless steel composite construction, can be used DIN left and DIN right. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as maintenance-free plain bearing with elastic compensation area and second bearing point in the lever handle neck. Concealed, anti-loosening screw fitting with M4 screw and sleeve screw combination and support pin. Rose cover cap, round, made of polyamide, coloured throughout, diameter 55 mm, 13 mm high, curved, 1.5 mm wall thickness. Perforation PZ Designed and tested for the contract sector, user category in accordance with DIN EN 1906 - Class 4 Fire protection set with square spindle 9 mm, in accordance with DIN 18273 - Lever handle set - Lever handle length 150 mm

      Technical Data:
      - Supplement: D/D
      - Bearing: fixed-rotatable-bearing
      - Square: 9mm

      For commercial use, please observe the building regulations!
