Description

SKU: 27247
EAN: 4064677030933

Package contents:

- 200x HECO MULTI MONTI plus F Screw Anchors, 7.5 x 60mm

Product description:

The MULTI MONTI plus screw anchor from HECO is an enhanced version of the MULTI MONTI concrete screw. Its main advantage is that it can be inserted directly into a pre-drilled hole without the need for wall plugs, and can be immediately loadable. Its functional point, with reinforced teeth, taps into the building material as it is being screwed in. This creates a positive locking connection, which is subsequently used for the anchoring. This system not only simplifies the assembly process, but also guarantees optimum safety for the user. The MULTI MONTI plus can be mounted close to the edge without a torque wrench. It can also be removed and reused.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 48511
Manufacturer's designation: MULTI MONTI plus F

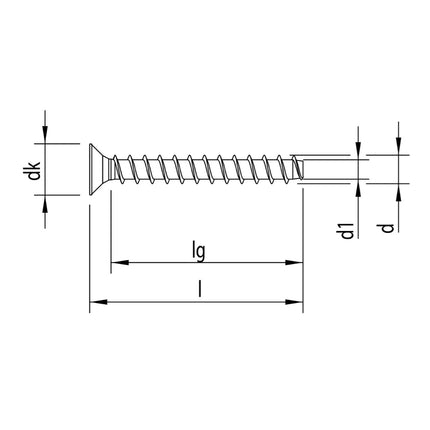

Clamping strength, tfix1: 5mm
Size of recess: T40
Drill diameter, d0: 6.0mm
Drill hole depth, h1: 65mm
Diameter of clearance hole in the fixture, df: 9mm
Embedment, hnom1: 55mm
Thread length, lg: 52mm
Head diameter, dk: 15.5mm
Recommended max. power output of the impact screw driver, Tmax1 : 120 Nm
Minimal thickness of concrete member, hmin: 100mm
Min. edge distance, cmin: 30mm
Diameter, d: 7.5mm
Length, l: 60 mm
Head form: Countersunk head

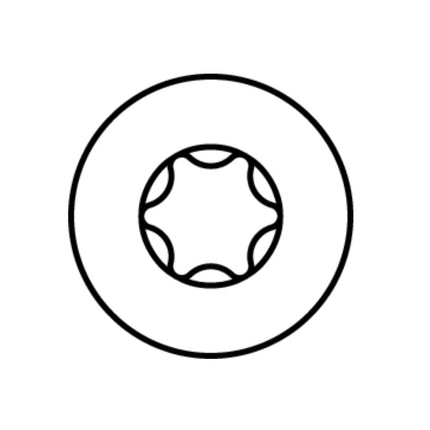

Recess: T-Drive
Material: Carbon steel
Surface: Zinc plated blue, A2K

Read more

Product form

HECO MULTI MONTI plus F Screw Anchor, 7.5 x 60mm, Concrete screw, Countersunk head, T-Drive, Blue zinc-plated, A2K, 200 pcs. (4x 48511)

  • Vendor HECO
  • condition  New
