Description

SKU: 70038
EAN: 3154020063945

Scope of Delivery:

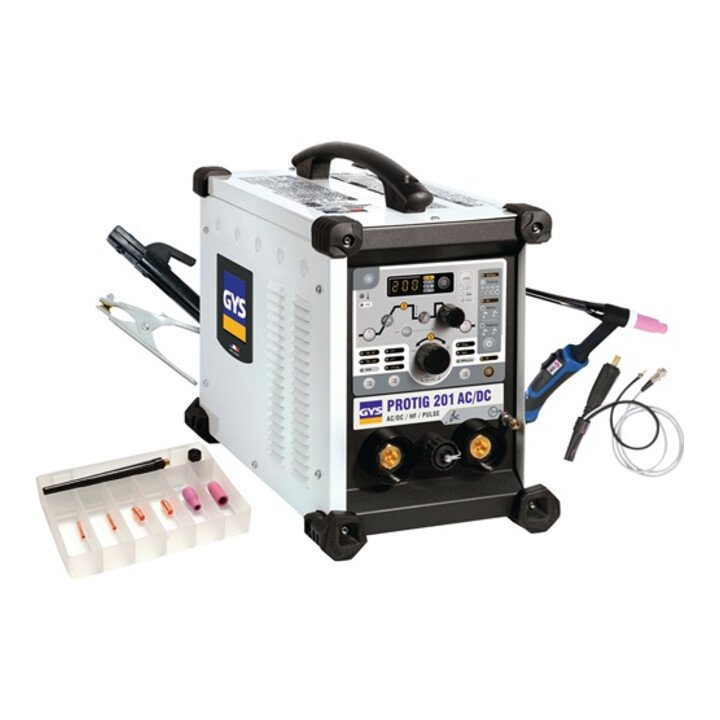

- PROTIG 201 AC/DC HF FV TIG welding system with accessories
- TIG welding system, TIG welding torch SR 26 DB 4 m, TIG accessory kit, earth cable 2 m prefabricated, electrode holder 2 m prefabricated

Product Description:
Features and areas of application: ideal for repair and maintenance work on aluminium, steel, stainless steel and copper - for all common rutile, stainless steel, cast iron and basic stick electrodes - PFC technology - with membrane keypad and digital display - PROTEC400: protection against overvoltage up to 400 V. The welding machine is protected for operation with power generators. 230 V power supply (mains voltage fluctuation +/- 15 %) - equipped with secondary regulation for additional stabilisation of the arc - pulse and easy pulse function - 50 memory locations for preferred settings - foot and hand-held remote control can be connected

Technical Data:
- Width: 320mm
- Length: 520mm
- Operating modes: 2-stroke / 4-stroke / 4-stroke log / dots / pulsing
- Ignition type: High frequency / TIG Lift
- Weight: 18.5kg
- Mobility: portable
- Protection class: IP 21
- Type of current: Alternating current - AC/DC
- Version: with accessories
- Height: 470mm
- Welding process: TIG (AC/DC), E-hand
- Mains voltage: 230 V / 50/60 Hz
- Fuse protection: 13A
- Power consumption: 7.5kVA
- Open circuit voltage: 70V

For commercial use, please observe the building regulations!
