Scope of Delivery:

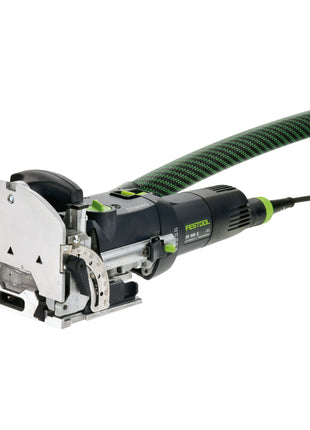

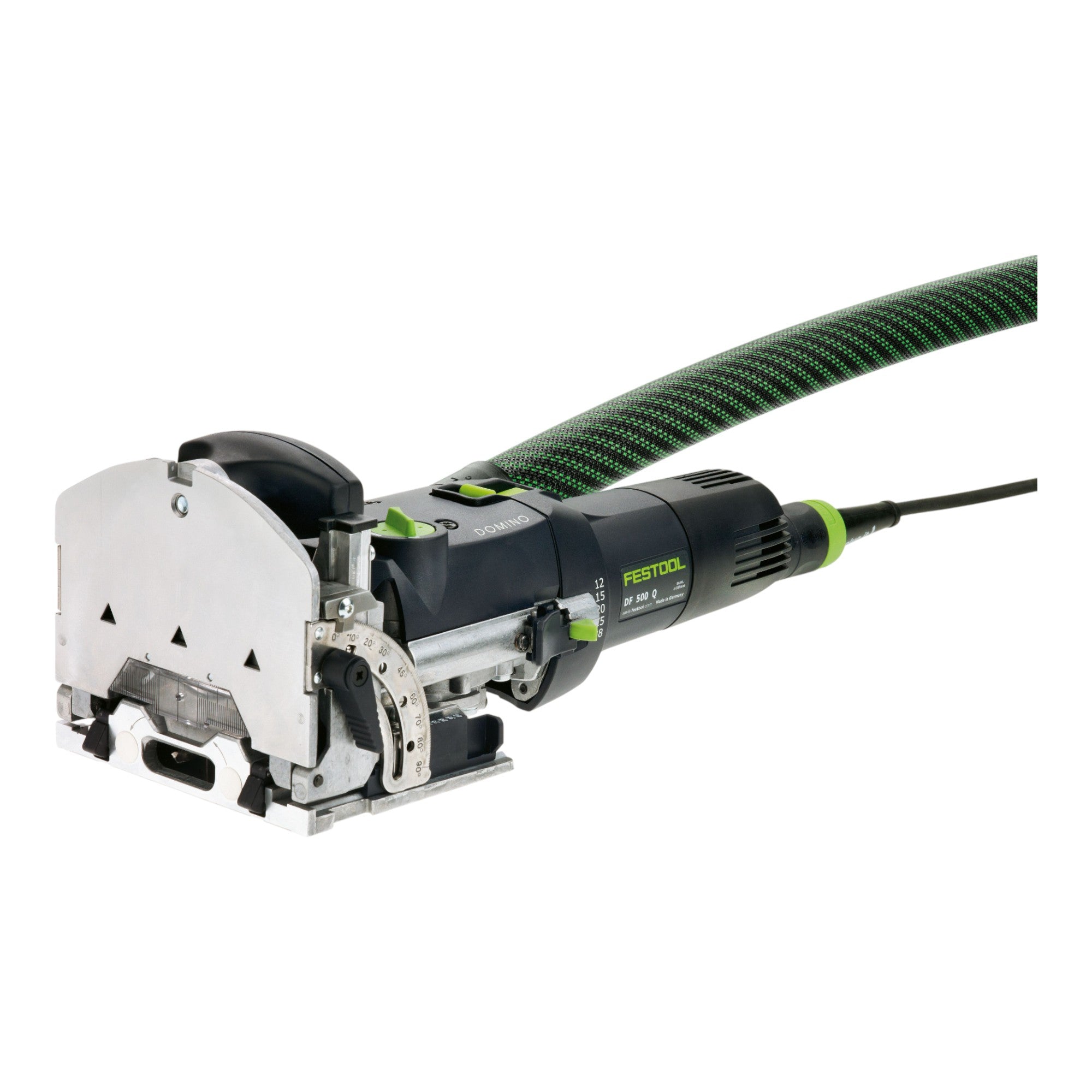

- 1x Festool DF 500 Q dowel cutter
- 1x Domino milling cutter DOMINO milling cutter D 5-NL 20 HW-DF 500
- 1x additional fence ZA-DF 500/700
- 1x open-end spanner SW 8
- 1x plug it cable H05 RN-F-4
- 1x Festool 100 years cap GC-FT4 100Y
- 1x Festool 100 years Systainer³ SYS3 M 187 case
Product Description:
The Festool DF 500 Q-Plus dowel router stands for maximum precision, stability and flexibility - exactly what professional craftsmen have appreciated about Festool for 100 years. To mark the anniversary, Festool is celebrating craftsmanship and saying thank you with special 100-year promotions. The DOMINO system is a real innovation: it combines the precision of a round dowel with the versatility of a flat dowel, thus ensuring extremely stable, invisible connections in wood. With dowel sizes from 4 x 20 mm to 10 x 50 mm, the DF 500 offers a wide range of applications for panel, rack, frame and drawer connections. Its patented and unique milling principle enables smooth, precise work and ensures a perfect fit. The quickly and easily adjustable stops make it easy to realise repeatable connections. The ergonomic design guarantees comfortable working in any position, while the DOMINO plugs ensure maximum torsion resistance and stability. Thanks to the well thought-out system accessories, which are compatible with both DOMINO dowel driving machines, the DF 500 can be perfectly customised to individual requirements.
Technical Data:
- Manufacturer: Festool
- Manufacturer's designation: DF 500 Q-Plus
- Manufacturer number: 578239
- Power consumption: 420 W
- Idle speed: 25500 min-¹
- Depth stop for routing depth: 12, 15, 20, 25, 28 mm
- Max. Milling depth: 28.00 mm
- DOMINO slot milling cutter Ø: 4, 5, 6, 8, 10 mm
- Milling height adjustment: 5 - 30 mm
- Mitre routing: 0 - 90 °
- Dust extraction connection Ø: 27 mm
- Cable length: 4.00 m
- Drive type: Mains
- Product weight without accessories: 3.50 kg
- Transport weight incl. accessories: 5.85 kg
- Milling: Uncertainty (vibration) K: 1.50 m/s²
- Milling: Uncertainty (noise) K: 3.00 dB
- Milling: Total vibration mean value ah: 3.00 m/s²
- Milling: Standards series EN: 60745-2-19
- Milling: A-weighted sound pressure level Lp: 84.00 dB(A)
- Milling: A-weighted sound power level Lw: 95.00 dB(A)
- For commercial use, please observe the building regulations!
