Scope of Delivery:
- 1x DeWalt DWS 778 QS panel saw 1850 W
- 1x workpiece clamp
- 1x 42-tooth HM saw blade
- 1x pin wrench
Product Description:

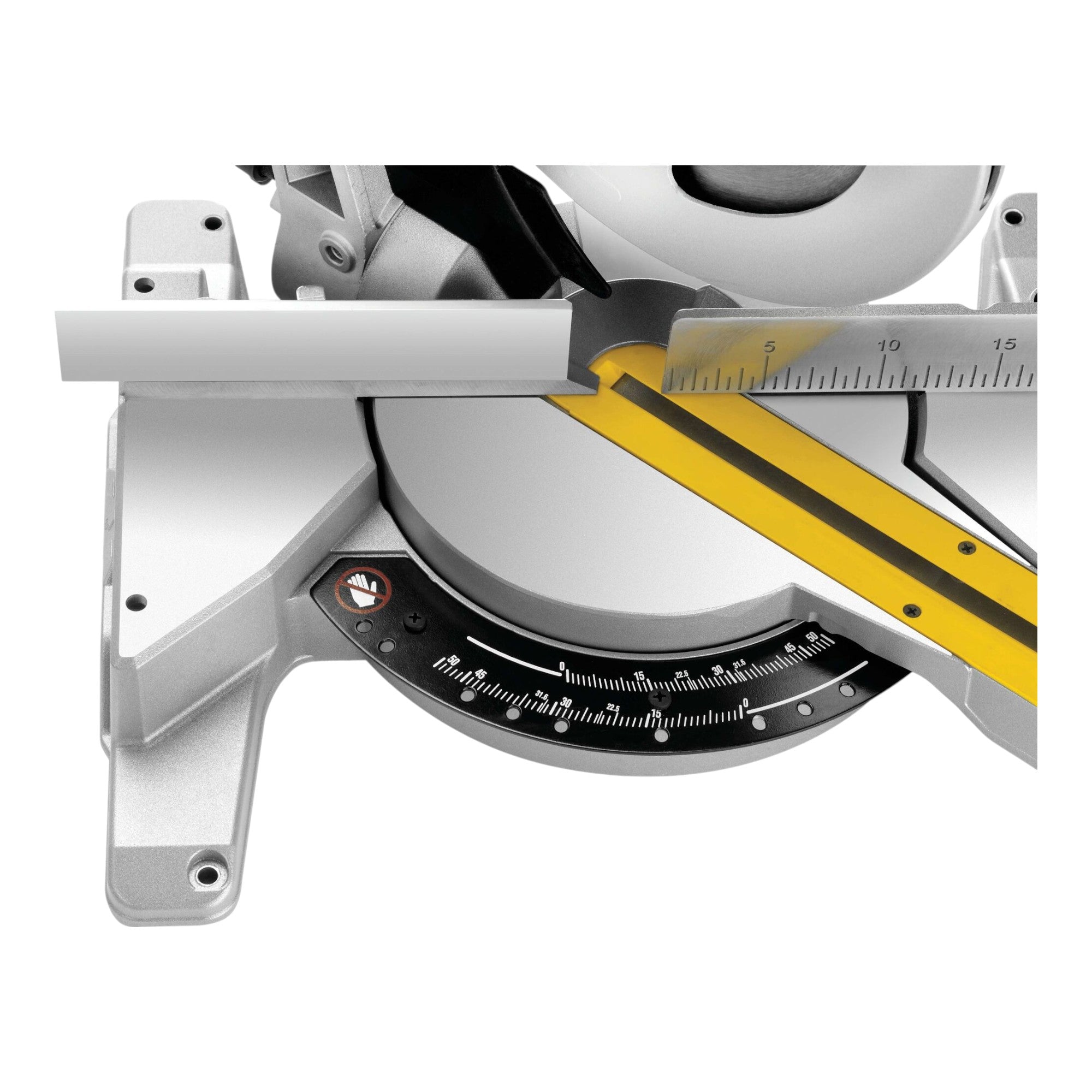

The DeWalt DWS 778 panel saw is the ideal solution for precise and demanding sawing work on the construction site or in the workshop. Thanks to the internal telescopic extension system with high-quality SKF plain and ball bearings, even large workpieces can be processed effortlessly and accurately – while the compact design makes transport and use on the assembly line particularly convenient. The flat-milled base plate and the high-quality die-cast aluminium stop ensure maximum stability and cutting precision. The powerful motor delivers the necessary power for fast and clean cuts, while the efficient dust extraction ensures a virtually dust-free working environment. The integrated LED cutting line indicator ensures maximum precision when cutting, as the shadow cast by the saw blade allows for exact alignment with the mark – ideal for millimetre-precise work. The fixed stops at common mitre angles (0°, 15°, 22.5°, 30°, 45°) enable quick adjustments, while stepless adjustment up to 50° ensures maximum flexibility for complex mitre cuts. Particularly practical: the movable left workpiece stop not only allows small workpieces to be securely fixed in place, but also facilitates bevel cuts without restrictions. The secure locking function for the saw head and extension makes transport easy and safe.
Technical Data:
- Manufacturer: DeWalt
- Manufacturer's designation: DWS 778 QS
- Bore: 30 mm
- Blade speed: 4300 rpm
- Max. cutting capacity (45°/45°): 215 x 58 mm
- Saw blade thickness: 3 mm
- Max. cutting capacity (90°/90°): 305 x 85 mm
- Product width: 465 mm
- Idle speed (RPM): 4300
- Max. cutting capacity (45°/90°): 215 x 85 mm
- Product height: 390 mm
- Product weight: 17.7 kg
- Blade diameter: 250 mm
- Max. cutting capacity (90°/45°): 305 x 58 mm
- Power source: Corded
- Input power: 1850 W
- Product length: 615 mm
- For commercial use, please observe the building regulations!
For commercial use, please observe the building regulations!
