Scope of Delivery:

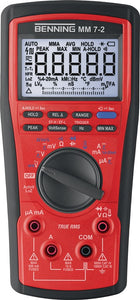

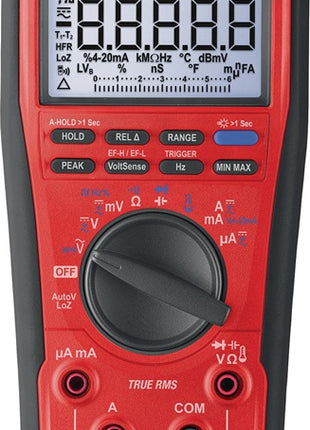

- Multimeter MM 7-2 1000 V
- Supplied with ergonomic housing with integrated rubber protective frame, case, high-quality silicone measuring lead set (red/black, length: 1 m) with gold-plated 2 mm measuring tips and screw-on 4 mm lamellar measuring tips, wire temperature sensor, batteries (3 x type AAA), for replacement batteries see art. no. 4000 901 810
Product Description:
5-digit, illuminated LCD display (60.000 dots) with bar graph - TRUE RMS measurement method (AC, AC+DC) - AutoV function for automatic AC/DC switching and measuring range selection - Low input impedance (LoZ) for suppression of capacitive/inductive interspersed voltages - Socket control (optical/acoustic, µA/mA and A range) with warning message in case of incorrect measuring range selection - Low-pass filter (high frequency suppression HFR, 1000 Hz) for measurements on pulsed motor drives - Voltage sensor for non-contact and single-pole phase and cable break testing (optical/acoustic) - Automatic range selection, switch-off, battery status display - Measured value (HOLD/A-HOLD), maximum/minimum/average value memory (MAX/ MIN/ AVG), relative measurement (REL), peak value memory (PEAK) - Measurement category CAT IV 600 V, CAT III 1000 V Measuring ranges: DC/AC voltage (10 µV - 1000 V), DC/AC current (0.01 µA - 10 A), resistance (0.01 Ω - 60 MΩ), frequency (0.001 Hz - 50 kHz/ 1 MHz), capacitance (0.01 nF - 10 mF), duty cycle (%), 4 mA - 20 mA DC current loop (%), temperature (-200 °C - 1090 °C) - optical and acoustic continuity test (
Technical Data:
- Width: 89mm
- length: 193mm
- subject to inspection: yes
- Height: 51mmNote on the disposal of batteries and rechargeable batteries
- As we sell batteries and accumulators or devices containing batteries and accumulators, we are obliged under the German Battery Act (BattG) to inform you of the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercury
For commercial use, please observe the building regulations!
