Scope of Delivery:

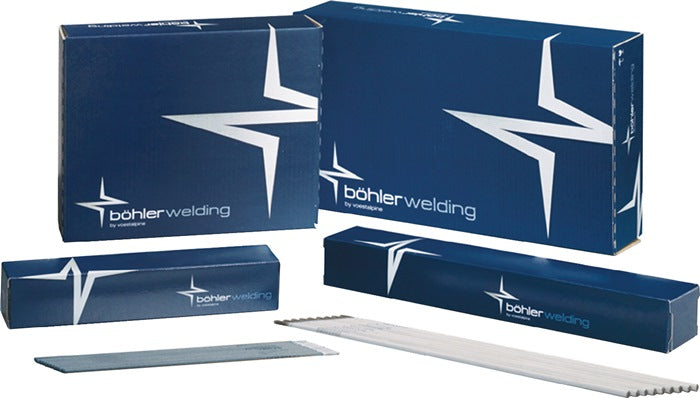

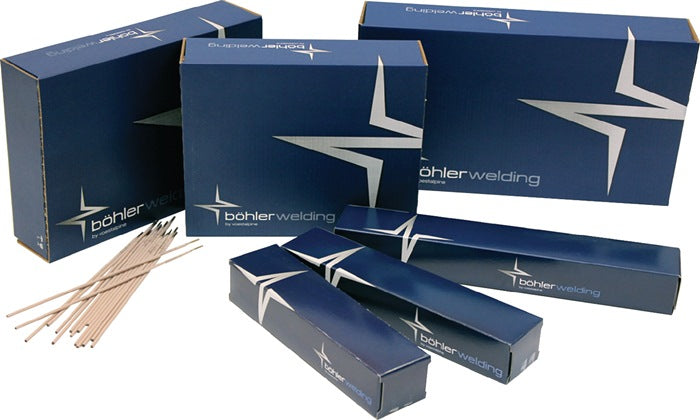

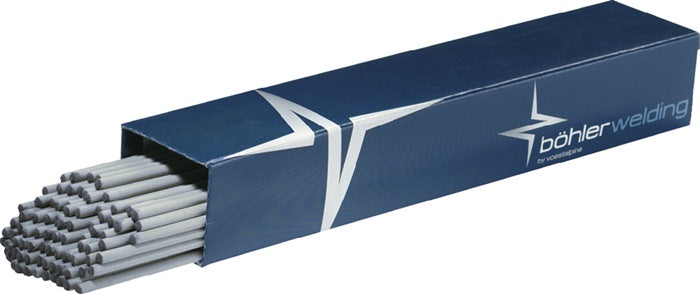

- 1x BÖHLER rod electrode Phoenix Green T E 42 0 RR 12
Product Description:
Standard designation: EN ISO 2560-A: E 42 0 RR 1 2 EN ISO 2560-B: E 4313 A AWS A5.1 / SFA-5.1: E6013 AWS A5.1M: E4313 unalloyed - rutile coated Properties and areas of application: very low spatter formation - self-lifting slag - fine-scaled, smooth seams with notch-free transitions to the base material - problem-free welding of general structural steels - up to and including 2.0 mm Ø also suitable for drop seam welding - excellent ignition and re-ignition capability - easy to weld on small transformers (42 V) Base materials: Steels up to a yield strength of 420 MPA (60ksi) S235JRG2 - S355J2 Pressure vessel steels P235GH, P265GH, P295GH Shipbuilding steels Fine-grained steels up to P355N and M grades ASTM A36 and A53 Gr. A53 Gr. all - A106 Gr. A, B, C - A135 Gr. A, B - A283 Gr. A, B, C, D - A366 - A285 Gr. A, B, C - A500 Gr. A, B, C - A570 Gr. 30, 33, 36, 40, 45 - A607 Gr. 45 - A668 Gr. A, B - A907 size 30, 33, 36, 40 - A935 size 45 - A936 size 50 - API 5 L size B, X42 - X56 Approvals: TÜV (00350), DB (10.014.52), ABS, BV, LR, DNV, CE Current type = DC - / AC - Prices per kilogramme
Technical Data:
- Content: 50 pieces
- Alloy: unalloyed
For commercial use, please observe the building regulations!
