Hoses
-

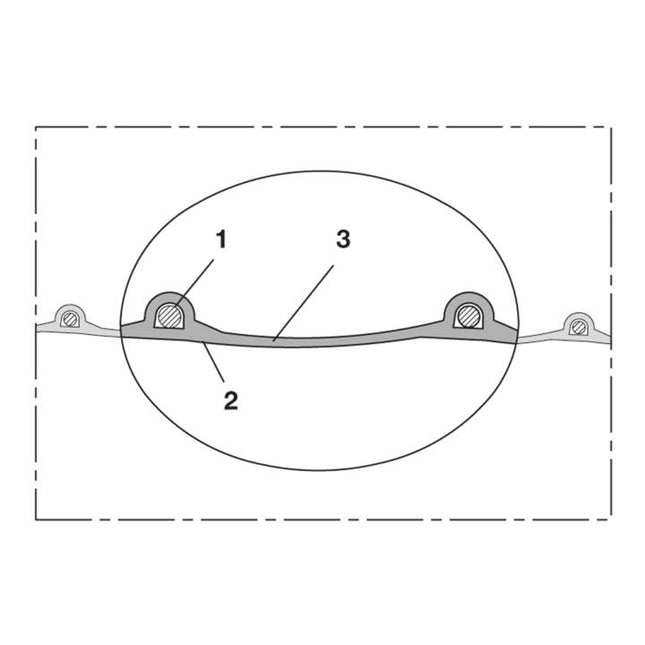

NORRES NORRES PROTAPE(R) PUR 330 FOOD suction and blower hose inner diam. 30 mm outer diam. 37 mm ( 4501402195 )
Wed, 09/24/2025
Scope of Delivery: - PROTAPE® PUR 330 FOOD suction and blower hose Inner diam. 30 mm Outer diam. 37 mm Product Description: Applications: flexible hose for gases, abrasive dusts, powders, fibres, conveying dry and frozen foods and pharmaceuticals, mixers, dryers, packaging machines, big bag filling/emptying, mills, suction arms, clean room ventilation, semiconductor manufacturing machines, medical devices/healthcare: Cable protection, air and suction hose Features: lightweight and reinforced design, highly flexible + compressible 3:1, abrasion-resistant, approval in accordance with EU Regulation 10/2011 and EC 1935/2004 and the latest EU Regulation 2015/174 by an independent testing institute for the entire hose, polyurethane food-safe in accordance with: FDA 21 CFR 177.2600 and 178.2010, odourless and tasteless, resistant to microbes and hydrolysis, good resistance to oil, petrol and chemicals, very good low-temperature flexibility, RoHS compliant, approval in accordance with EU Regulation 10/2011 (food simulants A, B, C or E and D2) and EC 1935/2004, manufacturing process in accordance with GMP EC 2023/2006 Construction: 1. Wall: special premium ether polyurethane (Pre-PUR ® ), 3. wall thickness approx. 0.6 mm Temperature range: -40 °C to +90 °C, briefly up to +125 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Physical state: Gaseous - Operating pressure: 1.35bar - OverpressureDIN 26057(50% expansion)(bar): 1,350 (3,50) - Negative pressureDIN 26057(axially fixed)(bar): 0.450 (1.00)For commercial use, please observe the building regulations!
CHF 143.69
-
NORRES NORRES flat hose PROTAPE(R) PUR-C 335 FOOD-AS FLAT Inner-Ø 200-203 mm Outer-Ø 205.00 mm ( 4501401883 )
Wed, 09/24/2025
Scope of Delivery: - Flat hose PROTAPE® PUR-C 335 FOOD-AS FLAT Inner Ø 200-203 mm Outer Ø 205.00 mm Product Description: Screening machine hose and compensator, vibration-resistant Applications: Food industry, pharmaceutical industry: food, pharmaceuticals - conveying of e.g. rice, dry foods, cereal products, sugar, milk powder, powder, coffee, tea, grain, flour, frozen foods - mixers, dryers, packaging machines, big bag filling and emptying, mills - potentially explosive atmospheres - screening machines, vibrating screening machines, tumbler screening machines, plansifters, air classifiers - bellows, expansion joints Properties: highly flexible - abrasion-resistant - vibration-resistant - food-safe wall in accordance with: EU Regulation 10/2011 and EC 1935/2004 and the latest EU Regulation 2015/174, FDA 21 CFR 177.2600 - odourless and tasteless - resistant to microbes and hydrolysis - good resistance to oil, petrol and chemicals - very good low-temperature flexibility - permanently antistatic wall: volume resistance and surface resistance Technical Data: - Physical state: Solid - Operating pressure: 0.205barFor commercial use, please observe the building regulations!
CHF 497.89
-

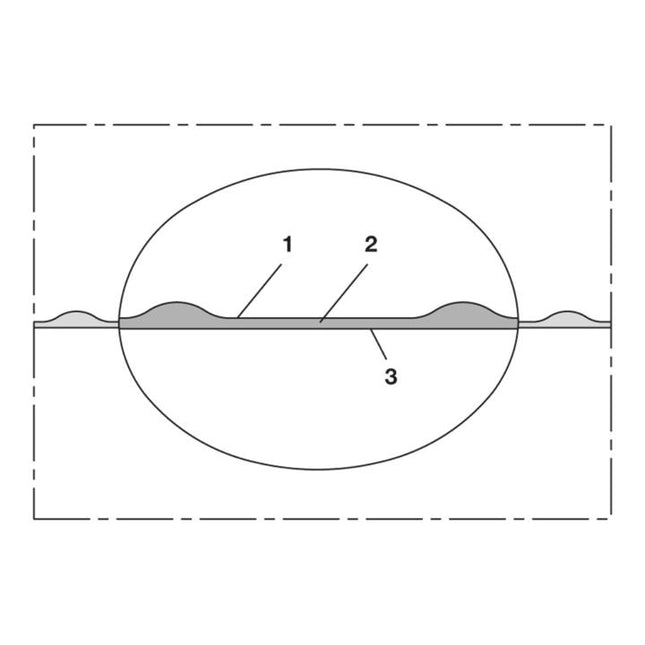

NORRES NORRES flat hose PROTAPE(R) PUR-C 335 FOOD-AS FLAT Inner-Ø 150-152 mm Outer-Ø 155.00 mm ( 4501401879 )
Wed, 09/24/2025
Scope of Delivery: - Flat hose PROTAPE® PUR-C 335 FOOD-AS FLAT Inner Ø 150-152 mm Outer Ø 155.00 mm Product Description: Screening machine hose and compensator, vibration-resistant Applications: Food industry, pharmaceutical industry: food, pharmaceuticals - conveying of e.g. rice, dry foods, cereal products, sugar, milk powder, powder, coffee, tea, grain, flour, frozen foods - mixers, dryers, packaging machines, big bag filling and emptying, mills - potentially explosive atmospheres - screening machines, vibrating screening machines, tumbler screening machines, plansifters, air classifiers - bellows, expansion joints Properties: highly flexible - abrasion-resistant - vibration-resistant - food-safe wall in accordance with: EU Regulation 10/2011 and EC 1935/2004 and the latest EU Regulation 2015/174, FDA 21 CFR 177.2600 - odourless and tasteless - resistant to microbes and hydrolysis - good resistance to oil, petrol and chemicals - very good low-temperature flexibility - permanently antistatic wall: volume resistance and surface resistance Technical Data: - Physical state: Solid - Operating pressure: 0.275barFor commercial use, please observe the building regulations!
CHF 365.40
-
NORRES NORRES AIRDUC(R) PUR 350 FOOD-AS suction and delivery hose inner Ø 120 mm ( 4501401128 )
Wed, 09/24/2025
Scope of Delivery: - AIRDUC® PUR 350 FOOD-AS suction and delivery hose Inner Ø 120 mm Product Description: Applications: flexible hose for abrasive powder, bulk material, granulate, gases, conveying of dry and frozen food and pharmaceuticals, mixer, dryer, packaging machine, big bag filling/emptying, mill, potentially explosive area, clean room ventilation, semiconductor manufacturing machine, paper industry: waste water, exhaust air, medical technology, healthcare: Cable protection, air and suction hose, municipal vehicle: lawn mower, embankment mower, leaf vacuum/leaf collector Properties: medium-weight design, highly abrasion-resistant, food-safe wall acc: FDA FCN 21 CFR 177.1680 and 177.2600, odourless and tasteless, resistant to microbes and hydrolysis, good resistance to oil, petrol and chemicals, very good low-temperature flexibility, wall permanently antistatic: volume resistance and surface resistance Construction: 1. Wall: permanently antistatic premium ether polyurethane (Pre-PUR ® ), 3. wall thickness approx. 0.7 mm Temperature range: -40 to 90 °C, briefly up to 125 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 80.00mm - Physical state: Solid / gaseous - OverpressureDIN 26057(50% elongation)(bar): 0.530 (1.17) - Negative pressureDIN 26057(axially fixed)(bar): 0.115 (0.46)For commercial use, please observe the building regulations!
CHF 309.16
-
NORRES NORRES PROTAPE(R) PE 322 EC suction and blower hose inner Ø 125-127 mm ( 4501400763 )
Wed, 09/24/2025
Scope of Delivery: - PROTAPE® PE 322 EC suction and blower hose Inner Ø 125-127 mm Product Description: Applications: flexible hose for gases and for dusts, powders, fibres, extraction arm, electroplating extraction, chemical industry: chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, hazardous area, mine, tunnel construction: ventilation, methane gas extraction Features: lightweight design, highly flexible + compressible, good alkali and acid resistance, extremely good chemical resistance, electrically conductive wall: Contact resistance and surface resistance Construction: 1. spring steel wire embedded in the wall, 2. wall: electrically conductive polyethylene (PE), 3. wall thickness approx. 0.4 mm Temperature range: -35 to +80 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 71.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
CHF 536.48
-
NORRES NORRES PROTAPE(R) PE 322 EC suction and blower hose inner Ø 100-102 mm ( 4501400762 )
Wed, 09/24/2025
Scope of Delivery: - PROTAPE® PE 322 EC suction and blower hose Inner Ø 100-102 mm Product Description: Applications: flexible hose for gases and for dusts, powders, fibres, extraction arm, electroplating extraction, chemical industry: chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, hazardous area, mine, tunnel construction: ventilation, methane gas extraction Features: lightweight design, highly flexible + compressible, good alkali and acid resistance, extremely good chemical resistance, electrically conductive wall: Contact resistance and surface resistance Construction: 1. spring steel wire embedded in the wall, 2. wall: electrically conductive polyethylene (PE), 3. wall thickness approx. 0.4 mm Temperature range: -35 to +80 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 58.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
CHF 445.18
-
NORRES NORRES PROTAPE(R) PE 322 EC suction and blower hose, inner Ø 80 mm ( 4501400761 )
Wed, 09/24/2025
Scope of Delivery: - PROTAPE® PE 322 EC suction and blower hose Inner Ø 80 mm Product Description: Applications: flexible hose for gases and for dusts, powders, fibres, extraction arm, electroplating extraction, chemical industry: chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, hazardous area, mine, tunnel construction: ventilation, methane gas extraction Features: lightweight design, highly flexible + compressible, good alkali and acid resistance, extremely good chemical resistance, electrically conductive wall: Contact resistance and surface resistance Construction: 1. spring steel wire embedded in the wall, 2. wall: electrically conductive polyethylene (PE), 3. wall thickness approx. 0.4 mm Temperature range: -35 to +80 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 48.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
CHF 401.25
-
NORRES NORRES PROTAPE(R) PE 322 EC suction and blower hose, inner Ø 60 mm ( 4501400760 )
Scope of Delivery: - PROTAPE® PE 322 EC suction and blower hose Inner Ø 60 mm Product Description: Applications: flexible hose for gases and for dusts, powders, fibres, extraction arm, electroplating extraction, chemical industry: chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, hazardous area, mine, tunnel construction: ventilation, methane gas extraction Features: lightweight design, highly flexible + compressible, good alkali and acid resistance, extremely good chemical resistance, electrically conductive wall: Contact resistance and surface resistance Construction: 1. spring steel wire embedded in the wall, 2. wall: electrically conductive polyethylene (PE), 3. wall thickness approx. 0.4 mm Temperature range: -35 to +80 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 38.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
-

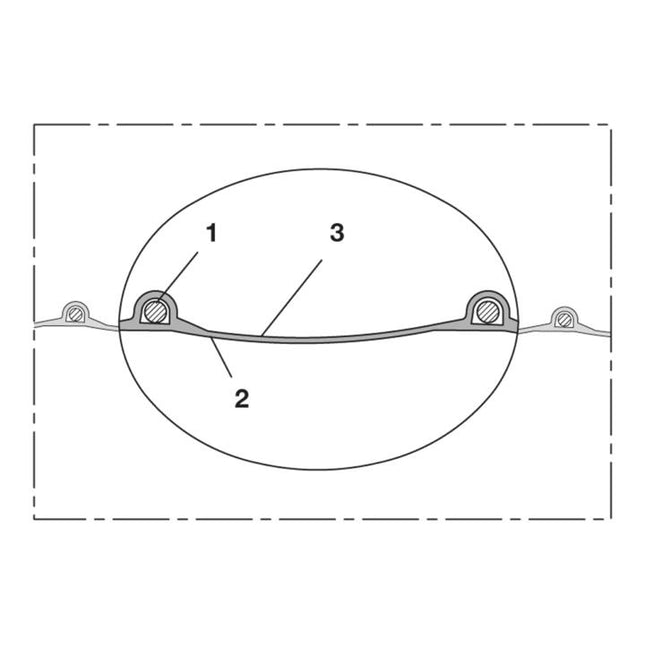

NORRES NORRES PROTAPE(R) PE 322 EC suction and blower hose inner Ø 50-51 mm ( 4501400759 )
Wed, 09/24/2025
Scope of Delivery: - PROTAPE® PE 322 EC suction and blower hose Inner Ø 50-51 mm Product Description: Applications: flexible hose for gases and for dusts, powders, fibres, extraction arm, electroplating extraction, chemical industry: chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, hazardous area, mine, tunnel construction: ventilation, methane gas extraction Features: lightweight design, highly flexible + compressible, good alkali and acid resistance, extremely good chemical resistance, electrically conductive wall: Contact resistance and surface resistance Construction: 1. spring steel wire embedded in the wall, 2. wall: electrically conductive polyethylene (PE), 3. wall thickness approx. 0.4 mm Temperature range: -35 to +80 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 33.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
CHF 318.60
-

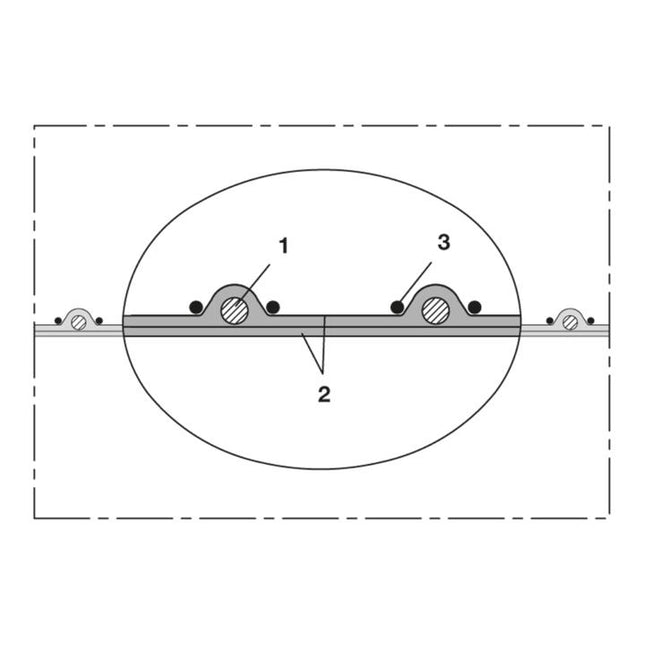

NORRES NORRES suction and blower hose SIL 391 TWO inner Ø 200-203 mm ( 4501400676 )
Wed, 09/24/2025
Scope of Delivery: - Suction and blower hose SIL 391 TWO inner Ø 200-203 mm Product Description: Applications: flexible hose for hot and cold gases, granulate dryer/plastic dryer, hot air dryer, film blowing system, cooling air at extrusion tool, cooling air: UV dryer, IR/infrared dryer, clean room ventilation, semiconductor manufacturing machine Properties: filament-reinforced, very good heat resistance, RoHS compliant Construction: 1. Spring steel wire embedded in the wall, 2. fabric-reinforced tape, wall: silicone-coated glass fabric, 3. cord as reinforcement Temperature range: -70°C to 260°C, briefly up to 280°C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 108.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
CHF 675.25
-
NORRES NORRES suction hose CP HiTex 480 inner Ø 100-102 mm ( 4501400465 )
Scope of Delivery: - Suction hose CP HiTex 480 inner Ø 100-102 mm Product Description: Applications: flexible hose for hot and cold gases, high-temperature extraction: Furnaces, foundries, blast furnaces, smelters, ceramics industry, glass industry, steelworks, aluminium smelters, dark radiators, ceiling heaters: Hot air ducting Properties: Scuff protection due to external clamping profile, tension-resistant clamping of the wall in the clamping profile, highly flexible + compressible 3:1, very good heat resistance, flame-retardant according to: DIN 4102-B1, RoHS compliant, very good against flying sparks and welding spatter Construction: 1. clamping profile support spiral: galvanised steel, 2. wall: specially coated glass fabric reinforced with stainless steel wires Temperature range: -60 °C to 400 °C, briefly up to 450 °C Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 51.00mm - Physical state: GaseousFor commercial use, please observe the building regulations!
-

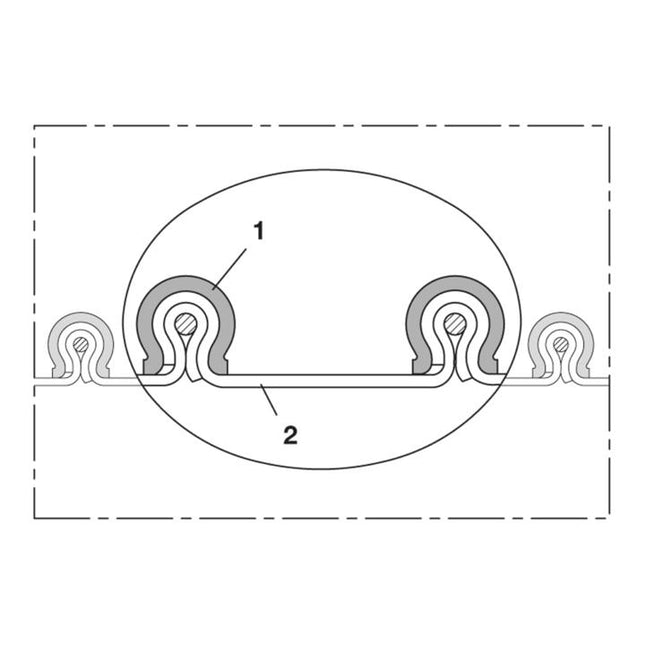

NORRES NORRES suction and blower hose (FDA) CP PTFE-INOX 475 FOOD inner Ø 300 mm ( 4501400451 )
Wed, 09/24/2025
Scope of Delivery: - Suction and blower hose (FDA) CP PTFE-INOX 475 FOOD Inner Ø 300 mm Product Description: Applications: flexible hose for hot and cold gases and for dusts, powders, fibres, food industry, pharmaceutical industry: food, pharmaceuticals, mixer, dryer, packaging machine, big bag filling and emptying, mill, extraction arm, chemical industry: Chemical vapours, vapour recovery hose on loading arm, paint vapours, paint mist extraction, paper mill, paper industry: dirty water, exhaust air Properties: abrasion protection due to outer clamping profile, tension-resistant clamping of the wall in the clamping profile, highly flexible + compressible 4:1, inner core food-safe in accordance with: EU Regulation 10/2011 and EC 1935/2004, wall food-safe according to: FDA 21 CFR 177.1550, odourless and tasteless, anti-adhesive, good alkali and acid resistance, extremely good chemical resistance, RoHS compliant, manufacturing process in accordance with GMP EC 2023/2006 Construction: 1. clamping profile support spiral: completely stainless steel (INOX), 2. wall: PTFE-coated glass fabric Temperature range: -150 ºC to +250 ºC (short +270 °C) Delivery variants: other versions, dimensions and lengths available on request Technical Data: - Bending radius: 68.00mm - Physical state: Solid / GaseousFor commercial use, please observe the building regulations!
CHF 1,007.74
